The undercarriage should now retract. If not, hold button I pressed in until the valve is triggered,
and the undercarriage retracts. Press the SET button to move on to the next stage of the procedure.

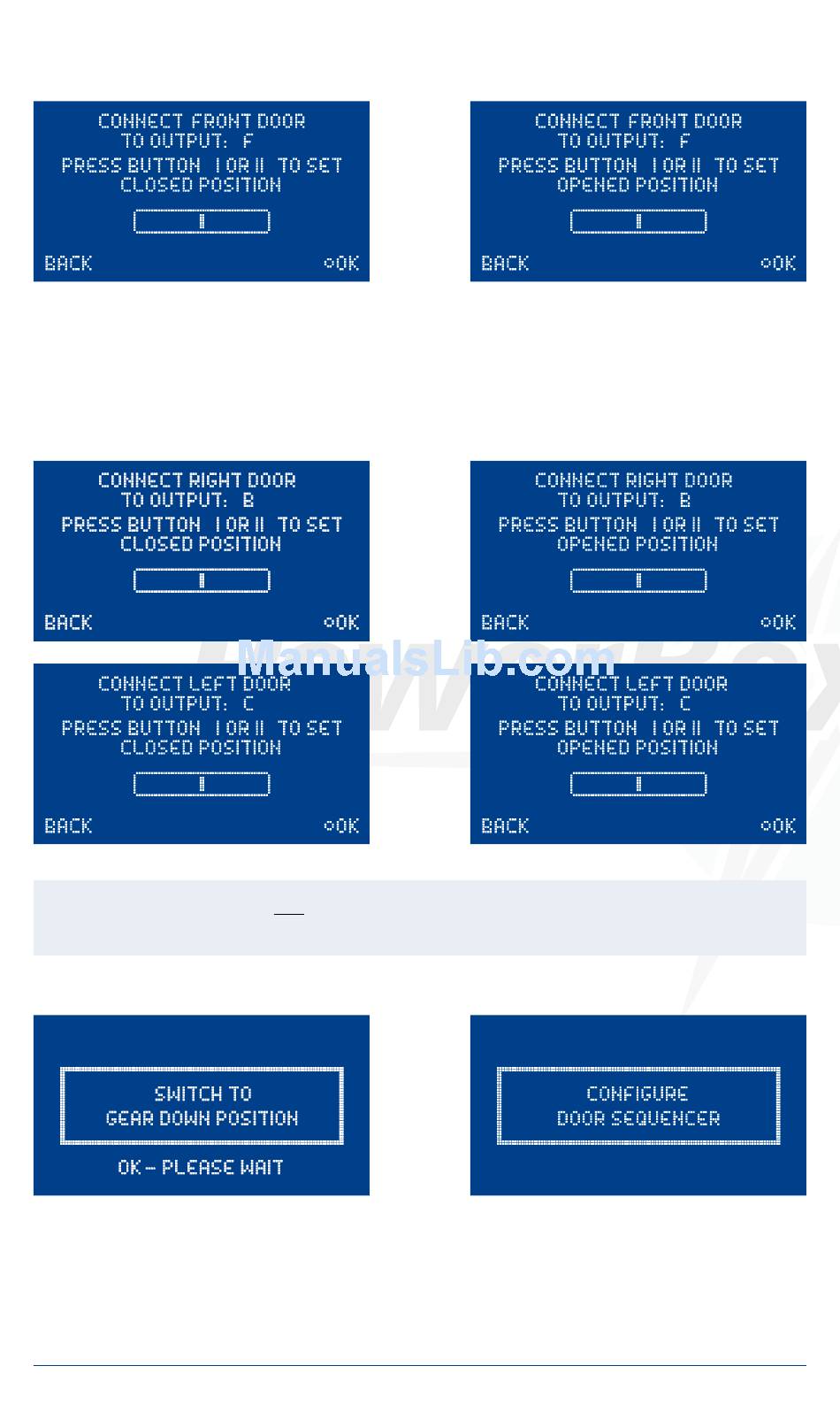

Connect the nosewheel door servo to output F. Press the SET button to close the nosewheel door;
repeat the procedure in the next set-up screen to open the door.
In the next series of steps the second nosewheel door and the rear wheel doors are set up. The
procedure is identical to that described for the nosewheel door. The servo for the right-hand wheel
door is connected to output B, that for the left-hand wheel door to output C.
Note: if you are only using one valve for all the wheel doors, you can by-pass the last four
points by selecting OK.
All the settings are now complete, and you will see one final safety query:
Move your transmitter switch to the "gear down" position. It will now take a few moments for the
Assistant to create the necessary tasks, and move the doors to the correct position without any
fouling or jamming.
The tasks created by the Assistant are described in detail under Point 9. If the timing (pauses,
opening times and closing times) is not exactly as you wish, you can change the settings manually
at any time. You will find further information on this matter in the FAQ section of our Forum.
