G) Using The Igyro Assistant - PowerBox Systems Royal SRS Instruction Manual

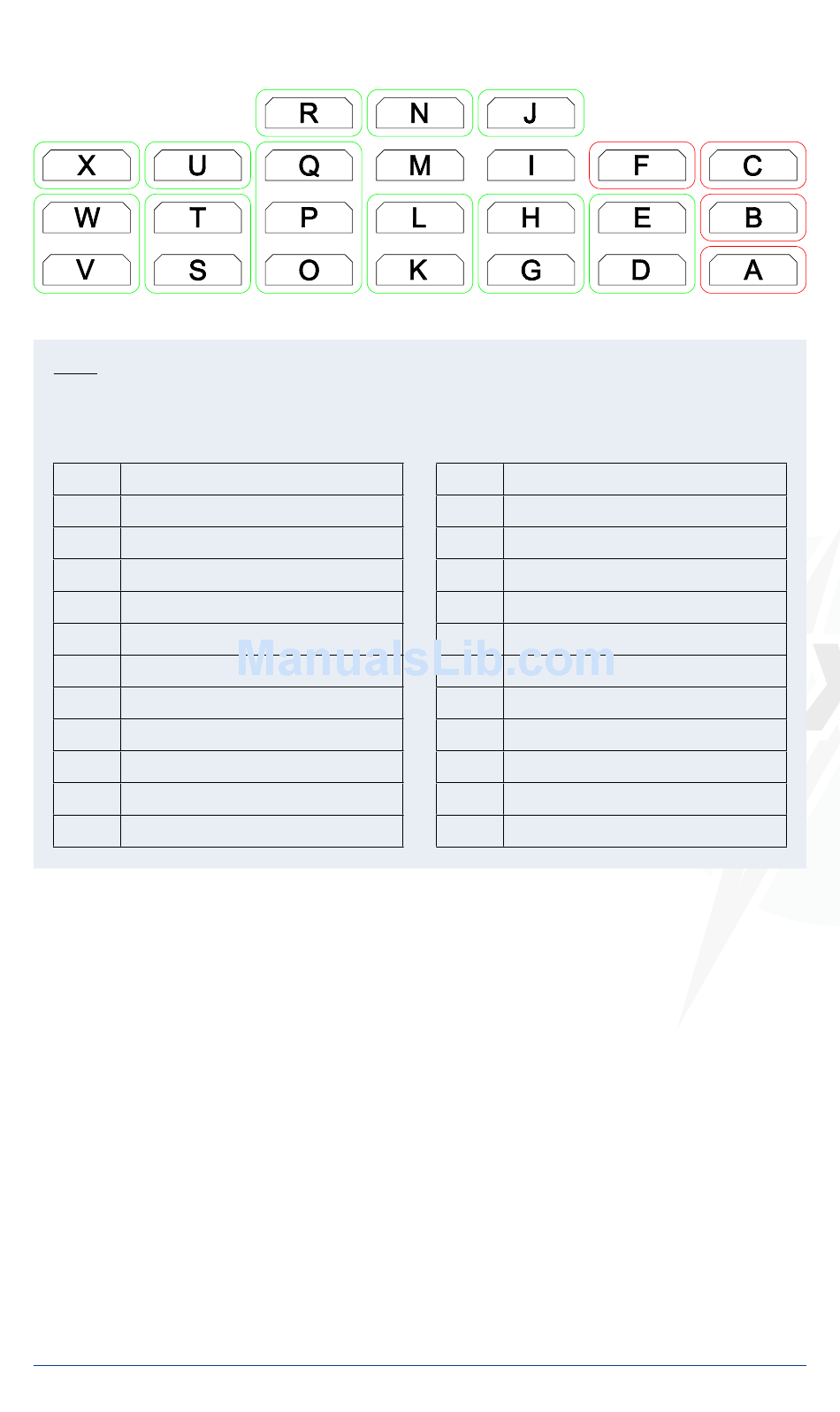

Default output assignments:
Note:
- After a Reset the fields outlined in green are assigned as shown below:
- Fields outlined in red are assigned as shown below, but only if the Sequencer Assistant has
been used:
A Direct 5 / VALVE sequencer
B R.H. wheel door
C L.H. wheel door
D Direct 8
E Direct 8
F Nosewheel door
G Gyro, right aileron (A)
H Gyro, right aileron (A)
I free
J Direct 9
K Gyro, right elevator (A)
L Gyro, right elevator (A)

g) Using the iGyro Assistant

With the help of the Setup Assistant you should be able to set up the integral iGyro in no more than
ten minutes. Once you have completed the basic settings, only a single flight is required in order to
carry out the fine-tuning.
Although the Assistant guides you through the procedure via the LCD screen, please take the time
to read right through these instructions, as they contain supplementary information which is im-
portant during the set-up procedure.
You will find a detailed description of the iGyro under Point 7.
The Assistant covers 99% of all model types, but its suitability for the following types is limited:
- Models with canard surfaces
- Models with thrust vectoring
The Assistant can be used to set up the primary functions for these types of model, i.e. aileron,
elevator and rudder, but the non-standard functions mentioned above have to be set up manually.
12
M free
N Direct 10
O Gyro, rudder (A)
P Gyro, rudder (A)
Q Gyro, rudder (A)
R Direct 11
S Gyro, left elevator (B)
T Gyro, left elevator (B)
U Direct 3
V Gyro, right aileron (B)
W Gyro, right aileron (B)
X Direct 1
