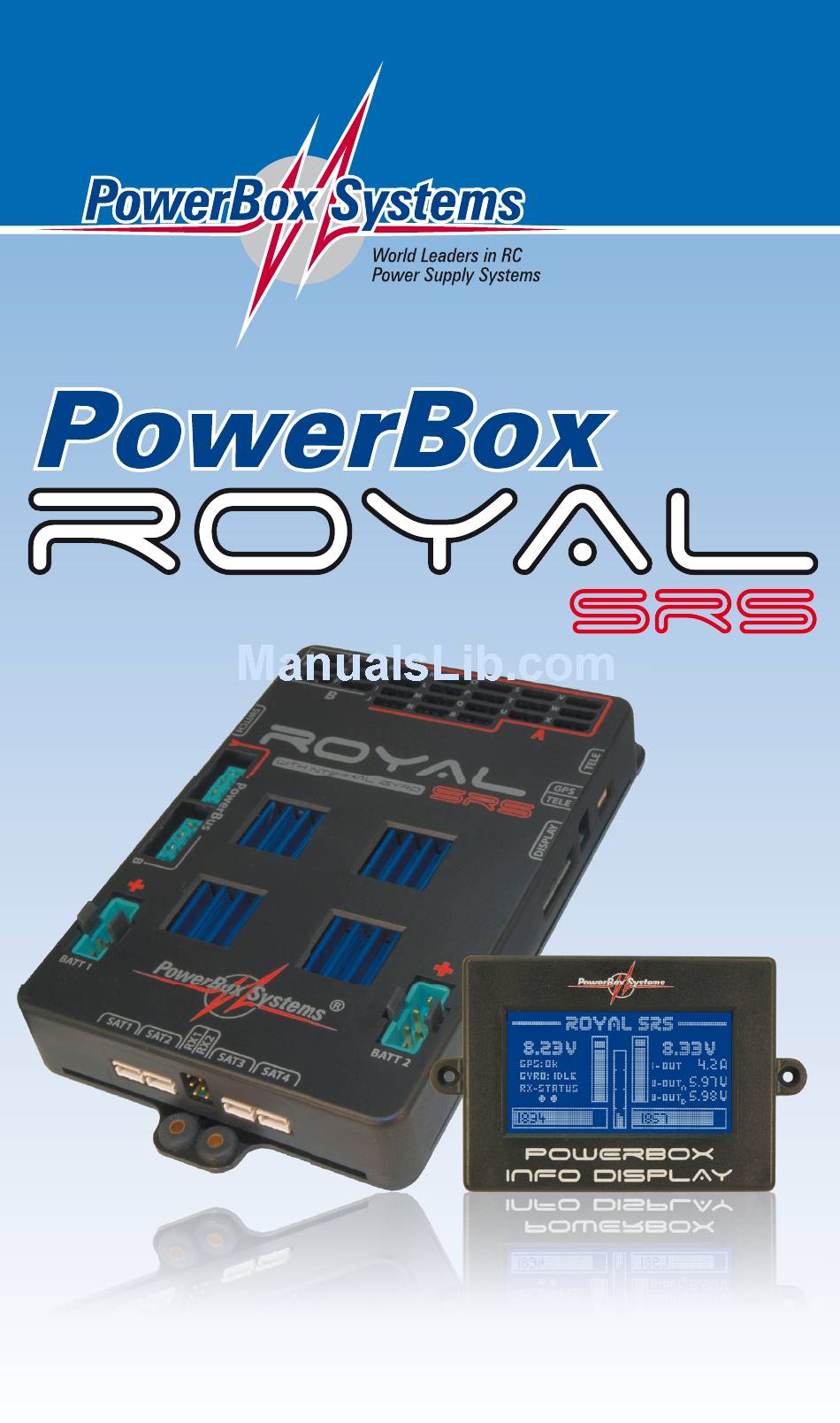

Page 1 Quickstart Guide ®...
Page 2 What’s the quickest method of installing and setting up the Royal SRS in a new model? These instructions describe the most effective sequence of operations. Details of the set-up procedure can be found in the main instructions. We also include a few tips which cover the most frequently asked questions.
Page 3 2. Selecting the radio control system The appropriate radio control system has to be selected In the RX/TX Settings menu. No servos should be connected to the PowerBox at this point. The receiver or receivers can now be connected to the backer, and bound to the transmitter.
Page 4 Examples: Setting up two aileron channels at the transmitter: For the right-hand aileron select GY AILERON A; by default the two outputs G and H are provided. For the left-hand aileron select GY AILERON B, and outputs V and W. If the model is fitted with multiple aileron servos per side, all of them should be assigned to GY AILERON A or GY AILERON B as appropriate.
Page 5 We recommend that you carry out several ‘dry runs’ on the ground in order to familiarise yourself with the sequence of operations. The Royal SRS is now fully set up, and we wish you great fun and success with the system!
Page 6 ® PowerBox-Systems GmbH certificated according to DIN EN ISO 9001:2008 Ludwig-Auer-Straße 5 D-86609 Donauwörth Germany Tel: +49-906-22 55 9 Fax: +49-906-22 45 9 info@PowerBox-Systems.com www.PowerBox-Systems.com...
