h) Using the Door Sequencer Assistant

The Setup Assistant significantly simplifies the set-up procedure for the door sequencer function.
The Setup Assistant is not a second door sequencer; instead its purpose is to define the Tasks in
the door sequencer to match your requirements, i.e. the information you enter. Because of this it
is also possible at any time to expand or alter the retract or wheel door functions after you have
completed the Setup Assistant procedure.
The Setup Assistant guides you through the settings: on-screen instructions describe everything
that you have to do. These instructions simply provide supplementary information which cannot be
supplied by the PowerBox itself simply due to the size of the screen.
Preparation:
- The radio control system is set up correctly, and all the other control surfaces move properly.
- Do not connect any servos or valves to the door sequencer at this point.
- Assign a transmitter switch to a vacant channel, and set up servo travel for that channel to the
standard range of -100% to +100%. If you are using a Futaba system, it is also possible to use DG1
or DG2.
- If you intend to use pneumatic valves, please ensure that there is adequate pressure in the system
throughout the programming procedure to avoid interruptions and other problems.

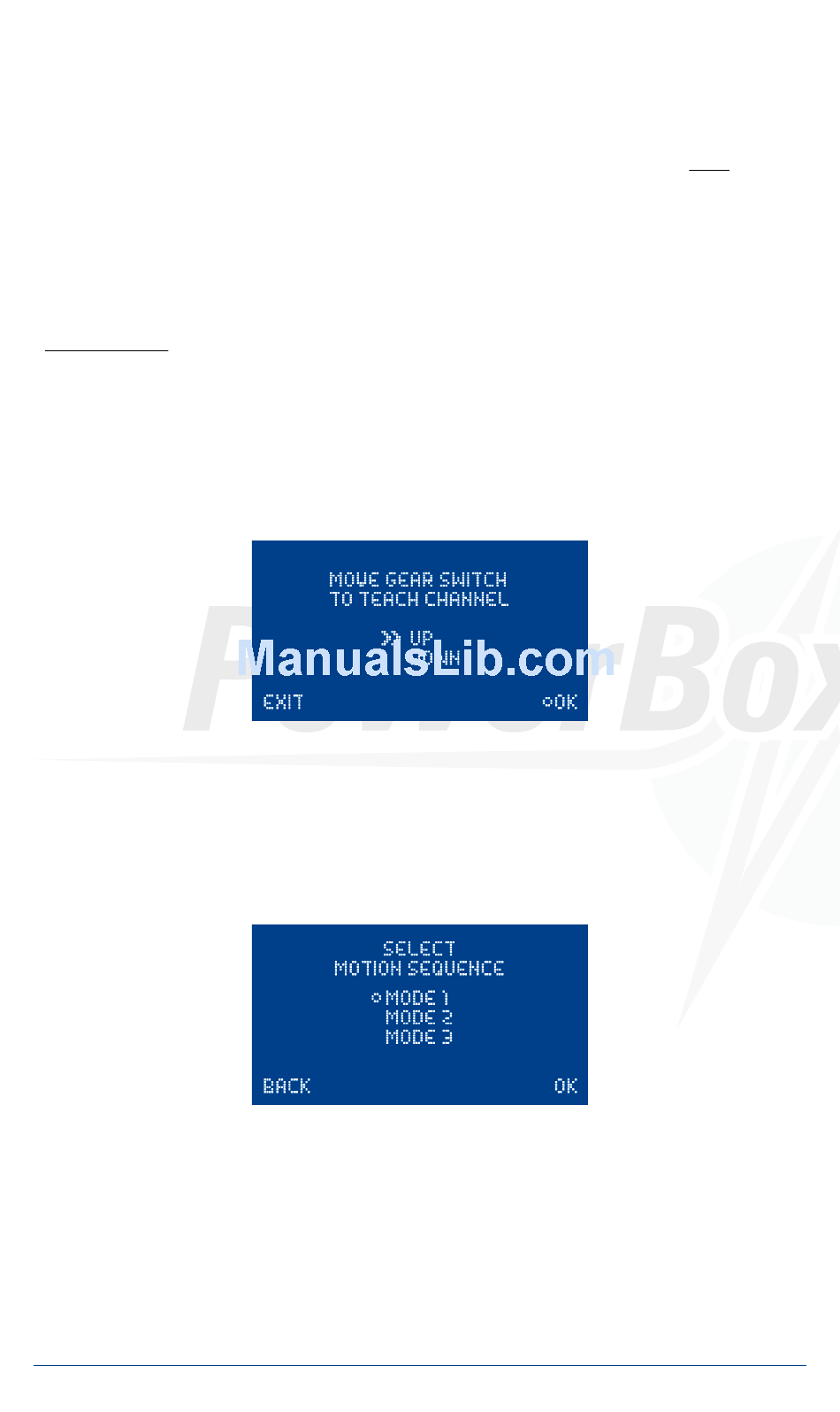

Access the PowerBox's Door Sequencer menu, and select the SETUP ASSISTANT point. You will
now see the following screen display:
At this point the Royal SRS learns which switch is to be used: the unit automatically detects the
appropriate channel when you operate the transmitter switch you have assigned for the retractable
undercarriage. The double arrow on the screen should move from the UP line to the DOWN line. If
your retract switch operates in the wrong "sense", change it by reversing that output at the trans-
mitter.
Press the SET button in order to continue with the Assistant; the next screen display now appears:
