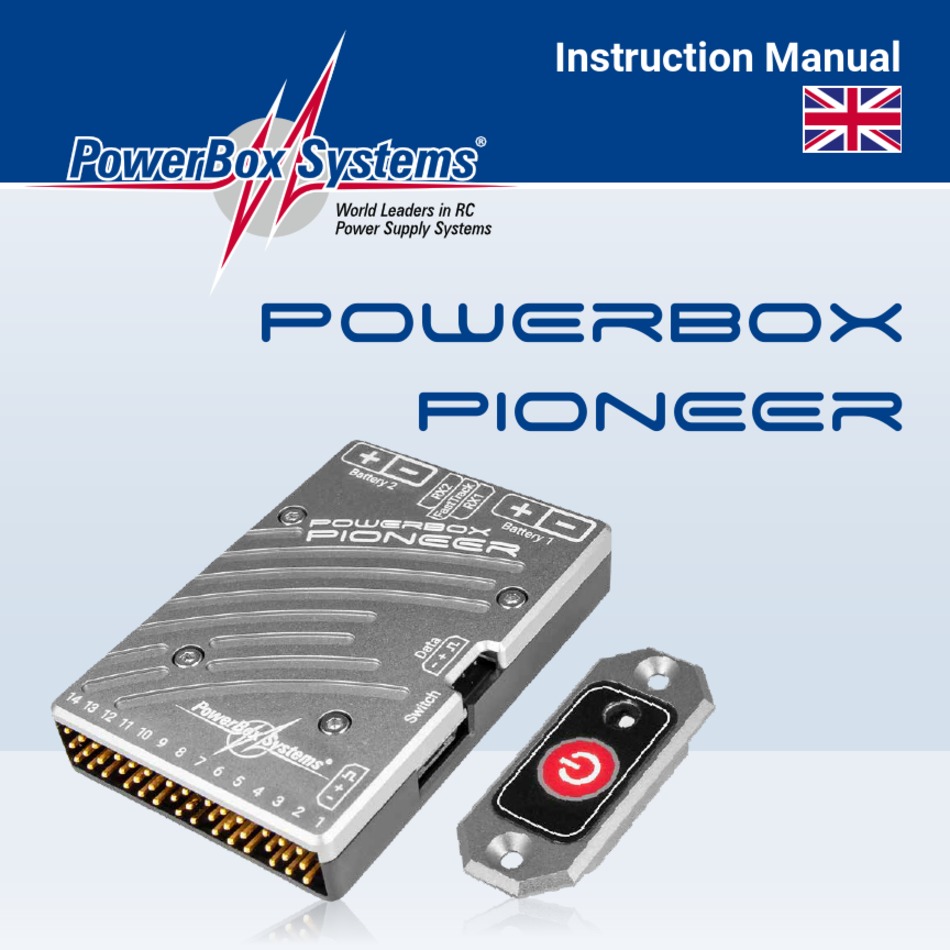

- Page 1 Instruction Manual PowErBox PionEEr...
- Page 2 Dear PowerBox customer, Congratulations on your decision to install a PowerBox Pioneer in your model. This unit is currently the most modern integrated power management system available anywhere in the model world. The Pioneer offers full telemetry capability in additi- on to a high-performance power supply featuring electronic switches.
- Page 3 basic system is Plug ‘n’ Play, and no further adjustments are required to operate it. This does not apply if an iGyro SAT is installed, or if you wish to change the frame rate or the capacity reset channel. Users of Core and Jeti systems have the facility to carry out all adjustments at the transmitter.
- Page 4 Plug the switch into the appropriate socket. As an option, the Pioneer is supplied with a button switch or a MicroMag magnetic switch. The method of operating the button switch is the same for all PowerBox systems: press the button until the LED starts to flash green at a high rate. Release the button for a moment, then press the button again briefly: the LED now lights up solid green to indicate that it is switched on.
- Page 5 In turbinepowered models the iGyro SAT should be located as far as possible from the engine in order to prevent turbine noise influencing the sensor. The lead attached to the iGyro SAT can be extended to any length. The iGyro SAT should be connected to the Pioneer’s FastTrack input.
-
Page 6: Basic Settings
2. BASIC SETTINGS If you are not using an iGyro with the PowerBox Pioneer, only a few settings have to be entered. You will find all the settings either in the transmitter menu (CORE, Jeti) or the Mobile App and the PC program. -
Page 7: Gyro Settings
d) Failsafe This menu is used to select an output which will move to a pre-defined servo po- sition if the radio signal is lost. Always use this function for Throttle. It is a legal requirement in many countries! Select the output you wish to use, and set the Failsafe mode to Failsafe. Pressing the Teach button stores the current servo positions for all outputs for which Fail- safe has been set. - Page 8 b) an already test-flown model - Assign the gyro outputs - Learn the installed position - Learn the centre and end-points - Adjust the iGyro in flight using the gain control - Fine-tune the individual axes if necessary - Store the established gain value on a switch As you can see, while you are carrying out basic adjustments to a new model, or test-flying a new model without the gyro, no adjustments of any kind are required at the iGyro SAT or the Pioneer.
-
Page 9: Menu Structure
4. MENU STRUCTURE General Settings Fine Tuning Input Mapping Gyro Setup Firmware Axis Selection CH Aileron A Teach Mounting Version Pos. Range Selection CH Aileron B Framerate Teach Stick Gain CH Aileron C Endpoints CH Reset Cap. Attitude Assist CH Elevator A Reset Gyro Characteristic CH Elevator B... - Page 10 5. DIMENSIONS PowerBox-Systems − World Leaders in RC Power Supply Systems...
-
Page 11: Guarantee Conditions
6. SERVICE We make every effort to provide a good service to our customers, and have now established a Support Forum which covers all queries relating to our products. This helps us considerably, as we no longer have to answer frequently asked questions again and again. -
Page 12: Service Address
Repairs which our Service department carries out for you do not extend the original guarantee period. The guarantee does not cover damage caused by incorrect usage, e.g. reverse polarity, excessive vibration, excessive voltage, damp, fuel, and short-circuits. The same applies to defects due to severe wear. We deny any further liability, e.g. -
Page 13: Liability Exclusion
For this reason we deny liability for loss, damage or costs which arise due to the use or operation of the PowerBox Pioneer, or which are connected with such use in any way. Regardless of the legal arguments employed, our obligation to pay dama- ges is limited to the invoice total of our products which were involved in the event, insofar as this is deemed legally permissible. - Page 14 07/2020 PowerBox-Systems GmbH certificated according to DIN EN ISO 9001 Ludwig-Auer-Straße 5 D-86609 Donauwoerth Germany +49-906-99 99 9-200 +49-906-99 99 9-209 www.powerbox-systems.com...
