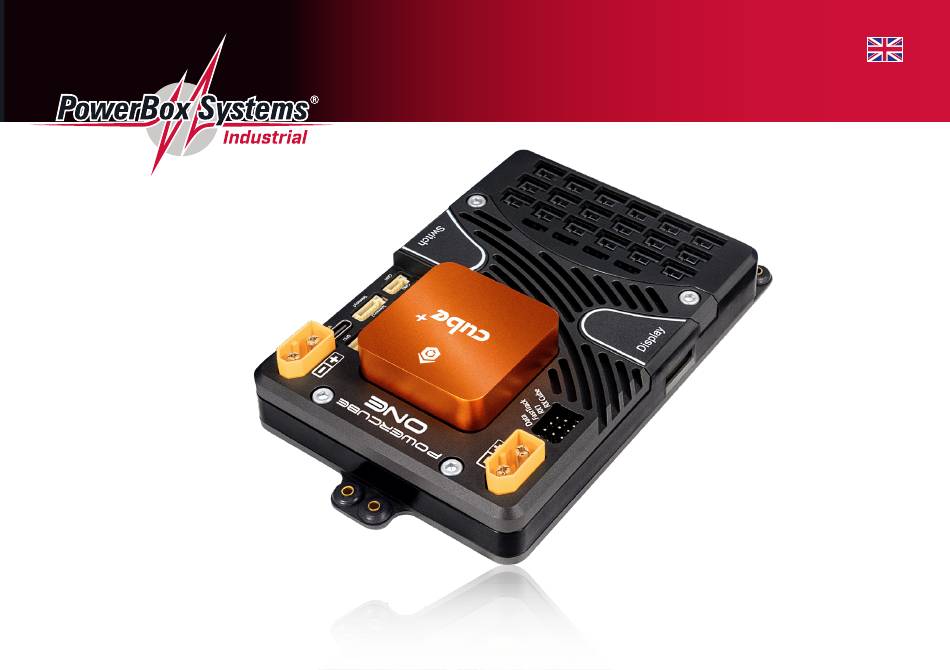

- Page 1 QUICK SETUP GUIDE POWERCUBE ONE POWERCUBE ONE...
- Page 2 PowerCube ONE. 1. Connect the Cube Pilot to the PowerCube ONE and use the 4 screws included with the package to secure it in place. 2. Power up the system with at least one battery. The power input works in a range of 6V to 35V.
- Page 3 Command: BATT2_MONITOR - Option: DroneCan-BatteryInfo b) CAN Parameter Command: CAN_P1_DRIVER - Option: First driver PowerBox-Systems Industrial...
- Page 4 c) BRD Parameter Command: BRD_SAFETY_DEFLT – Option 0: Disabled Command: BRD_SAFETYOPTION – Option 0 Command: BRD_SBUS_OUT – Option 3: 100Hz d) Write parameters After writing the parameters, the Cube will restart and more options are available for the BRD and CAN parameters. PowerBox-Systems Industrial...
- Page 5 e) BATT and BATT2 Parameters Command: BATT_SERIAL_NUM - Option: 0 Command: BATT2_ SERIAL_NUM - Option: 1 f) CAN Parameters Command: CAN_P1_FDBITRATE – Option 1: 1M PowerBox-Systems Industrial...
- Page 6 Command: CAN_LOGLEVEL – Option 1: Log Error g) Safe settings and restart the system PowerBox-Systems Industrial...
- Page 7 When the Cube has booted up again you will see the status message: Cube o.k. in the PowerBox monitor. This means that the servo data from the Cube is correctly received in the PowerCube ONE. In the Mission Planner, the battery data from the PowerCube ONE is found in the left lower corner. PowerBox-Systems Industrial...
- Page 8 Cube or using the RX1 input for bypassing the Cube Flight computer. You can see the internal signal path of the PowerCube ONE to understand how it works: For detailed receiver data like Fades, Lost frames and Holds you can use our Script. Open the Scripts tab:...
- Page 9 Select the Script from our download section PBS_MP_Script and execute it. You will see following screen: For technical questions you can contact us here: industrialsupport@powerbox-systems.com PowerBox-Systems Industrial...
- Page 10 11/2024 PowerBox-Systems GmbH Ludwig-Auer-Straße 5 86609 Donauwoerth Germany +49-906-99 99 9-200 sales@powerbox-systems.com www.powerbox-systems.com...
