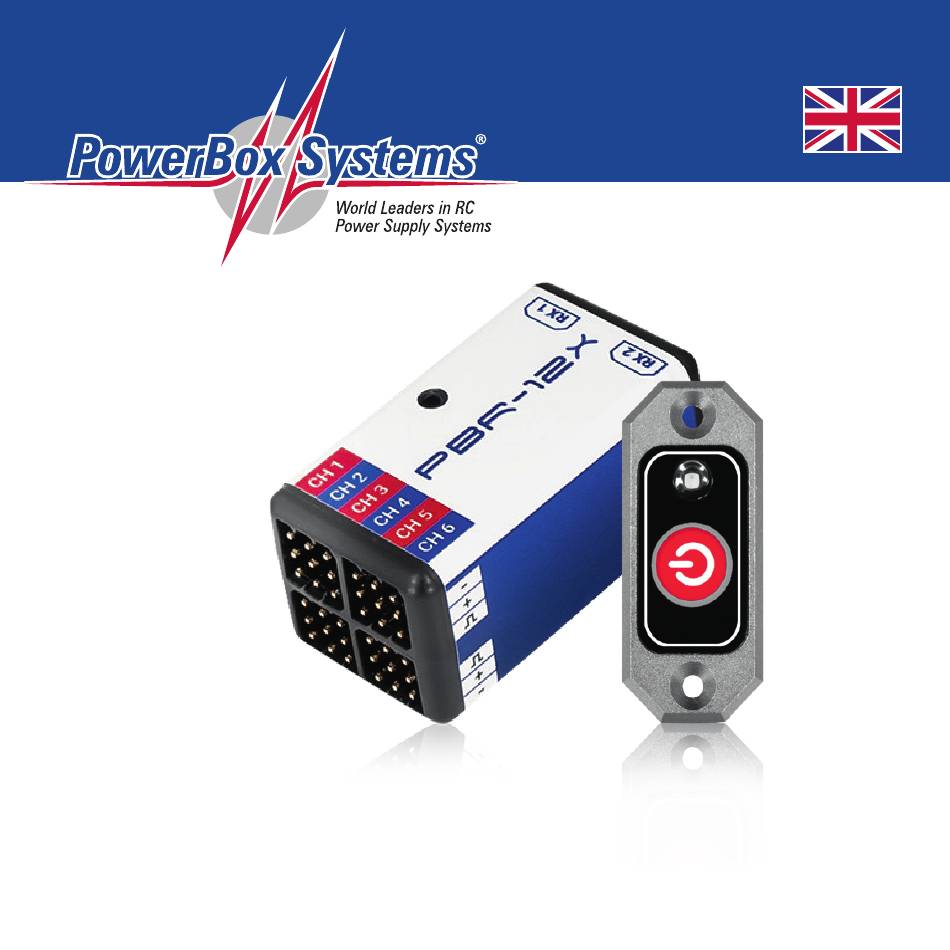

- Page 1 Instruction Manual PBr-12x...
- Page 2 The PBR-12X offers full telemetry capability in addition to its role as high-perfor- mance power supply system with electronic switch. We are confident that you will have great pleasure and success with your PBR-12X! 1.Installation, connections In order to minimise the unit’s dimensions, the case does not feature mounting lugs;...
- Page 3 Repeat the procedure to switch off. If you have a MicroMag switch, hold the magnet over the switch until the, PBR-12X switches on. The LED turns blue as soon as the switch registers a magnet. When the switching process is complete, the LED turns red.
- Page 4 If you wish to enter the fail-safe positions with a Futaba or Spektrum system, you must first bind RX1 to the transmitter; you can then start the Terminal-App on your PC. The PowerBox Terminal-App is available for downloading from our website. PowerBox and Jeti pilots have the facility to carry out all adjustments from the transmitter.
- Page 5 (CORE, ATOM, Jeti), in PC-Terminal or in Mobile-Terminal. To reach the menu with a PowerBox CORE/ATOM transmitter, set up any telemetry widget for the PBR-12X in the usual way-. You will then see the Menu button in the widget.
- Page 6 b) Capacity reset channel This function can be used to select the channel which resets the consumed capa- city; the default setting is channel 16. This channel resets the consumed capacity when the travel exceeds 100%. You can use a switch or a button for this, and reset the capacity value once the battery has been charged.
- Page 7 4. Meaning of the LED codes The integral LED indicates various states relating to the receivers. This enables you to ascertain whether the receivers are working properly. LED flashes slowly, No receiver connected, alternating red and blue RX2 in Terminal mode LED constant blue RX1 connected LED constant red...
- Page 8 5. Technical Data Operating voltage 4,0V - 9,0V Power supply 2S LiPo/LiIon, 2S LiFePo, 5S NiCd/NiMH Current drain, operating 25mA Current drain, standby 20µA Maximum current Continuous 12A (< 30s: 20A) Output voltage Unregulated Signal input Serial Supported RC systems CORE P²BUS, Jeti Ex-Bus, Spektrum SRXL2, Futaba S.BUS2, S.BUS Receiver redundancy...
- Page 9 6. Set contents - PowerBox PBR-12X - MicroSwitch - 2 x Patchleads - MR30 / MPX adapter - Self-adhesive pad - Operating instructions 7. Dimensions www.powerbox-systems.com...
- Page 10 They are guaranteed “Made in Germany”! That is why we are able to grant a 24 month guarantee on our PBR-12X from the initial date of purchase. The guarantee covers proven material faults, which will be corrected by us at no charge to you.
-
Page 11: Service Address
For this reason we deny liability for loss, damage or costs which arise due to the use or operation of the PBR-12X, or which are connected with such use in any way. Regardless of the legal arguments employed, our obligation to pay compensation is limited to the invoice total of our products which were involved in the event, inso- far as this is deemed legally permissible. - Page 12 02/2022 PowerBox-Systems GmbH Ludwig-Auer-Straße 5 86609 Donauwoerth Germany +49-906-99 99 9-200 +49-906-99 99 9-209 www.powerbox-systems.com...
