f) Channel assignment, output side

As already mentioned, the outputs of the PowerBox Royal SRS can be assigned in any way, without
restriction. This means that particular functions or channels can be assigned to any of the 24 out-
puts. The menu point where this is carried out is entitled OUTPUT MAPPING:

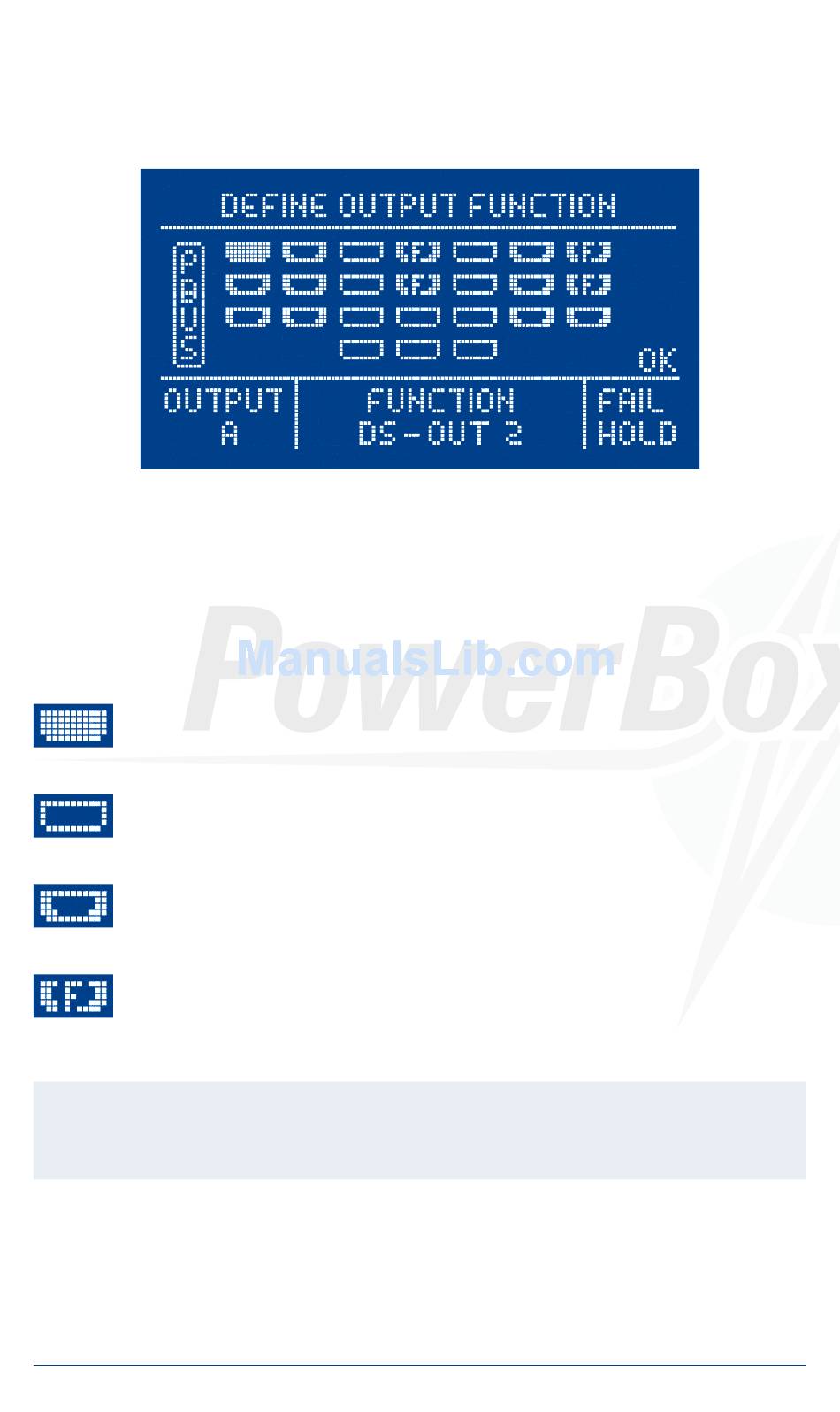

This menu displays a graphic image of the outputs. You can use the cursor to move through the
outputs in order to select the one you wish to assign. Pressing the SET button at a selected output
highlights the FUNCTION field, where you can select the signal to be assigned to this output. Pres-
sing the SET button again highlights the FAIL field, and pressing the SET button a third time causes
the cursor to move back to the Outputs field.
Key to the different displays for the outputs:
Cursor, or selected output
Free output, not yet assigned
Assigned channel, output switches to Hold when fail-safe is triggered
Assigned channel, output switches to saved fail-safe position when fail-safe is triggered
Note: Output Mapping provides enormous scope for individual arrangements. By default most
of the outputs are pre-defined, as this minimises the amount of set-up work that has to be
carried out. You will find a list of pre-defined outputs on the next page.
