Attach Tool-less Slide-Rail Assemblies
2.

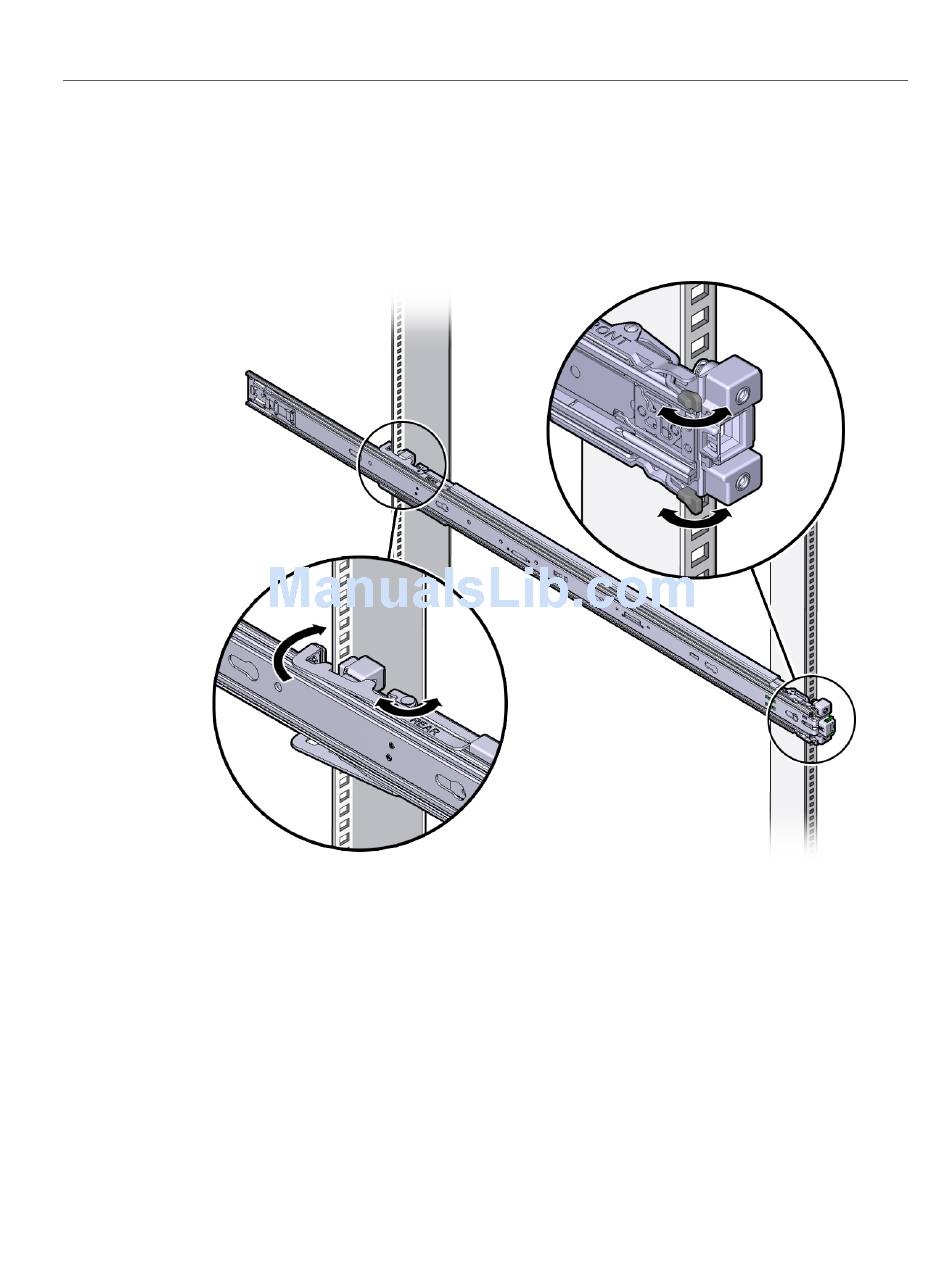

Starting with either the left or right side of the rack, align the rear of the slide-
rail assembly against the inside of the rear rack rail, and push until the assembly
locks into place with an audible click.
Align the front of the slide-rail assembly against the outside of the front rack rail,
3.
and push until the assembly locks into place with an audible click.
4.
Repeat
of the rack.
Related Information
"Install Mounting Brackets Onto the Server" on page 30
■
36
SPARC S7-2 Server Installation Guide • July 2016
Step 1
through
Step 3
to attach the slide-rail assembly to the other side
