FAS-220 PALLET TRANSFER MODULE
FUNCTION OF THE MODULE:
This modules allow transfer the pallets from one row of the system (conveyor
belts) to the next one so when the layout of the system can be a closed loop or
opened, but never in line.
User Manual for FAS200
FLEXIBLE ASSEMBLY SYSTEM FAS200

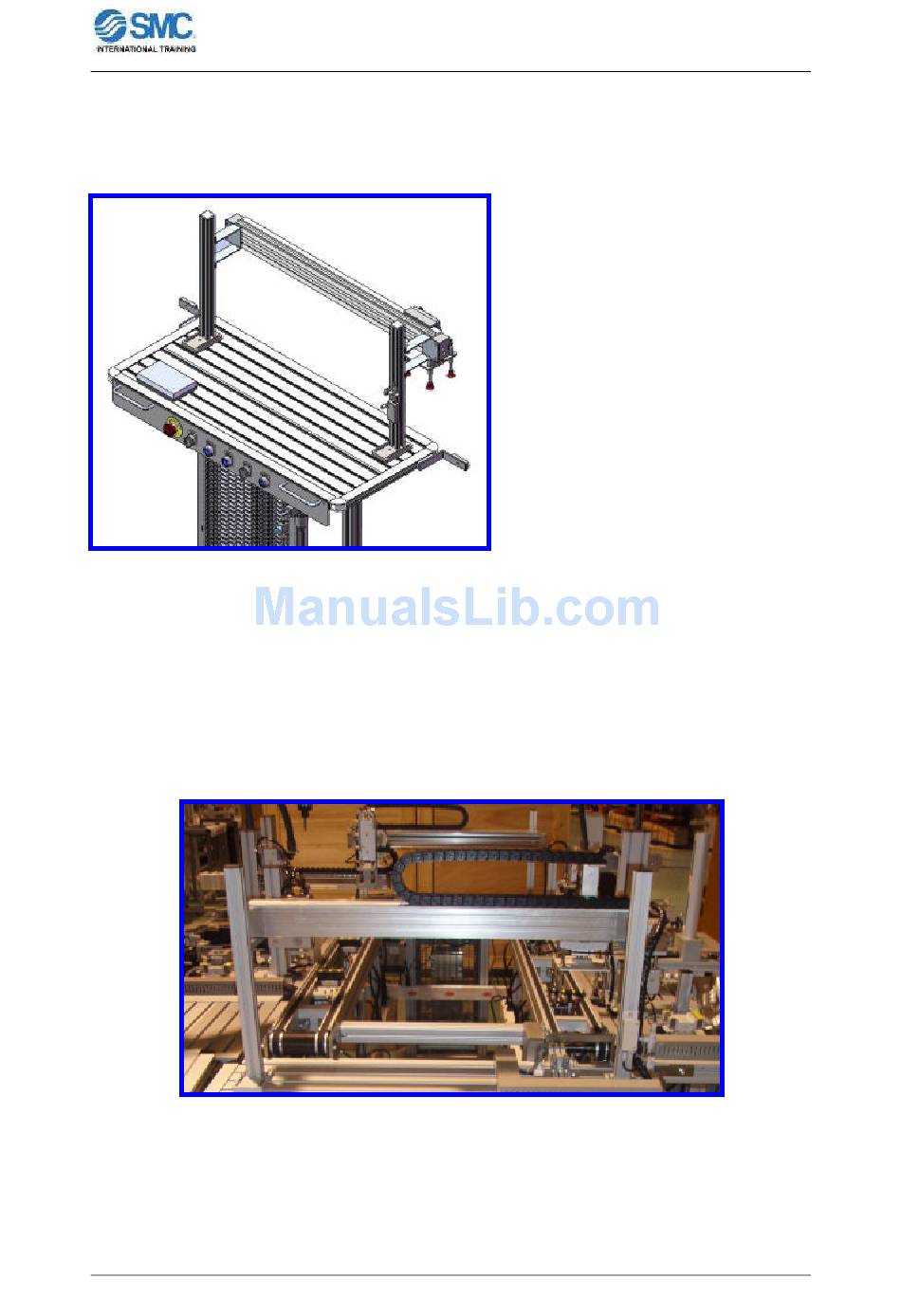

Figure 95: Manipulators of the pallet transfer module.
Figure 94: FAS220 Pallet Transfer
Module.
