This cylinder is used to transfer the screws from point at which they are fed in to
the point where the following module picks them up for fitting to the
assembly.
TECHNICAL DATA:
Dimensions:
Table of slotted aluminium, 450 x 600 mm. Height 900 mm.
Air treatment unit:
Filter to 5 µm, pressure regulator and pressure gauge.
Control panel:
Start, stop, reset pushbuttons. Emergency stop button, main switch on/off,
mode selector (auto-man), no material indicator and error pilot indicator.
Composition of module manipulators:
Screws feeder
Magazine capacity: 38 screws.
Actuators:
- 2 Double-acting cylinders Ø10, Stroke:10mm (CD85N10-10-B). Controlled
by 5/2 way monostable solenoid valve.
User Manual for FAS200
FLEXIBLE ASSEMBLY SYSTEM FAS200
In this case, there is a screws sensor in the form
of a photoelectric cell with fiber optic which
allows the PLC to verify that a screw really has
been extracted following the feeding procedure.
This makes it possible to determine when the
screws loaded in the feeder have run out.

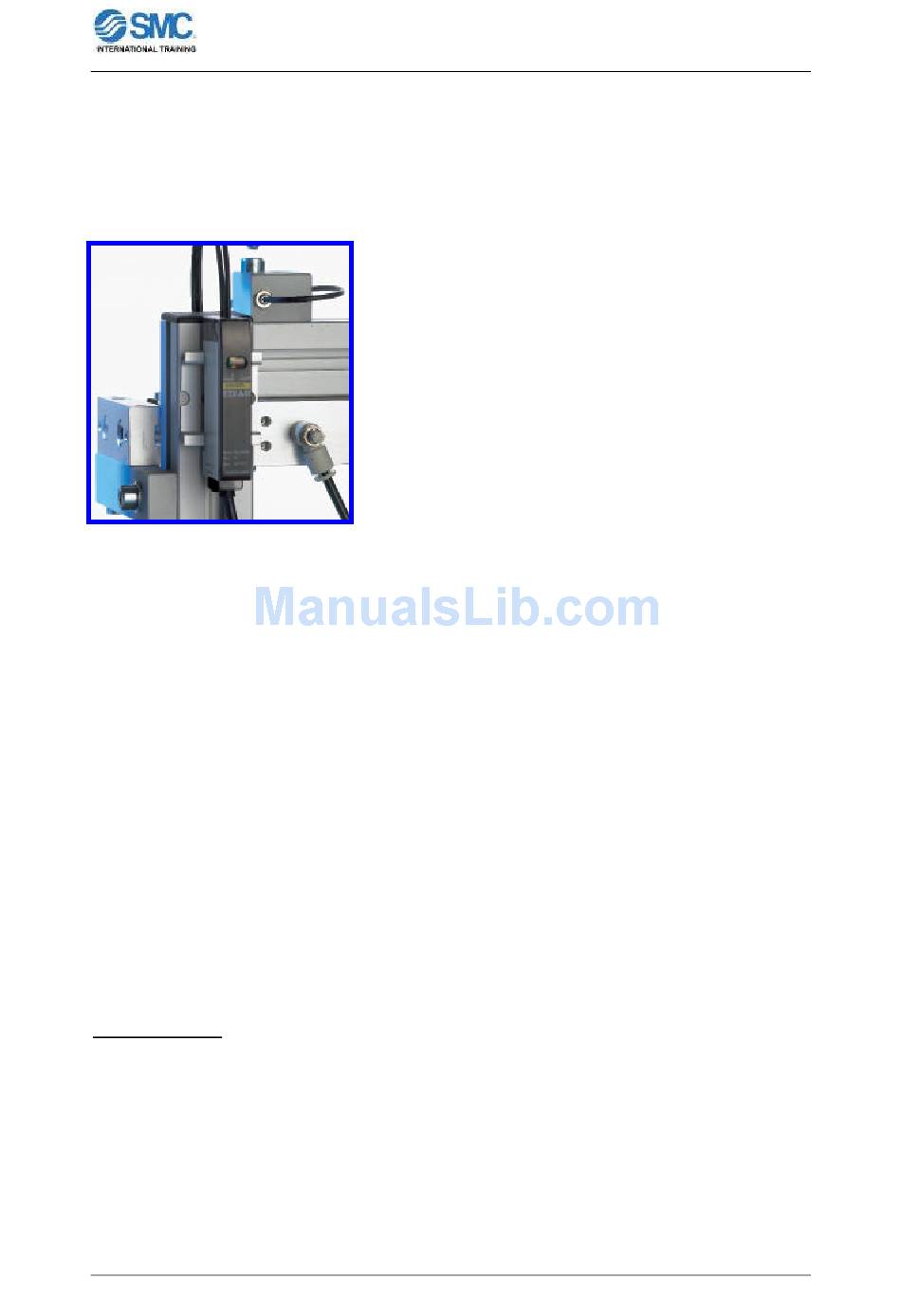

Figure 74: Photoelectric cell with fiber optic.
