FAS-203 BEARING FEEDING/TRANSFERING MODULE
FUNCTION OF THE MODULE:
This third module feeds the bearing
which is going to be placed inside the
housing formed in the body by the next
module. Also this module transfer the
bearing to the measurement position
located on the next module, where the
height is measured to differentiate
between the two sizes of bearings

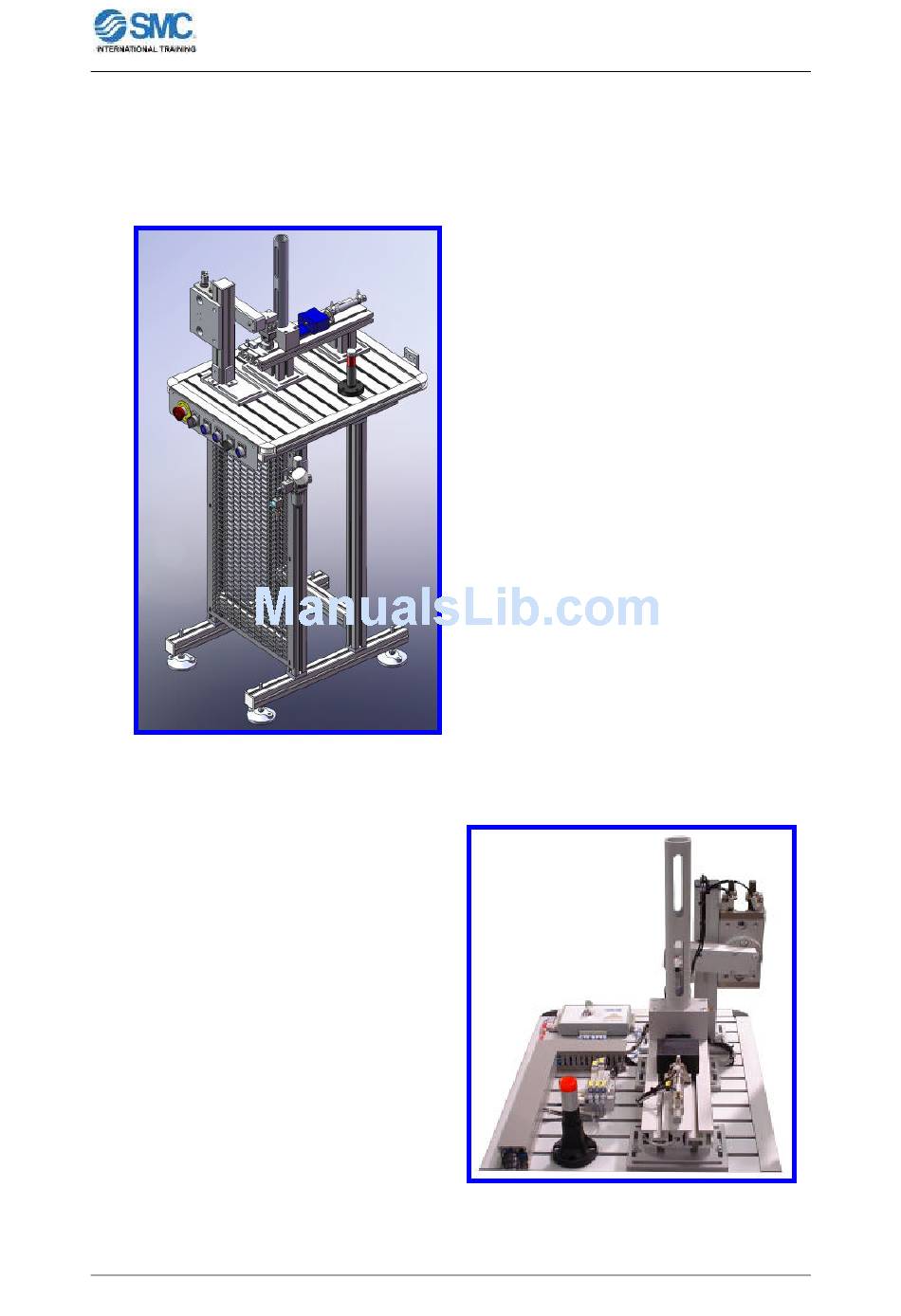

Figure 32: Manipulators of the third module.
User Manual for FAS200
FLEXIBLE ASSEMBLY SYSTEM FAS200
Figure 31: FAS203 Bearing
Feeding/Transfering Module.
