INTEGRAL PARTS
The storage module, like the others, may be divided into a series of
manipulators. Each sub-division has been made by considering it as a set of
components which performs a specific operation within the whole process
carried out at the module.

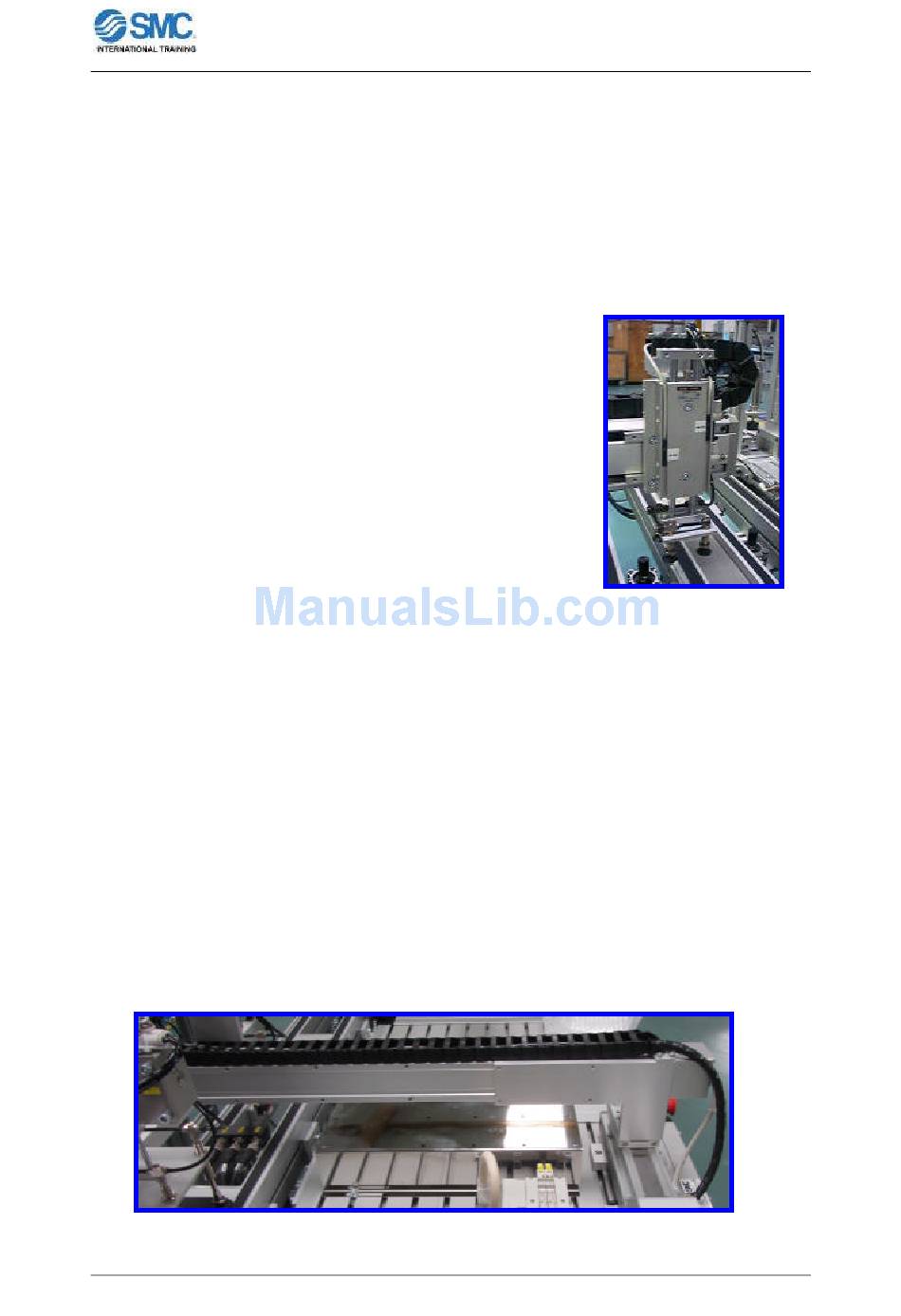

• Vertical axis:
The system of holding the components of turning
mechanism consists of parallel rod cylinder equipped
with a plate including four suction cups which to hold
the assembly until it is positioned at its storage point.
• Positioning axes:
The first operation consists of placing the vertical axis mentioned above over a
fixed pick-up point over the place where the pallet is stopped.
This operation is carried out by two shafts: one of them is a pneumatic actuator
and the other one is a positioning shaft driven by servomotor with absolute
encoder to provide instantaneous reading of motor rotation, achieving the
precise regulation of position and speed via their corresponding driver which set
up a closed loop position regulation system. This involves encoder feedback
and the position setpoint required at any particular moment supplied by the PLC
controlling the module.
User Manual for FAS200
FLEXIBLE ASSEMBLY SYSTEM FAS200
Figure 93: Positioning axes.
Figure 92: Vertical
axis.
- 88 -
