FLEXIBLE ASSEMBLY SYSTEM FAS200
FAS-211 SCREWS DISPENSING MODULE

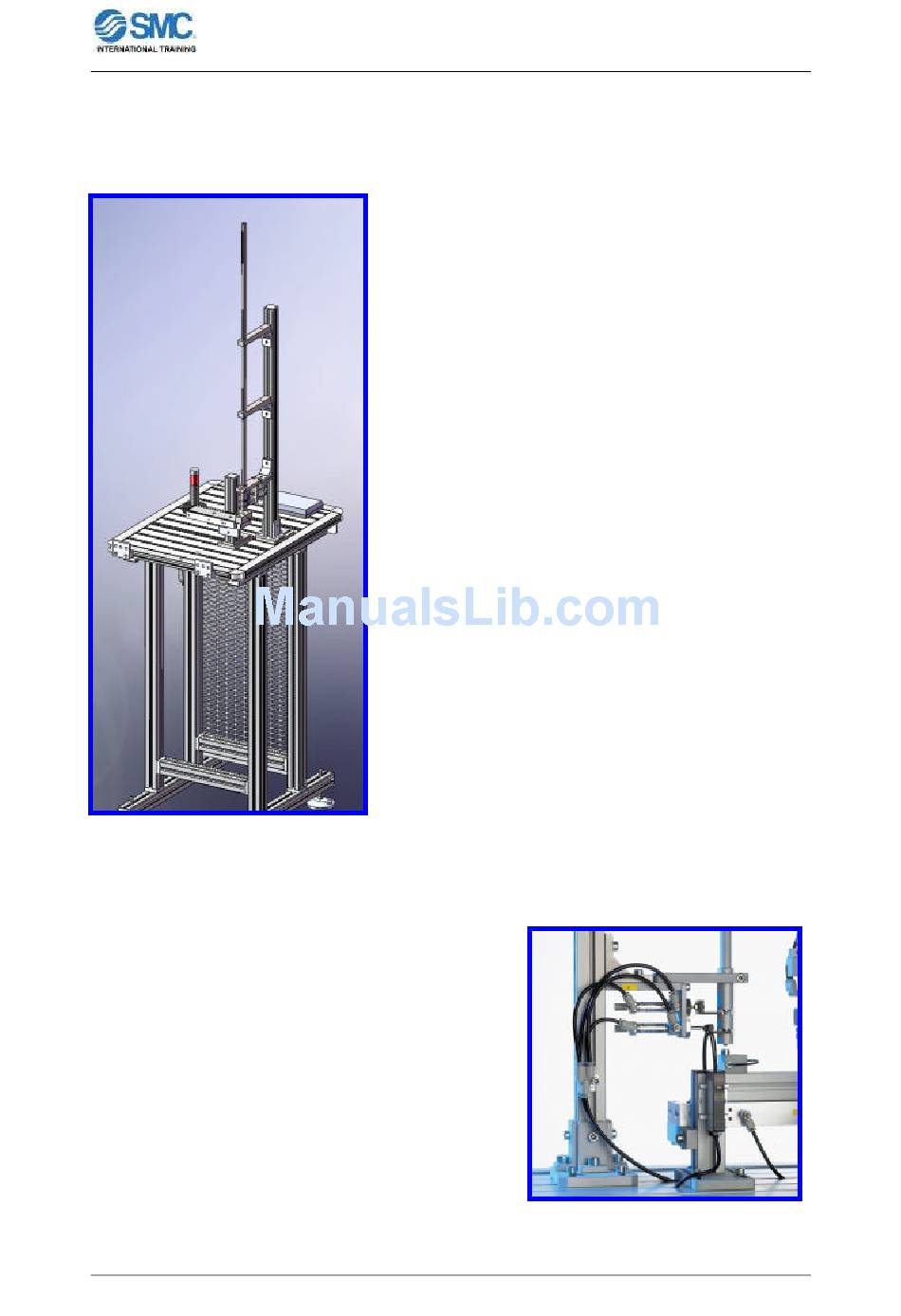

Figure 71: FAS211 Screws Dispensing Module.
FUNCTION OF THE MODULE:
Following insertion operations for the bearing,
shaft and cover performed by the preceding
modules, this eleventh module carries out the
task of feeding the screws that the next
module is going to insert them in the four holes
of the base (or body) for this purpose.
Figure 72: Manipulators of the eleventh module.
User Manual for FAS200 - 67 -
