FAS-202 BASE REJECTING/TRANSFERING MODULE

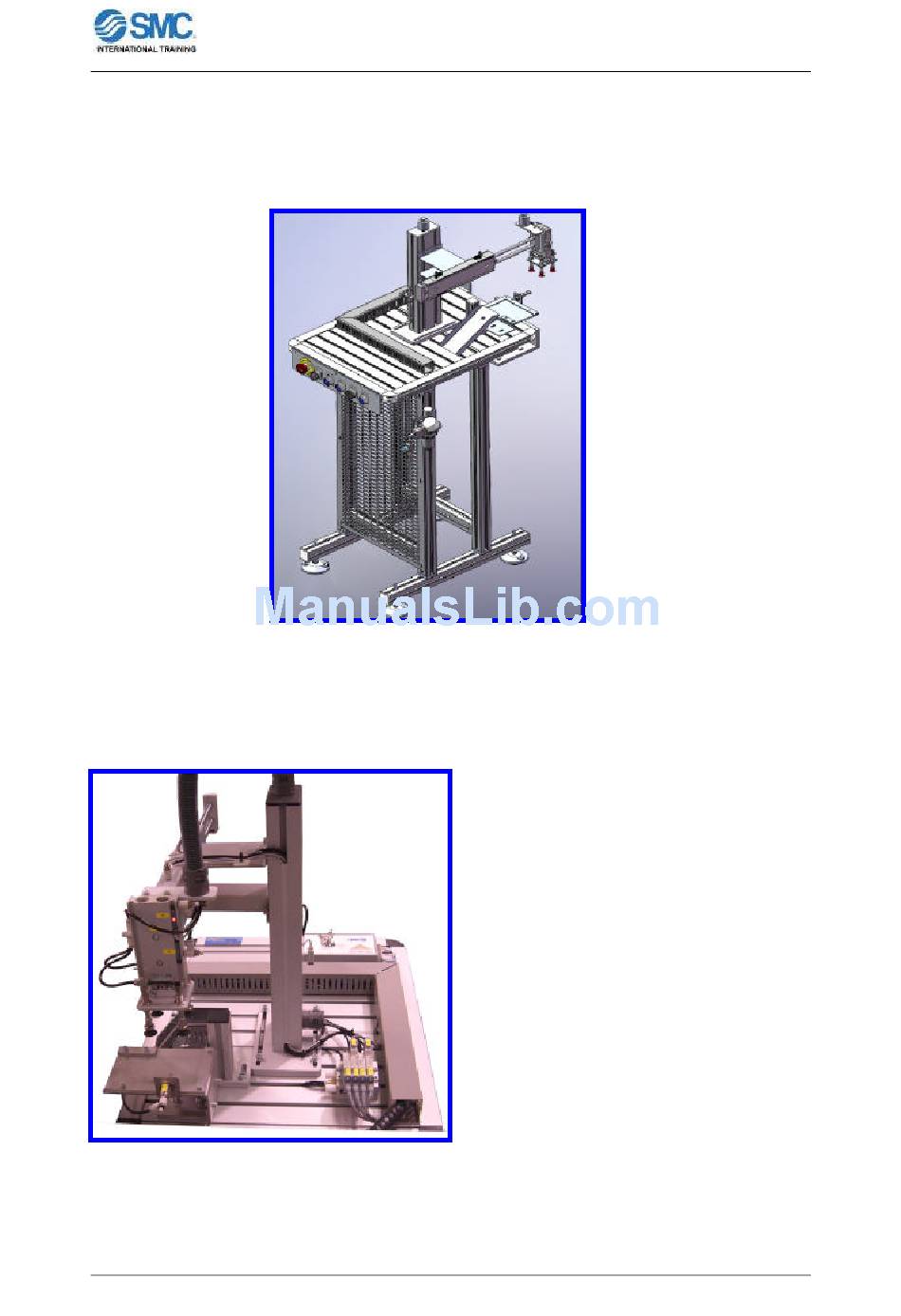

Figure 26: FAS202 Base Rejecting/Transfering Module.
FUNCTION OF THE MODULE:
User Manual for FAS200
FLEXIBLE ASSEMBLY SYSTEM FAS200
This second
complementary to previous one. This
module rejects of incorrect body or
places the body on the pallet,
depending of the signal "body OK"
from the PLC of the preceding
module after verification of the base
orientation.
Figure 27: Manipulators of the second
module.
