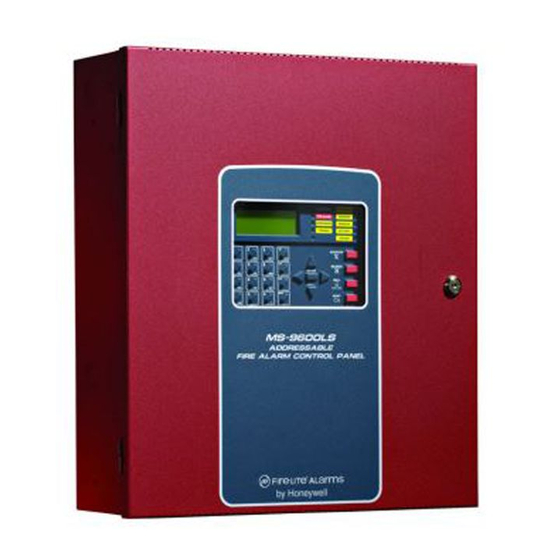

Fire-Lite MS-9600LS Manual

Fire-Lite MS-9600LS Manual

Addressable fire alarm control panel
Table of Contents

Advertisement

Addressable Fire Alarm Control Panel
MS-9600LS/MS-9600LSE
MS-9600UDLS/MS-9600UDLSE
MS-9600LSC
Manual
B8
Document 52646
11/20/2015
Rev:
P/N 52646:B8
ECN 15-642

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-9600LS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fire-Lite MS-9600LS

  • Page 1 Addressable Fire Alarm Control Panel MS-9600LS/MS-9600LSE MS-9600UDLS/MS-9600UDLSE MS-9600LSC Manual Document 52646 11/20/2015 Rev: P/N 52646:B8 ECN 15-642...
  • Page 2 Adequate written records of all inspections should be kept. (especially in bedrooms), smoking in bed, and violent explosions Limit-D-1-2013 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 3: Installation Precautions

    LiteSpeed™ and Lite-Connect™ are trademarks; and Fire-Lite® Alarms and SWIFT® are registered trademarks of Honeywell International Inc. Microsoft® and Windows® are registered trademarks of the Microsoft Corporation. Chrome™ and Google™ are trademarks of Google Inc.
  • Page 4 •Brief description of content you think should be improved or corrected •Your suggestion for how to correct/improve documentation Send email messages to: FireSystems.TechPubs@honeywell.com Please note this email address is for documentation feedback only. If you have any technical issues, please contact Technical Services. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 5: Table Of Contents

    2.6.1: DACT-UD2 Installation ........................36 2.6.2: 4XTMF Transmitter Module Installation ..................39 2.6.3: Auxiliary Trouble Input (J16 & J17)....................41 2.6.4: SLC-2LS Expander Module ......................41 2.6.5: Printer/PC ............................42 2.6.6: ANN-BUS Annunciators/Devices.....................44 ANN-BUS Wiring ..........................44 ANN-BUS Device Addressing......................47 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 6 Canadian Option ..........................100 Waterflow Silenceable........................101 MNS Override ............................101 3.6.6: Verify Loops ............................101 3.6.7: History .............................101 View Events............................102 Erase History ............................102 3.6.8: Walktest ............................102 3.6.9: Option Modules ..........................103 Annunciators............................104 On Board DACT..........................116 Printer/PC ............................116 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 7 4.21.4: Waterflow Retard Timer........................137 4.21.5: Alarm Verification.........................137 4.22: Walktest ..............................137 4.23: Read Status ..............................138 4.23.1: System Point ..........................138 4.23.2: Zones .............................139 4.23.3: Power .............................140 4.23.4: Trouble Reminder..........................140 4.23.5: Timers............................140 4.23.6: NAC...............................140 4.23.7: Relays ............................141 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 8 F.1.1: HVAC SHUTDN..........................170 F.2: Monitor Module Operation ........................170 F.2.1: HVAC RESTART ...........................170 F.2.2: HVAC OVRRIDE ...........................171 Appendix G: Canadian Applications................... 172 Index ............................174 MS-9600LS Series & MS-9600UDLS Series Fire Alarm Control Panels ......181 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 9 Units and Accessories for Fire Alarm Systems, 9th Edition. Operation of this product with products not tested for ANSI/UL 864, 9th Edition has not been evaluated. Such operation requires the approval of the local Authority Having Jurisdiction (AHJ). MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 10 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 11 240VAC AC DELAY AM-1 TENS 16 HR DELAY ADDRESS GND FLT DISABLE ONES J1 J2 J3 A- B- A+ B+ NC NO C CHG-75 Charger CHG-120F Charger Doc. # 51315 Doc. # 50888 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 12: Section 1: Product Description

    The MS-9600LSC is a ULC approved Canadian version of the FACP which offers the same fea- tures as the MS-9600LS, but is supplied standard with a DP-9692 dress panel. Refer to “Canadian Option” on page 100 for a full description.
  • Page 13 • ACM-8RF Relay Module • Silence inhibit timer option per NAC • Autosilence timer option per NAC • Continuous, March Time, Temporal or California code for main circuit board NACs with two- stage capability MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 14: Specifications

    1.3 Specifications AC Power - TB1 of Power Supply Board MS-9600LS(C) & MS-9600UDLS: 120 VAC, 50/60 Hz, 3.0 amps (L1=Hot, L2=Neutral) MS-9600LSE & MS-9600UDLSE: 240 VAC, 50 Hz, 1.5 amps (L1=Hot Leg 1, L2=Hot Leg 2) Wire size: minimum 14 AWG (2.00 mm...
  • Page 15 Terminal Mode annunciator connector, Terminal 5 (In +), 6 (In -), 7 (Out +), 8 (Out -) Supervised, power-limited. EIA-232 Serial - TB7 Local serial PC/Printer Connector, Terminal 1 (Transmit), 2 (Receive), 3 (DTR), 4 (Ground) Non-supervised, power-limited. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 16: 1: Current Availability

    LED backlight will turn off to conserve batteries. LED Indicators LED indicators are provided to annunciate the following conditions: • AC Power (green) • Fire Alarm (red) • Supervisory (yellow) • Trouble (yellow) • Maintenance/presignal (yellow) MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 17: Circuits

    • 24 VDC Resettable (smoke detector power) output - 1.5 amps maximum • 24 VDC Nonresettable power output #1 - 1.5 amps maximum • 24 VDC Nonresettable power output #2 - 1.5 amps maximum • 24 VDC Battery Charger (up to 26 AH batteries) MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 18: Components

    18 Amp Hour). Batteries larger than 18 Amp Hour up to 26 Amp Hour require use of the BB-26 or similar UL listed battery cabinet. The CHG-75 can be used for charging 26 to 75 AH batteries and MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 19: 1: Intelligent Addressable Detectors: Newer Series

    1.6.3 300 Series Intelligent Addressable Devices Fire•Lite’s 300 Series Intelligent Addressable Devices are fully compatible with the MS-9600LS FACP. The FACP must be configured for CLIP Mode operation if the control panel is installed in an existing system with 300 Series devices. The address of 300 Series devices cannot be set above 99.
  • Page 20: Optional Modules

    MS-9600UDLS for local connection of the PC to the USB port J4 on the DACT-UD2. The MS-9600LS requires connection to the Serial Port on FACP con- nector TB7. Remote programming requires that the PC have a 2400 baud or faster modem.
  • Page 21: 2: Dress Panel: Dp-9692

    1.8.5 Battery Charger CHG-75 Battery Charger The CHG-75 is capable of charging up to 75 AH lead-acid batteries with the MS-9600LS FACP. The FACP battery charger must be disabled when using the CHG-75. The charger and up to 26 AH batteries can be housed in the BB-26 battery box.
  • Page 22: 6: Ecc-50/100

    The W-GATE Wireless Gateway acts as a bridge between a group of wireless fire devices and a LiteSpeed SLC loop on the MS-9600LS. It is powered by the SLC loop or by a regulated, external 24VDC UL-listed power supply. Available wireless devices include a photo detector, a photo/heat detector, a fixed-temperature heat detector, a rate-of-rise heat detector, and a monitor module.
  • Page 23: Ann-S/Pg Serial/Parallel Interface Installation

    AEM-16ATF - Annunciator Expander Module annunciates 16 zones with 16 red alarm LEDs and 16 yellow trouble LEDs. *In Canada, this module must be used to annunciate the fire alarm input points/zones only. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 24: Getting Started

    The LDM Series Lamp Driver Modules, which consist of the LDM-32F master and LDM-E32F expander modules, are used to provide an interface to a custom graphic LED annunciator. 1.9 Getting Started The following is a brief summary of the minimal steps involved in bringing an MS-9600LS/MS- 9600UDLS on-line: •...
  • Page 25 Notes MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 26: Section 2: Installation

    • Secure the chassis to the mounting studs with the supplied nuts. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 27 (refer to mounting slots “AC Power and Earth Ground Connection” on FACP Backbox page 30) Figure 2.1 FACP Main Circuit Board Installation MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 28 16.00“ (40.64 cm) 2.00“ 5.207“ 4.128 cm 13.23 cm Hinge Slot for optional Dress Panel 4.535“ 13.23 cm 5.207“ 11.52 cm 1.00“ (2.54 cm) 1.30“ 3.30 cm Figure 2.2 FACP Cabinet Mounting MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 29 Door = 16.821" (42.73 cm) 5.325" Backbox = 16.65" (42.29 cm) (13.526 cm) Door = 19.26" (48.92 cm) Backbox = 19.0" (48.26 cm) Left Side Right Side Bottom Figure 2.3 FACP Cabinet Dimensions MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 30: Power

    2.2.1 AC Power and Earth Ground Connection Primary power required for the FACP is 120 VAC, 60 Hz, 3.0 amps for the MS-9600LS(C) and MS-9600UDLS or 240 VAC, 50 Hz, 1.5 amps 120 VAC for the MS-9600LSE and MS-9600UDLSE. Overcurrent protection for...
  • Page 31: 3: Special Application Dc Power Output Connection

    VDC notification appliances only. Circuits are supervised and power-limited. Refer to the Device Compatibility Document for a listing of compatible notification appliances. The NACs, which are located on the main circuit board, may be expanded via the FCPS Series field charger/power sup- plies. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 32: 1: Configuring Nacs

    JP8. This will allow room NACKEY card slot for the 4XTMF module. 4XTMF OPT BD 4XTMF Module connectors connectors for 4XTMF option module Figure 2.6 NAC Configuration Using NACKEY MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 33: 2: Style Y (Class B) Nac Wiring

    Circuits, supervised and power-limited Polarized Bell Polarized Bell Polarized Strobe Polarized Strobe Polarized Horn Polarized Horn Notification Appliance Circuit polarity shown in alarm state NAC 1 NAC 2 Figure 2.8 NAC Style Z (Class A) Wiring MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 34: Power-Limited Wiring Requirements

    A typical wiring diagram for the FACP is shown below. 4XTMF SLC-2LS Figure 2.9 Typical Power-limited Wiring Requirements MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 35: Optional Modules And Devices

    NOTE: When installing the DACT-UD2, the main motherboard must be removed from the chassis. Unplug the power supply cable from J1 before proceeding. Keypad/Display Mounting Screw Access Hole screw standoff standoff screw screw screw screw screw Keypad/Display Mounting Screw Access Holes Figure 2.10 Keypad/Display Removal MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 36: 1: Dact-Ud2 Installation

    The DACT-UD2 module plugs into connector J2 on the FACP main circuit board. Primary Phone Line Secondary Phone Line J5 Connector (located on back of module) plugs into J2 on FACP main circuit board USB Port Figure 2.11 DACT-UD2 Module MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 37 Secure the module to the standoffs on the main circuit board with two of the screws supplied with the DACT-UD2 and the supplied male/female standoff which becomes the new Keypad/Display support in that location ( see Figure 2.13) NOTE: It is important that the supplied hardware be used to secure the module in order to help protect against electrical transients. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 38 11. Refer to the Telephone Requirement and Warnings section of the DACT-UD2 Installation and Programming Manual Document #53037, before proceeding with this step. Connect the premises primary and secondary phone lines to the DACT-UD2 as illustrated in Figure 2.14 and test the system for correct operation MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 39: 2: 4Xtmf Transmitter Module Installation

    Trip Current: 350 mA (subtracted from notification appliance power) Coil Voltage: 3.65 VDC Maximum Coil Resistance: 14.6 ohms Maximum allowable wire resistance between panel and trip coil: 3 ohms Municipal Box wiring can leave the building MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 40 Reapply power to the FACP For proper 4XTMF operation, the output relays must be programmed for the factory default settings as shown on the PC board silkscreen: Alarm Relay, Trouble Relay and Supervisory Relay MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 41: 3: Auxiliary Trouble Input (J16 & J17)

    Remove all power (AC and DC) from the FACP before installing the SLC-2LS module Remove four screws from main FACP motherboard, from locations indicated in following illustration, and replace with four supplied metal standoffs MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 42: 5: Printer/Pc

    Carefully plug connector J3 on the SLC-2LS module into connector J3 on the MS-9600LS/MS-9600UDLS main circuit board, being careful not to bend any pins Secure the SLC-2LS Expander Module to the four standoffs installed in step 2 with the four supplied screws (or the screws removed in step 2) Connect the SLC wiring and devices to TB8 on the SLC Expander Module.
  • Page 43 DATA BITS: PARITY: EVEN STOP BIT: 1 STOP BAUD RATE: 2400/4800/9600 AUTOMATIC LINE FEED AUTOMATIC CARRIAGE RETURN READY PC Configuration The Windows-based PK-CD Programming Utility Kit contains a CD-ROM with on-line help file. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 44: 6: Ann-Bus Annunciators/Devices

    5,906 ft. 0.300 617 ft. 1,563 ft. 2,488 ft. 3,937 ft. 0.400 463 ft. 1,172 ft. 1,866 ft. 2,953 ft. 0.500 370 ft. 938 ft. 1,493 ft. 2,362 ft. Table 2.1 Wiring Distances MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 45 • 463 feet maximum using 22 Gauge wire • 1,172 feet maximum using 18 Gauge wire • 1,866 feet maximum using 16 Gauge wire • 2,953 feet maximum using 14 Gauge wire MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 46 Cut Ground Fault Detection jumper JP1 (FACP monitors for ground faults) ANN-BUS and power wiring are supervised and power-limited -24 VDC ANN-80 ANN-BUS +24 VDC ANN-BUS/ nonresettable ACS BUS FCPS-24FS6/8 FACP Figure 2.20 Powering ANN-BUS Devices from FCPS-24FS6/8 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 47: Ann-Bus Device Addressing

    To close the cover, make certain the key switch is in the ON (Unlocked) position. Swing the cover closed, snapping it shut. Turn the key switch to the OFF (Locked) position by turning clockwise and remove the key. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 48 The cover cannot be reattached or removed after the annunciator has been mounted. Annunciator mounted on Annunciator mounted on Annunciator mounted on stacked surface wedge from the surface backbox from the surface wedge and backbox from ANN-SB80KIT ANN-SB80KIT the ANN-SB80KIT MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 49 ANN-BUS and power wiring are supervised and power-limited ANN-BUS B A (+) (-) 24 VDC ANN-BUS/ nonresettable 4 3 2 1 ANN-80 ACS BUS + - + - + - FACP Figure 2.22 ANN-80 Wiring to FACP MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 50: Ann-S/Pg Serial/Parallel Interface Installation

    Programming section of this manual (refer to “ANN-BUS Options” on page 106). Note that the Auto-configure feature allows the programmer to quickly bring all installed ANN-BUS modules online (refer to “Auto-Configure” on page 114). MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 51: Printer Installation

    9600 or 2400 Color Option Not Installed Format 7 Bit, Even, 1 Stop Formien Protocol XON/XOFF Lines 6LPI=60 Character Set Standard Standard Exec 10.5 SI.Zero Barcode Auto LF Barcode Unsecured Table 2.2 PRN-7 Setup Options MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 52: Ann-I/O Led Driver Module

    PULL TRA 12/72” PAP ROLL 12/72” Table 2.3 PRN-6F Setup Options ANN-I/O LED Driver Module The following sections describe hardware installation. Refer to the section titled “ANN-BUS Options” on page 106 for programming information. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 53 • Alarm: 200 mA • Standby: 35 mA • Each LED: 10 mA • Operating Temperature: 32 F to 120 F (0 C to 49 • For indoor use in a dry location only MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 54 “ANN-I/O Options” on page 107 of this manual. The LEDs are wired as illustrated in Figure 2.26. Note that the illustration depicts only connectors P1 and P2. Wiring is identical for P3 (LEDs 21-30) and P4 (LEDs 31-40). MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 55: Ann-Led Annunciator Module

    Cathode LED19 LED20 LEDs LED Power Anode no connection Figure 2.26 ANN-I/O Board Layout ANN-LED Annunciator Module Figure 2.27 ANN-LEDs (shown in possible stacked configuration) Specifications  • Max. ANN-BUS Voltage: 24 VDC MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 56 F (0 C to 49 • For indoor use in a dry location only Mounting/Installation  Refer to the documentation supplied with the ANN-LED module for mounting information. Figure 2.28 Exploded View of ANN-LED MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 57: Ann-Rly Annunciator Module

    2 amps @ 30 VDC (resistive) • 0.5 amps @ 30 VAC (resistive) • Operating Temperature: 32 F to 120 F (0 C to 49 • For indoor use in a dry location only MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 58 ANN-MBRLY mounting bracket grounding wire mounting holes ANN-MBRLY mounting bracket ANN-RLY mounting holes mounting holes ROME Series Installation using ANN-MBRLY mounting bracket ANN-RLY on mounting holes ANN-MBRLY mounting bracket Figure 2.30 ANN-RLY Mounting Options MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 59: 7: Automatic Audio Panel Control

    Once the FACP can communicate with the audio system, FACP zones Z33 through Z56 become automatically dedicated as output zones for speaker circuits 1 through 24 respectively. FACP zone Z32 is dedicated to turn on all speaker circuits. FACP programming allows association between MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 60 25/50ZS Series Instruction Manual (Doc. 51889). Connect the ECC-50/100 panel’s FACP Data Bus at TB13 to TB9 on the FACP. to other ACS/ANN devices ECC-50/100 FACP Figure 2.32 FACP Connection to ECC-50/100 Series Audio Panel MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 61: 8: Acs Annunciators

    The ACM-8RF module provides eight Form-C relays with contacts rated for 5 amps. Legacy ACM Series Annunciators ACM and AFM Series Annunciators provide visual indications of FACP status in remote locations. Refer to the appropriate annunciator manual for information on installation, wiring and operation. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 62: 9: Ecc-Fft Firefighter Telephone

    USA. Use of this system outside the USA is subject to local laws and rules to which this product may not conform. It is the sole responsibility of the user to determine if this product may be legally used outside the USA. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 63 Notes MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 64: Section 3: Programming

    Local or remote programming and editing can also be accomplished using the DACT-UD2 Digital Alarm Communicator/Transmitter which is optional for the MS-9600LS and supplied standard with the MS-9600UDLS. Refer to the DACT-UD2 Manual P/N 53037 for detailed information.
  • Page 65: User Programming

    Windows-based computer and the DACT-UD2 USB connection on the MS-9600UDLS or Serial Port connection on TB7 of the MS-9600LS. For programs requiring a large amount of data entry, this method may be preferred. A PK-CD programming CD-ROM...
  • Page 66: Initial Power-Up

    Programming mode, the data just entered will not be saved. To access user Programming mode, press the Enter or Mode key. The LCD will display the follow- ing: 1=READ STATUS 2=PROGRAMMING 3=REMOTE DOWNLOAD MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 67: Master Programming Level

    The first time the system is powered-up, it should be autoprogrammed. If the system is already programmed and Autoprogram is initiated, the system will only add default values for newly installed devices. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 68: 2=Point Program

    Pressing 1, while viewing Point Program Screen #2, will allow the programmer to add, delete or change the programming of an addressable detector. The following screen will be displayed by the control panel: DETECTOR 1=ADD 2=DELETE 3=EDIT Detector Screen MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 69 The programmer can change a detectors existing or factory default programming by pressing 3 in the Detector Screen. The following screen will be displayed: EDIT DETECTOR ENTER POINT ADDRESS  Edit Detector Screen MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 70 • V or * - indicates whether or not alarm verification is enabled (V = alarm verification enabled and * = alarm verification disabled) • 1D017 - represents the Loop, Device type and Device address (1 = SLC Loop 1, D=Detector and 017 = Detector Address 017) MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 71 (Superv DuctP) Photo-SupervAR Supervisory, nonlatching (works only in LiteSpeed) User-Defined-7 same as previous (Photo-SupervAR) ADAPT Fire Alarm User-Defined-8 same as previous (ADAPT) Beam Fire Alarm User-Defined-9 same as previous (Beam) MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 72 This zone can be programmed to a control module which may be used to activate a sounder or indicator which the installer designates as a Presignal indication (do not use a Notifica- MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 73 Pressing 1 while viewing Edit Detector Screen #5 will cause the Edit Detector Screen #5 following screen to be displayed: 1=STANDARD ADJECTIVE 2=STANDARD NOUN 3=CUSTOM ADJECTIVE 4=CUSTOM NOUN Noun/Adjective Screen MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 74 Adjective and Noun Screens. The new screens will list custom Adjectives and Nouns which 2=STANDARD NOUN 3=CUSTOM ADJECTIVE have been programmed into the control panel using the PS-Tools programming kit. These descrip- 4=CUSTOM NOUN Noun/Adjective Screen tors are selected as described in the previous sections. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 75 Press the right arrow key to advance the zone field. Select a zone number from 00 to 99. Z00 (default zone) is the general alarm zone. Z01 through Z99 may be selected to link software zones. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 76: Module Programming

    A flashing cursor will appear in the position of the first asterisk to the left. Using the panel keypad, key in the module address such as 005. When the last digit is keyed in, the following confirmation that the module has been deleted will be displayed: DELETE MODULE MODULE# IS DELETED MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 77 If the selected address corresponds to a monitor module, a screen displaying information about the module with the selected address will be displayed as illustrated in the following: NORMAL MONITOR <ADJ><NOUN> ZNNN 1M012 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 78 The display will return to the Edit Monitor Screen #2 which will show the new type selection. Table 3.1 lists the Monitor Types and their respective functions. Monitor module type selection will affect the function of the point as follows: MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 79 Style 4 operation and isolator modules must be employed on each non-fire branch of the SLC as per Figure 13 in the Fire-Lite SLC Wiring Manual # 51309. Fire and non-fire devices must not be used on the same SLC branch.
  • Page 80 Pressing 1 while viewing Edit Monitor Screen #5 will Edit Monitor Screen #5 cause the following screen to be displayed: 1=STANDARD ADJECTIVE 2=STANDARD NOUN 3=CUSTOM ADJECTIVE 4=CUSTOM NOUN Noun/Adjective Screen MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 81 Pressing 3 or 4 while viewing the Noun/Adjective Screen will display screens similar to the previ- ous Adjective and Noun Screens. The new screens will list Custom Adjectives and Nouns which have been programmed into the control panel using the PS-Tools programming kit. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 82 Press the right arrow key to advance the zone field. Select a zone number from 00 to 99. Z00 (default zone) is the general alarm zone. Z01 through Z99 may be selected to link software zones. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 83 1=ENABLED ing its output devices. The control panel will indicate a system trouble condition and the Disable 2=TYPE 3=SILENCEABLE LED will turn on if any devices are disabled. Edit Control Screen #2 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 84 Walktest feature, press 1 while viewing the Edit Control Screen #3 until the display reads Walktest Yes. Each press of the 1 key will cause the display to toggle between Walktest Yes and Walktest No. Refer to “Walktest” on page 137 for additional information. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 85    1=MAIN 1=FLOOR 1 1=3RD 2=FLOOR 2 2=FIRST 2=4TH 3=FLOOR 3 3=2ND 3=5TH Adjective Screen #4 Adjective Screen #6 Adjective Screen #5  1=FLOOR 4 2=FLOOR 5 3=ROOM Adjective Screen #7 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 86 Adjective field is replaced with the field entered for the previous device programmed, and the cursor moves to the last character of the field (Recall function). The Recalled Adjective or Noun field may now be changed letter-by-letter. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 87: Mns Override

    Disable ZONE SETUP 1=ENABLE 2=DISABLE Pressing 2 for Disable, while viewing Zone Setup Screen #1, will display the following screen: 3=ZONE 97 98 99 Zone Setup Screen #1 ZONE TO DISABLE Disable Screen MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 88: Zone 97, 98 And 99

    Press the up or down arrow keys to view the additional zones. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 89: Zones Enabled

    Zone Type Program Screen #2 Zone Type Program Screen #1 ZONE TYPE PROG ZONE TYPE PROG 1=MEDICAL 1=SUPERVISORY 2=HAZARD 2=PROC. MON 3=TAMPER 3=SMOKE ION Zone Type Program Screen #3 Zone Type Program Screen #4 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 90: Zones Available

    Loop Selection Press 1 while viewing the Loop Selection Screen to configure Loop1 or 2 to configure Loop 2. The following screens will appear for each loop. LOOP # SETUP 1=STYLE Loop Setup Screen MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 91: Loop Protocol

    Appliance Circuits for a variety of options, such as circuit type, silenceable/nonsilenceable, autosilence, coding, silence inhibit, zone assignment and enable/disable. • Relays: This option allows programming of two onboard relays for activation by various control panel events, such as alarm, trouble, supervisory, etc. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 92: Trouble Reminder

    Enter to view the second screen. Enter up to 20 characters in the second screen in the same manner or just press Enter if a second banner line is not being entered. To quickly clear the current banner, press the CLR key. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 93: Time-Date

    Select 12HR for 12 hour display or 24HR for 24 hour display. NOTE: If the clock is changed to 24 hour (military) format, the date will change to the European standard of Day-Month-Year (for display purposes only). MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 94: Timers

    005 for five seconds. Upon entering the third digit, the time delay will be stored in the control panel memory and the display will return to the Delay Screen which will indi- cate the new delay time. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 95 02 hours. Type the two digit AC loss reporting delay in hours (00 to 23 hour delay). When the sec- ond digit is entered, the display will return to AC Loss Delay Screen #1. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 96: Nac (Notification Appliance Circuit)

    Strobe None Synced Strobe Synchronized to manufacturer Strobe Sil Sync Same as Synced Strobe but Silence turns off audible & visual devices Future Use None Future Use None Future Use None Blank None MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 97 NAC Screen #2, which will display the new coding choice. Two Stage Operation Two Stage operation consists of the following: • 1st stage output - 20 ppm (pulse-per-minute) coding • 2nd stage output - Temporal coding as described above MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 98 NAC for a period of one minute. Pressing 2 while viewing NAC Screen #3 will cause the display to change from the factory default of Silence Inhibit No to Silence Inhibit Yes. Each press of the 2 key will cause the display to toggle between the two options. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 99: Relays

    Relay 2 is fixed as a Trouble relay. Selecting Relay 2 will have no effect on its programming. The following screen will appear for each relay to be programmed: RELAY # 1=TYPE ALARM Relay Type Screen MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 100: Canadian Option

    • process monitor • hazard • tornado • medical alert • The auto-silence timer is fixed at 20 minutes and cannot be changed. • Addressable ionization smoke detector sensitivity is automatically monitored using Canadian specifications. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 101: Waterflow Silenceable

    Pressing 1 while viewing Programming Screen #3 will display the History options 1=HISTORY as shown in the following display: 2=WALKTEST 3=OPTION MODULES Programming Screen #3 HISTORY 1=VIEW EVENTS 2=ERASE HISTORY History Screen MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 102: View Events

    The user can select between any of these screens without interrupting the current walktest session. The walktest session will not end until the Unit In Walktest screen is exited by pressing the Escape key. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 103: 9: Option Modules

    Options available for the FACP include ACS, Graphic, LED, Relay and LCD annunciators, printer PROGRAMMING connection for acquiring hardcopy printouts of panel data and PC (Personal Computer) connection 1=HISTORY 2=WALKTEST for uploading and downloading panel data. 3=OPTION MODULES Programming Screen #3 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 104: Annunciators

    Addresses 1 -31. Each screen will indicate if an address has been used for an installed ACS annun- ciator. To select one or more addresses for the installed ACS annunciator(s), press the number key corresponding to the address in each screen. The display for the selected address will change from MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 105 The 8 General System Status Points include the following: • General Alarm • General Trouble • General Supervisory • Alarm Silenced • System Off Normal • AC Loss • Battery Fault • NAC Fault MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 106 The options selected for each of these modules will be the same for all modules of the same type (refer to “ANN-S/PG (Print) Options” on page 114 and “ANN-80 Options” on page 115). MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 107 Pressing 2 while viewing ANN-I/O Address Screen #3 will select either addressable detectors or addressable modules to be annunciated. Pressing 3 while viewing ANN-I/O Address Screen #3 will select the SLC loop with the address- able devices to be annunciated. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 108 Zone 64 Not Used Zone 25 Zone 65 Not Used Zone 26 Zone 66 Not Used Zone 27 Zone 67 Not Used Zone 28 Zone 68 Not Used Zone 29 Zone 69 Not Used MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 109 Point 147 Not Used Point 28 Point 68 Point 108 Point 148 Not Used Point 29 Point 69 Point 109 Point 149 Not Used Point 30 Point 70 Point 110 Point 150 Not Used MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 110 Zone 20 Zone 21 Zone 22 Zone 23 Zone 24 Active/Alarm Active/Alarm Active/Alarm Active/Alarm Active/Alarm Zone 25 Zone 26 Zone 27 Zone 28 Zone 29 Active/Alarm Active/Alarm Active/Alarm Active/Alarm Active/Alarm ANN-RLED Module #1 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 111 The LED assignments for the modules annunciating Zone Ranges 20 - 29, 30 - 39, 40 - 49, 50 - 59, 60 - 69, 70 - 79, 80 - 89 and 90 - 99, will follow the same pattern as the second ANN-LED module. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 112 ANN-RLED Module #2 (Point Range 31 - 60) The LED assignments for the modules annunciating Point Ranges 61 - 90, 91 - 120, 121 - 150, and 151 - 159, will follow the same pattern as the second ANN-RLED module. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 113 The ANN-RLY module provides ten Form-C relays which can be programmed for various func- tions. The initial screen displays Relays 1 through 3. Pressing the down arrow key will display the remaining relays for this module. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 114 3 while viewing Print Options screen #1. The resultant screen allows the programmer to program the Offline Timer for a delay of between 0 and 255 seconds before loss of printer supervision is reported as a trouble. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 115 2 while viewing the ANN-80 Options Screen #1 causes the display to toggle between Lock Enable Yes (annunciator must be unlocked for keys to function) and Lock Enable No (lock position is ignored). MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 116: On Board Dact

    Pressing the number key corresponding to the desired baud rate (2 for 4800 Baud for example) will program the control panel for the selected baud rate and return the display to the Option Module Screen which will indicate Printer/PC PR4800 for a supervised printer installed at 4800 baud rate. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 117: 10: Password Change

    SLC Loop 1 and the connected addressable devices. Pressing 1, for Loop 2 while viewing the Clear Program Screen #2, will clear only the program- ming related to SLC Loop 2 and the connected addressable devices. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 118: 12: Program Check

    Use the up and down arrow keys to view all the zones without input assignments. Pressing 3 while viewing Program Check screen will cause a screen similar to the following to be displayed: ZONES NO OUTPUT 05 07 09 10 11 1D001 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 119: Maintenance Programming Level

    Select the Loop, containing the device to be disabled, by pressing 1 for Loop 1 or 2 for Loop 2. A screen will then be displayed, allowing the operator to select the type of addressable device to be disabled as shown in the following display: POINT PROGRAM 1=DETECTOR 2=MODULE Device Select Screen MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 120: 2=History

    Pressing 1 while viewing the Erase History Screen will cause the message ERASING HISTORY, PLEASE WAIT to be displayed. The display will then return to the History Screen. Pressing 2 will cause the display to return to the History Screen without erasing the History file. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 121: 3: Program Check

    001 on loop 1 but have not been programmed to any output devices. Use the up and down arrow keys to view all the zones without output assignments. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 122: 4: Walktest

    The cursor will move one position to the right after each entry. When the fourth digit of the year has been entered, the display will return to the Time and Date Screen which will show the new date. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 123: 6: Zone Setup

    Zone 98 to a Notification Appliance Circuit when using this zone to indicate a Pre-signal condition. Zone 99, in special purpose mode, is reserved for future use and has no effect. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 124: Zones Installed

    Note that an up and/or down arrow will appear in the upper right corner of the display, indicating that additional screens of zone information exists. Press the up or down arrow keys to view zones Z00 through Z99. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 125: Zones Available

    Messages 1 through 5. When a message is selected, the display will return to the Zone Message screen, showing the message selected for that particular zone. In the example above, Zone 01 has been programmed for Message 1. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 126 Notes MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 127: Section 4: Operating Instructions

    This red LED flashes when one or more alarms occur. It illuminates steady when the Acknowl- edge/Step or Alarm Silence key is pressed. The Fire Alarm LED turns off when the Reset key is pressed. The LED will remain off if all alarms have been cleared. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 128: Normal Operation

    • Refreshes LCD display and updates time • Scans control panel keypad for key presses • Performs autotest for all SLC devices • Tests memory • Updates and reads all communications buses (EIA-485, EIA-232, etc.) MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 129: Trouble Operation

     installed device (for example, Photo has been programmed but an Ion detector has been installed) SW TBL - indicating a module has failed the testing of its Class A switching relay  MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 130: Alarm Operation

    A typical alarm display would be as illustrated below: ALARM PULL STATION <ADJ> <NOUN> Z000 10:00A 010810 1M001 Note that the device type, which in this example is PULL STATION, can be any other programma- ble alarm type. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 131: Supervisory Operation

    Open circuits in supervisory wiring are processed by the control panel the same way as other trouble conditions. Refer to “Alarm Operation” on page 130, for a description of the information displayed on the control panel LCD. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 132: Process Monitor Operation

    Medical Alert condition must be Acknowledged before the FACP can be reset Medical alert conditions latch and will therefore clear only when the medical alert condition is cleared and the panel reset. They can be assigned to software zones. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 133: Mass Notification Operation

    Each addressable detector is monitored by the control panel for its maintenance status. If a detector is near but below the allowed alarm limit, a ‘maintenance alert’ message will automatically be dis- played, signaling that the detector is in need of servicing. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 134: Time Functions: Real-Time Clock

    Silence key is pressed. The visual devices (strobes, etc.) will continue to oper- ate. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 135: Coded Operation

    NACs for an additional time duration which can be user programmed for up to three minutes. After the programmed delay, the NACs will MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 136: Special System Timers

    Alarm Silence key is pressed). The ‘beeps’ from the onboard piezo sounder will occur until the alarm or fault is cleared. Note that if the trouble is not cleared within 24 hours, the piezo will resound, indicating that the trouble condition still exists. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 137: 4: Waterflow Retard Timer

    Addressable devices are monitored for fault conditions during Walktest mode. When a new trouble condition occurs, the FACP will activate all NACs and control modules programmed for Walktest and mapped to the faulted device, then shut them off after eight seconds. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 138: Read Status

    The operator now selects the type of device which is to be viewed by pressing 1 for Detector or 2 for Module. If 1 is pressed, the display will change to the following screen: READ SYSTEM POINT ENTER DETECTOR#  MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 139: 2: Zones

    Pre-signal and 99 reserved for future use • Zone Type - the Type assigned to each installed zone (default is Alarm) • Zone Message - the message assigned to each installed zone MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 140: 4: Trouble Reminder

    These screens indicate the delay time, in seconds, for each of four possible delay options. 4.23.6 NAC Pressing 3 while viewing Read Status Screen #2 will display the following screen: 1=NAC 1 3=NAC 3 2=NAC 2 4=NAC 4 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 141: 7: Relays

    3=VIEW OTHER EVENTS The operator can view all events which have been stored in the history file, only alarms or other events, such as troubles or supervisories, by pressing the corresponding number key. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 142: 10: Annunciators

    The second and third lines of this screen indicate that both the Primary and Secondary phone lines have been configured for touchtone dialing operation. Pressing 3 while viewing the Phone Line screen will cause the following screen to be displayed: SUPERVISE PHONE LINE PHONE LINE 2 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 143: 12: Central Station

    4800 and PR indicates that the printer is being supervised. If NS appeared in place of PR, it would indicate that the printer is not supervised. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 144: 15: Print

    DIRTY1 Maintenance Alert Dust accumulation that is near but below the allowed limit. DIRTY 1 indicates the need for maintenance before the performance of the detector is compromised Table 4.1 Maintenance Alert Levels MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 145: 16: Time-Date

    Pressing 1 while viewing Read Status Screen #6 will display the following screens: Read Status Screen #6 DAYLIGHT SAVINGS DAYLIGHT SAVINGS END MONTH ENABLED END WEEK WEEK-1 START MONTH START WEEK WEEK-2 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 146: Section 5: Power Supply Calculations

    (batteries) must be able to power the system during a primary power loss. To calculate the non-fire alarm load on the secondary power source, use Calculation Column 3 in Table 5.3 on page 148. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 147: 2: How To Use Table 5.3 On Page 148 To Calculate System Current Draw

    Table 5.3 contains columns for calculating current draws. For each column, calculate the current and enter the total (in amperes) in the bottom row. When finished, copy the totals from Calculation Column 2 and Calculation Column 3 to Table 5.4 on page 149. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 148 3 & 4, 5 & 6) power. Caution must be taken to ensure that current drawn from these outputs during alarm does not exceed maximum ratings specified. Current limitations of TB3 circuits is 3.0 amps per output. 11 Total current draw listed above cannot exceed 7.0 amps in alarm. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 149: Calculating The Battery Size

    The control panel can charge batteries in the 12 AH to 26 AH range. The control panel cabinet is capable of housing batteries up to 18 AH. Batteries larger than 18 AH require the BB-26, BB-55F, or other UL-listed external battery cabinet. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 150: Appendix A: Software Zones

    1 to 99. Newer LiteSpeed devices (modules and detectors) can have unique addresses of 1 to 159 which means each zone can have up to 159 input and output devices assigned to it. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 151 ZONE CMF-300 CP300 SD350 CMF-300 SD350 ZONE SD350 CMF-300 MMF-302 The zone correlations which are shown graphically above are also presented in Table A.1 on page 152 and Table A.2 on page 153. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 152 ADJ/NOUN Address ADJ/NOUN Type Number Type Number SD350 FIRST HALL SD350 ELEV. LOBBY CP350 2ND FLOOR CP350 ROOM 210 SD350 3RD FLOOR SD350 MEZZANINE SD350 MECH. ROOM Table A.1 Detector Programming Sheet Example MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 153 Device Type ADJ/NOUN Address ADJ/NOUN Number Type Number MMF-300 MMF-302 1, 2 MMF-302 1, 2 MMF-302 CMF-300 CMF-300 CMF-300 CMF-300 CMF-300 1, 2, 3 CMF-300 CMF-300 CMF-300 CMF-300 Table A.2 Module Programming Sheet Example MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 154 Software Zones Correlations DETECTOR ZONE ASSIGNMENT Device Zone Device Zone Address ADJ/NOUN Address ADJ/NOUN Type Number Type Number Table A.3 Blank Detector Programming Sheet - 1 of 2 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 155 Correlations Software Zones DETECTOR ZONE ASSIGNMENT Device Zone Device Zone Address ADJ/NOUN Address ADJ/NOUN Type Number Type Number Table A.4 Blank Detector Programming Sheet - 2 of 2 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 156 Software Zones Correlations MONITOR/CONTROL MODULE ZONE ASSIGNMENT Device Zone Device Zone Address ADJ/NOUN Address ADJ/NOUN Type Number Type Number Table A.5 Blank Module Programming Sheet - 1 of 2 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 157 Correlations Software Zones MONITOR/CONTROL MODULE ZONE ASSIGNMENT Device Zone Device Zone Address ADJ/NOUN Address ADJ/NOUN Type Number Type Number Table A.6 Blank Module Programming Sheet - 2 of 2 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 158: Appendix B: Default Programming

    ANN-RLY Relay 1 Zone 1 Ring Count ....through........PAS Timer ANN-RLY Relay 10 Zone 10 Presignal Timer ANN-LED Point/Zone Zone Waterflow Retard Timer ANN-LED Alarms/ATS (Alarm, Trbl, Supv) ANN-LED Range 0 - 9 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 159: Appendix C: Nfpa Standard-Specific Requirements

    Transmitter Module,” on page 162. NFPA 72 Proprietary Fire Alarm System FACP Alarm, Trouble and Supervisory contacts connected to Transmitter(s). See Figure C.5, “Proprietary Protective Signaling System,” on page 164, for installation instructions for this unit. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 160 FACP Figure C.1 Central Station Service Using 411UDAC 411UDAC FACP TB2-1 TB1-3 Alarm TB2-2 TB1-1 TB2-3 TB5-3 Trouble TB2-4 TB5-2 TB2-5 TB5-6 Supervisory TB2-8 TB5-4 Table C.1 411UDAC Connections to FACP MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 161 1 2 3 4 5 6 FACP Figure C.2 FACP Connection to 411UD 411UD FACP Alarm TB2-1 TB1-1 TB2-2 TB1-3 Trouble TB2-3 TB5-2 TB2-4 TB5-3 Supervisory TB2-5 TB5-4 TB2-6 TB5-6 Table C.2 411-UD Connections to FACP MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 162 Refer to “4XTMF Transmitter Module Installation” on page 39 for detailed information. FIRE Municipal Box Circuit Gamewell Model M34-56 Local Energy Municipal Box Polarities shown in alarm condition Nonpower-limited 4XTMF Figure C.3 Municipal Box Connected to 4XTMF Transmitter Module MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 163 Cutting TBL Jumper allows the 4XTMF Transmitter Module reverse polarity circuit to open with a system trouble condition if no alarm condition exists. Figure C.4 Remote Station Connection Using 4XTMF Module MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 164 NFPA 72 Proprietary Protective Signaling System. Potter Electric Model EFT-C has not been tested for UL 864 9th Edition and is for use in retrofit applications only. Figure C.5 Proprietary Protective Signaling System MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 165: C.1: Central Station/Remote Station Transmitter: Connection To Facp Dry Contacts

    FACP and no troubles in the panel, the wiring should be connected to the NO and C contacts as indicated in the illustration. FACP Main Circuit Board Figure C.6 FACP Dry Contacts Connection to Central Station/Remote Station Transmitter MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 166: C.2: Mbt-1 Municipal Box Trip - Silenceable

    The CMF-300 must be + on SLC Loop programmed as Silenceable brown wire Braided-shield/Drain Wire and General Alarm. black EOLR-1 Power Alarm polarity shown! Supervision Relay CMF-300 SLC Loop Shield 24 VDC, Nonresettable FACP MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 167: Appendix D: Facp With Keltron

    Fire Alarm Control Panel (terminal blocks are not shown in their actual positions in order to clarify wiring connections) Figure D.1 Wiring to Keltron Printer MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 168: Appendix E: Wire Requirements

    (power-limited) Circuit volt drop allowed at end of by 1.2 volt maximum circuit line drop Table E.1 FACP Wire Specifications When using untwisted, unshielded wire, full conduit is recommended for optimum EMI/RFI protection. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 169: E.1: Nac Wiring

    NAC voltage with the entire load at the end of the circuit. Further distances can be achieved by performing a point-to-point voltage calculation that more accurately reflects the specific devices and how they are dispersed on the circuit. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 170: Appendix F: Hvac Control

    HVAC SHUTDN control relay module only if there are no alarm conditions. The HVAC SHUTDN control relay module can be deactivated if trouble conditions exist on the FACP. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 171: F.2.2: Hvac Ovrride

    HVAC Shutdown from occurring only if it is initiated prior to an alarm condition. NOTE: Activation of the HVAC OVRRIDE module causes a supervisory event that will be communicated to the Central Station if enabled. MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 172: Appendix G: Canadian Applications

    FACP metal conduit (max. 20 ft.) ANN-LED Annunciator FIRE SYSTEM ACTIVE SYSTEM CALL CO NTROL FACP Optional ECC-50/100 Audio System ® by Honeywell Figure G.1 FACP Minimum Configuration - Single ANN-LED Annunciator MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 173 ANN-LED Annunciators When using an audio system, FIRE SYSTEM ACTIVE SYSTEM CALL CONTROL 7 ANN-LEDs can be used. ® by Honeywell Optional ECC-50/100 Audio System Figure G.2 FACP Maximum Configuration - Eight ANN-LED Annunciators MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 174: Index

    14 AEM-16ATF Annunciator 23 CHG-75 AEM-32AF Annunciator 24 see also battery charger 21 Alarm 130 see also remote battery charger 14 Alarm Silence 17 Class A 31 alarm verification 13 Class B 31 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 175 78 Default Programming 158 End-of-Line Resistor Assembly 19 Delete Detector 69 Enter key 66 Delete Module 76 Erase History 102 Description exiting control module 86 programming 65 detector label 75 Read Status 65 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 176 Auto Silence 97 LCD-80F annunciator 13 coded 135 LDM Series annunciator 24 coding 97 LDM-32 Graphic Annunciator 13 current 15 End-of-Line Resistor 15 AC Power 127 MNS Override 99 Alarm Silenced 128 power 13 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 177 116 hazard condition 132 configuration 43 medical alert 132 connection 42 NAC 134 ground fault 43 normal 128 setup 43 process monitor 132 printer connection 51 programmed zone 133 printer module MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 178 134 Real-Time Clock 134 sensitivity 134 Recall/Increment Function 75 Smoke Detector Power Relay 15 current 15 connections 31 smoke detector sensitivity 13 contact rating 15 Software Zones 13 fixed 31 sounder 17 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 179 78 Zone Setup 87 NAC 96 Maintenance Level 123 type code zone type 89 control module 84 list 90 supervision 134 Zone Z97 72 verification 13 Zone Z98 pre-signal zone 73 Zones 139 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 180 Z–Z Index see also software zones 13 Zones Disabled 89 Zones Enabled 89 Zones Installed 88 zones per device 73 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015...
  • Page 181: Ms-9600Ls Series & Ms-9600Udls Series Fire Alarm Control Panels

    MS-9600LS Series & MS-9600UDLS Series Fire Alarm Control Panels Operating Instructions NORMAL - Only the GREEN AC POWER LED is on. PANEL KEY - The key to open the panel can be found at the following All other LEDs are off. LCD display will read SYSTEM ALL NORMAL.
