Fire-Lite MS-9200 Addendum Manual

This procedure outlines the mechanical installation steps required to install EPROMs in the MS-9200, MS-9200C
and MS-9200E.

Handling precautions for integrated circuits

Static electricity can destroy integrated circuits (ICs)! To prevent damage to the EPROM, a wrist strap and a
static-free IC insertion/extraction tool is highly recommended. The manufacturer cannot be responsible for
damage to the EPROM as a result of improper handling.

System Power Sources

Always remove primary and secondary power before working on the system!
1. Disconnect battery backup power before working on the system!
2. Proceed by disconnecting AC power to the panel at the main service circuit
breaker (not the circuit breaker at the alarm control panel's power supply).
3. Wait 60 seconds to allow for capacitive discharge before touching any of the
system's components.
4. Reverse the procedure for powering up the system - AC first - then batteries.

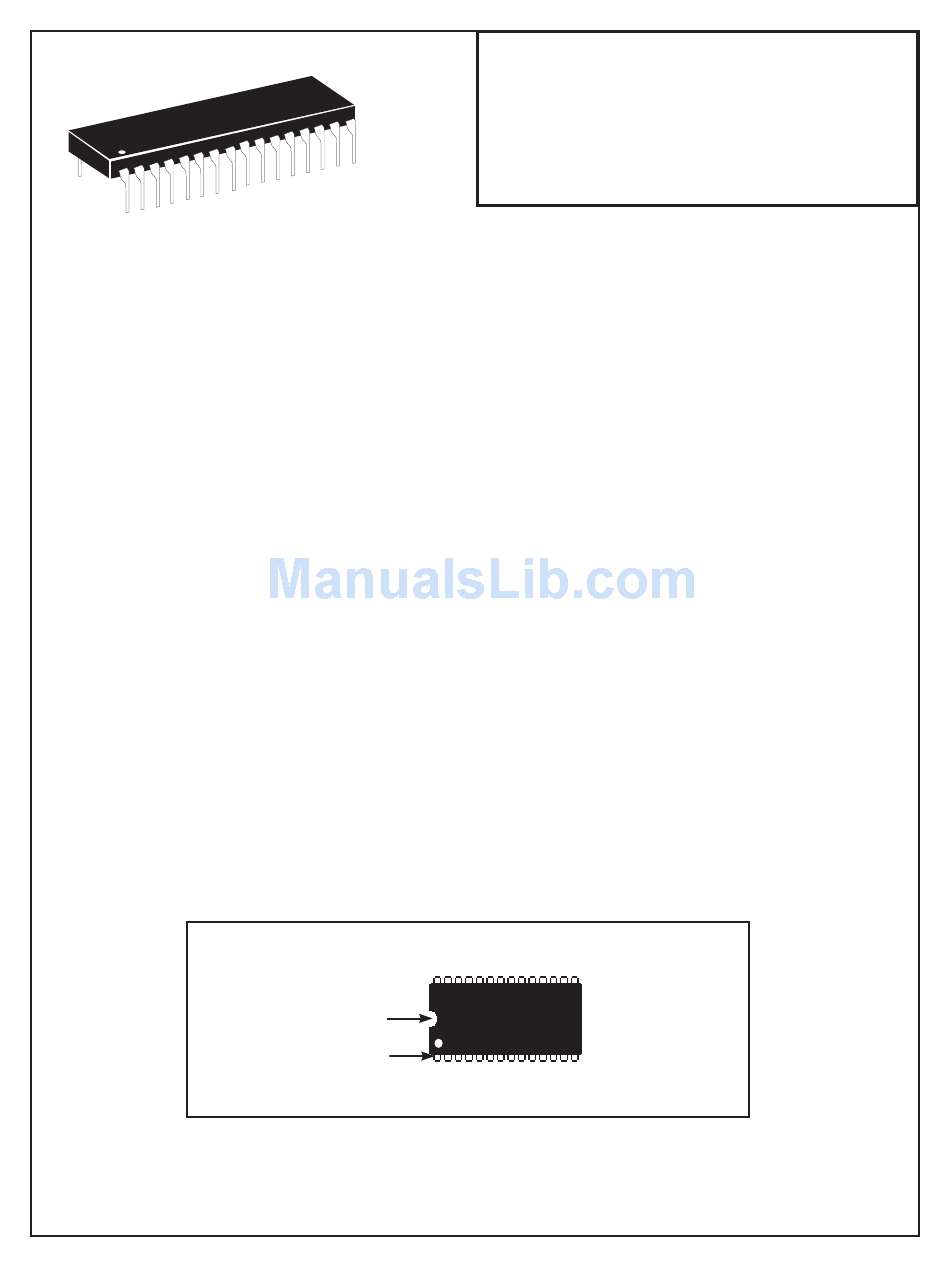

Integrated Circuit Pin Conversion

Observe proper orientation of any IC removed or installed! Note location of Pin 1 with respect to the notch in the
body of the IC. The replacement EPROM must be installed in the same manner as the EPROM removed. Failure
to observe this orientation will result in destruction of the EPROM. NOTE: Some ICs may have a small dot instead
of a notch for orientation purposes.
Field Software Change Procedure

Firmware Change

Notch
Pin 1
Document 50053 Rev M 1/10/08 P/N 50053:M
MS-9200(C)/E
(and Programming Existing MS-9200
Systems for use with the LCD-40)
Document #50053 Rev. M 1/10/08
ECN 08-019 P/N 50053:M
1 of 5
