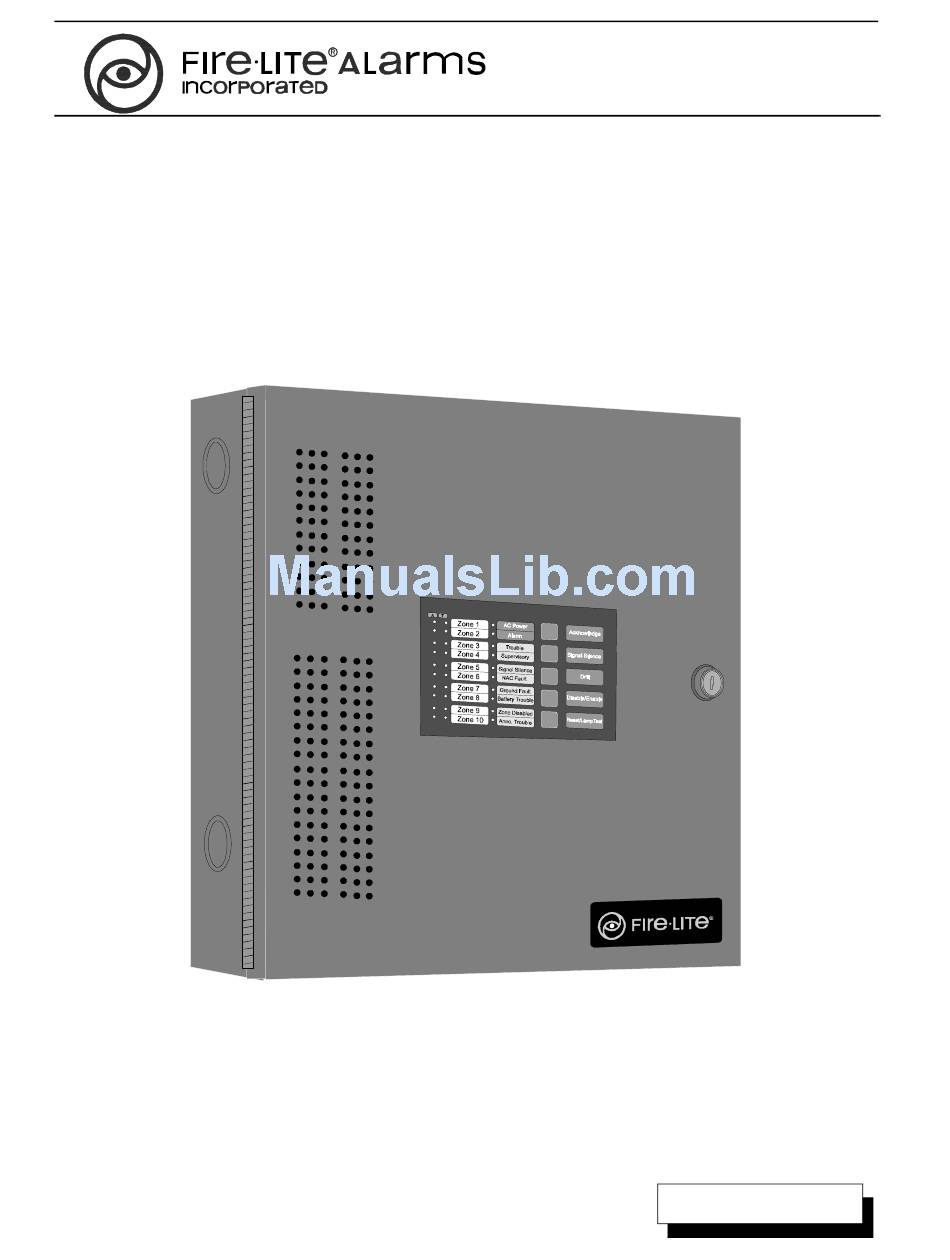

Fire Alarm Control Panel
Programming, Installation, Maintenance
and Operating Instruction Manual
MS-2410BC
Conventional
24 Viceroy Road
Unit #6 & 7
Concord, Ontario L4K2L9
Phone (905) 660-7210
FAX: (905) 660-7204
B
Document
#50801
8/17/98
Rev.
P/N 50801:B
ECN 98-380
© 1998 Fire•Lite

Advertisement

Table of Contents
loading

Related Manuals for Fire-Lite MS-2410BC

Summary of Contents for Fire-Lite MS-2410BC

  • Page 1 24 Viceroy Road Unit #6 & 7 Concord, Ontario L4K2L9 Phone (905) 660-7210 FAX: (905) 660-7204 MS-2410BC Conventional Fire Alarm Control Panel Programming, Installation, Maintenance and Operating Instruction Manual Document #50801 8/17/98 Rev. P/N 50801:B ECN 98-380 © 1998 Fire•Lite...
  • Page 2 Installation Precautions - Adherence to the following will aid in problem-free installation with long-term reliability: WARNING - Several different sources of power can be connected to the fire alarm Like all solid state electronic devices, this system may operate erratically or can control panel.

  • Page 3: Table Of Contents

    FIGURE 1-13: LDM-32F Module.......................15 FIGURE 1-14: FCPS-24F........................15 CHAPTER 2: Installation ..........................17 2.1: Mounting Options ............................17 FIGURE 2-1: MS-2410BC Mounting ....................17 2.2: Backbox Mounting ............................17 FIGURE 2-2: Cabinet Dimensions and Knockout Locations..............18 FIGURE 2-3: FACP Backbox......................19 2.3: Operating Power............................20 FIGURE 2-4: Operating Power Connections..................20...
  • Page 4 Table of Contents 3.3: Entering Program Mode ..........................32 FIGURE 3-2: Programming Security Key - Program Mode ...............32 3.4: Programming Function..........................32 3.4.1: Program Feature Selection ........................33 3.4.2: Programming Options ........................33 3.4.3: Programming Example........................33 3.5: Program Features and Options ........................37 3.5.1: Program Features..........................37 3.5.2: Programming Options ........................37 TABLE 3-2: Program Feature Indicated by Alarm Zone ..............37 TABLE 3-3: Auto-silence Program Options - Zone 1 Alarm LED .............38...
  • Page 5 This control panel has been designed to comply with standards set forth by the following regulatory agencies: Before proceeding, the installer should be familiar with the following documents. NFPA Standards This Fire Alarm Control Panel complies with the following NFPA Standards: NFPA 72 National Fire Alarm Code for Local Fire Alarm Systems (Automatic, Manual, Waterflow and Sprinkler Supervisory) and Proprietary (Automatic, Manual and Waterflow) Fire Alarm Systems.
  • Page 6       AC Power MS-2410BC Terminals and Connectors Document #50801 Rev.B 8/17/98 P/N 50801:B...

  • Page 7: Chapter 1: Product Description

    Product Description CHAPTER 1 The MS-2410BC is a 10-zone FACP (Fire Alarm Control Panel), which uses conventional input devices. The panel accepts waterflow devices, two-wire smoke detectors, four-wire smoke detectors, pull stations and other normally-open contact devices. Outputs include two Notification Appliance Circuits (NACs), three standard Form-C relays (alarm, trouble and supervisory) and an EIA-485 port to interface with remote annunciators and optional remote relay modules.
  • Page 8 Product Features MS-2410BC Panel FIGURE 1-2: Remote Notification Trouble 10 Input Appliance 24 VDC Buzzer Security Key Zones Circuits Power Relays Standard Transformer LED-10IM Interface Module Connector Keypad and Reverse LEDs Polarity Module Optional Transformer Reverse Polarity Module Supervision Holds up to 7 AH Batteries, Document #50801 Rev.B...

  • Page 9: Specifications

    Battery (lead acid only) - J1 Maximum Charging Circuit: Normal Flat Charge—27.6V @ 0.8 amp Maximum Charger Capacity: 18 Amp Hour battery (MS-2410BC cabinet holds maximum 7 Amp Hour battery. Larger batteries require Fire•Lite BB-17F) Initiating Device Circuits TB6 and TB7...

  • Page 10: Controls And Indicators

    Controls and Indicators Nonresettable 24 VDC Power - TB2 Terminals 1(-) & 2(+) Maximum ripple voltage: 10 mV Operating Voltage nominal 24 volts Total DC current available from this output is up to 500 mA Recommended maximum Standby current is 150 mA Refer to Fire•Lite Device Compatibility Chart for compatible listed devices Remote Trouble Buzzer - TB5 Operating Voltage: nominal 24 VDC...

  • Page 11: Circuits

    Battery Charger Battery Charger will charge up to 18 AH batteries. The MS-2410BC cabinet holds a maximum of 7 AH batteries. The Fire•Lite BB-17F is required to hold 18 AH batteries. The charger is rated for 800 mA maximum current.

  • Page 12: Optional Modules

    The cabinet is red and the backbox measures 20.00" (50.8 cm) long X 17.00" (43.18 cm) high X 3.125"(7.938 cm) deep and provides space for two batteries (up to 7 Amp Hours). Also included is a dress panel, DP-2410BC, which comes premounted inside the cabinet. MS-2410BC Cabinet FIGURE 1-5: Transformer Assembly...
  • Page 13 7 Amp Hour to a maximum of 18 Amp Hour. The battery box mounts directly below the MS-2410BC cabinet, centered to the main circuit board. The BB-17F is red and is provided with knockouts. Remote Trouble Buzzer...
  • Page 14 Optional Accessories AFM Series Annunciators (LED Zone Type) The AFM Series Annunciators remotely display system status. The AFM/AEM-16AT annunciators display zone alarm and trouble status. In addition, they provide remote Acknowledge, Silence, Reset and Drill functions. The AFM Series Annunciators require the use of the LED-10IM Interface Module. For more detailed information, refer to the appropriate AFM Annunciator manual.
  • Page 15 (expander modules are not required when interfacing to the MS-2410BC). The LDM-32F and LDM-E32F have output connectors which are used to drive lamps or LEDs and input connectors which are used for remote switch functions. The LDM Series requires the use of the LED-10IM Interface Module.
  • Page 16 Optional Accessories One of the most common applications for the FCPS-24F remote power supply utilizes the NAC expander mode. In this application, one or two Notification Appliance Circuits (NACs) are connected from the main FACP NAC output(s) to the remote power supply Control Input circuits. When these Control Input circuits activate (due to reverse polarity of the NAC output), the power supply will activate its corresponding outputs.

  • Page 17: Chapter 2: Installation

    Installation Installation CHAPTER 2 Mounting Options MS-2410BC Mounting FIGURE 2-1: The cabinet may be either semi-flush or surface mounted. The door is attached to the cabinet by a piano hinge. The cabinet mounts using two key slots and two additional 0.250" (6.35 mm) diameter holes located in the backbox.
  • Page 18 Backbox Mounting Draw wires through the respective knockout locations. Cabinet Dimensions and Knockout Locations FIGURE 2-2: Right Side Left Side Bottom Document #50801 Rev.B 8/17/98 P/N 50801:B...
  • Page 19 Backbox Mounting FACP Backbox FIGURE 2-3: When batteries larger than 7 Amp Hour are being used, the BB-17F battery box (or equivalent) must be installed. To install the BB-17F: Mount the FACP cabinet to the wall. Remove knockouts on the bottom of the FACP cabinet and top of the BB-17F. Using conduit, hang the BB-17F from the FACP cabinet making sure there is at least ½"...

  • Page 20: Operating Power

    Primary Power Source (AC) and Earth Ground Connections AC power connections are made inside the control panel cabinet. The primary power source for the MS-2410BC is 120 VAC, 60 Hz, 2.3 amps. Run a pair of wires (with ground conductor) from the protected premises main breaker box to TB1 of the main circuit board.

  • Page 21: Input Circuits

    Input Circuits Input Circuits The control panel has 10 zone input circuits. The maximum loop resistance limit for each input circuit is 100 ohms. All field wiring of each zone is supervised for opens and ground faults. Both conditions are visually and audibly annunciated.

  • Page 22: Output Circuits

    Notification Appliance Circuits The MS-2410BC provides two Notification Appliance Circuits standard as Class B. Each circuit is capable of 2.5 amps of current. Total current drawn from these as well as other DC power outputs cannot exceed 3.6 amps with the standard transformer, 6.6 amps if an optional XRM-24 Transformer is installed.

  • Page 23: Power-Limited Wiring Requirements

    0.25" (6.35 mm) away from any nonpower-limited circuit wiring. Furthermore, all power-limited and nonpower-limited circuit wiring must enter and exit the cabinet through different knockouts and/or conduits. A typical wiring diagram for the MS-2410BC is illustrated in Figure 2-9. Typical Wiring Diagram for Power-limited Requirements...

  • Page 24: Installation Of Optional Modules With Remote Accessories

    The RTB can be mounted remotely in a single-gang electrical box. Four wires are required to connect the RTB to the MS-2410BC control panel as illus- trated in Figure 2-10.
  • Page 25 The LED-10IM Interface Module provides an EIA-485 port to support the LED-10 Series Remote Annunciator, LDM Series Annunciator, AFM Series Annunciator and the ACM-8RF Relay Module. EIA-485 wiring is super- vised for open circuits by this module. The LED-10IM mounts to connector J5 on the MS-2410BC main board. LED-10IM Installation...
  • Page 26 ACM-8RF Address and SW3 DIP Switch Settings - Each of the ten MS-2410BC IDCs can be assigned to an ACM-8RF relay. Two relay modules are required, with both set to the same address. Use the decade rotary switches to set the address (i.e. for address '01', position the first [left] switch so the arrow points to '0' and the second [right] switch so the arrow points to '1').
  • Page 27 Installation of Optional Modules with Remote Accessories CAUTION: Remove all power (AC and DC) before installing or removing modules or wiring. LDM-32F Lamp Driver Module The Lamp Driver Module is used to provide an interface to a custom graphic annunciator. The LDM-32F has 32 alarm lamp/LED driver outputs which sink current to system common (-) on activation.
  • Page 28 Installation of Optional Modules with Remote Accessories CAUTION: Remove all power (AC and DC) before installing or removing modules or wiring. AFM-16ATX and AFM-16ATF Annunciators The Annunciator Fixed Modules-16ATX and 16ATF each contain 16 red alarm and 16 yellow trouble LEDs, a system trouble LED, an ON LINE/POWER LED and a local piezo sounder with switches for FACP Acknowl- edge, Silence, Reset and Drill.
  • Page 29 If this opera- tion is desired, cut the TBL jumper on the 4XTMF module. 4XTMF Module Connections FIGURE 2-17: MS-2410BC Main Circuit Board 4XTMF Module Polarities are shown for module activation...

  • Page 30: Chapter 3: Programming Instructions

    Programming Instructions CHAPTER 3 This chapter describes programming the MS-2410BC from the onboard keypad. Programming can be performed only by a factory authorized representative. Control panel programming is possible at any time except when an alarm or zone fault condition is present or during a fire drill.

  • Page 31: Programmable Features And Options

    Programmable Features and Options Table 3-1 lists the MS-2410BC programmable features and the corresponding options available for each feature. In programming mode, the zone alarm LEDs are used to 'point' to the program feature and the zone trouble LEDs are used to select the desired option for each feature.

  • Page 32: Entering Program Mode

    Entering Program Mode Entering Program Mode The keypad is enabled, to allow switching from Normal Mode to any other mode, by inserting the Security Key into connector J4 on the MS-2410BC main circuit board. Programming Security Key - Program Mode FIGURE 3-2:...

  • Page 33: 1: Program Feature Selection

    Refer to Table 3-2, “Program Feature Indicated by Alarm Zone,” on page 37, to see that the Supervisory Alarms feature corresponds to Zone 4 alarm LED. Insert the Security Key into connector J4 on the MS-2410BC main circuit board Security Key...
  • Page 34 Programming Function Using the numerical keys, enter the Program Mode password and press the Enter key Password Enter The 'pointer' will be located at the Zone 1 alarm LED which will be on steady. The 'cursor' will be located at the Zone 1 trouble LED which will blink and one or more additional zone trou- ble LEDs may be on steady Zone 1 Alarm LED...
  • Page 35 Programming Function Press the keypad 3 key (Toggle Option) to select the auto-resettable option. Repeated pressing of the 3 key will toggle between the two available options. Note that in this option, latching is either enabled or disabled. If latching is disabled, the auto- resettable option is automatically selected.
  • Page 36 Programming Function Press the Down arrow key to position the 'cursor' at the Zone 3 trouble LED which corresponds to the Zone 9 Smoke/Supervisory option. Refer to Table 3-6, “Supervisory Alarm - Zone 4 Alarm LED,” on page 39 Press the keypad 3 key (Toggle Option) to select the Supervisory option. The cursor should blink at a 1/10 second On and 9/10 second Off rate.

  • Page 37: Program Features And Options

    Program Features and Options 3.5.1 Program Features There are ten features that are programmable through the MS-2410BC keypad. Table 3-2 lists the programming fea- tures and the alarm zones which represent each feature. Program Feature Indicated by Alarm Zone...
  • Page 38 LED Off = nonsilenceable Walktest The MS-2410BC provides the capability to perform a walktest of the system without triggering the optional ACM-8RF zone relays, the system annunciators or the alarm output relay. Walktest allows the testing of the 10 Initiating Device Circuit zones. An audible or silent walktest may be performed.
  • Page 39 Program Features and Options The Canadian Supervisory option functions in the same manner as the non Canadian Supervisory option except the zone's supervisory alarm LED is yellow. Supervisory Alarm - Zone 4 Alarm LED TABLE 3-6: Trouble Zone LED Number (yellow) Supervisory Alarm Program Options Enable Latching (factory default) = Zone 9 latching - LED On Disable Latching = Zone 9 auto-resettable - LED Off...
  • Page 40 Eighteen (18) Hours Module Supervision Enabled Two option modules may be installed in the MS-2410BC control panel: the Reverse Polarity Module and LED-10IM (EIA-485) Module. When any module is installed, module placement supervision must be 'enabled' (LED On) for the particular module(s). In addition, when the Reverse Polarity Module is installed, jumper JP1 must be cut on the main circuit board.
  • Page 41 Program Features and Options LDMs, LED-10 series and ACM-8RFs, be certain that none of the other devices are set to address 01. For proper supervision of all annunciators, only one AFM series annunciator (fixed at address '01') should be installed. Annunciator Addressing - Zone 8 Alarm LED TABLE 3-10: Zone Trouble LED Number (yellow)

  • Page 42: Default Programming Mode

    Default Programming Mode Default Programming Mode The original factory default options can be programmed into the MS-2410BC by entering Default Programming Mode. The keypad is enabled, to allow switching from Normal Mode, by inserting the Security Key into connector J4 on the MS-2410BC main circuit board.

  • Page 43: Chapter 4: Operating Instructions

    Switch Functions in Normal Mode Acknowledge An Acknowledge key is located on the MS-2410BC keypad (refer to Figure 4-1), and may be remotely located on any of the LED-10 annunciators, the LDM graphic annunciators, or the AFM series annunciators. The Acknowl- edge key silences the system piezo sounders and changes all flashing system LEDs to steady.

  • Page 44: Status Leds

    Status LEDs Disable/Enable The zone disable feature may be used to disable any zone in the system. Zones in alarm cannot be disabled but zones in trouble can be disabled. To disable one or more zones, press and hold the Disable/Enable key. After two seconds, the FACP will enter Disable/Enable Mode.

  • Page 45: Operation

    Operation Supervisory LED (Zones 9 and 10 Only) A yellow LED that blinks to indicate the need for action in connection with the supervision or maintenance of sprinklers, extinguishing systems or other protective systems. It turns on steady when a Signal Silence or Acknowledge key is pressed.

  • Page 46: 1: Fire Alarm Response

    Operation Higher priority events take precedence over lower priority events. Display and reporting of System Status is done on a priority basis. Priorities are, from highest to lowest: Alarms Supervisory Alarms System Troubles 4.3.1 Fire Alarm Response The control panel will, upon detection of an alarm condition, cause the following: •...

  • Page 47: 4: System Supervisory Restoral Response

    Operation • Turn on supervisory relay • Blink all remote annunciator general supervisory alarm LEDs (½ second On, ½ second Off) • Blink all remote annunciator zone supervisory alarm LEDs (½ second On, ½ second Off) 4.3.4 System Supervisory Restoral Response When the supervisory condition has been cleared and the reset key has been pressed (if zones are programmed for latching), the control panel will perform the following: •...

  • Page 48: Chapter 5: Servicing

    CHAPTER 5 Walktest Mode The MS-2410BC provides the capability to perform a walktest of the system without triggering the ACM-8RF zone relays, the system annunciators or the alarm output relay. Walktest Mode allows for testing of the 10 zones (initiating device circuits).

  • Page 49: Last Event/History Mode

    This also prevents triggering of a false alarm. To return the control panel to Normal Mode, remove the Security Key from connector J4 on the MS-2410BC main cir- cuit board. Remove the programming key function label and reinsert the Normal Mode label C.

  • Page 50: Lamp Test

    Reverse Polarity Module System Trouble LED To return the control panel to Normal Mode, remove the Security Key from connector J4 on the MS-2410BC main circuit board. Remove the programming keys function label and reinsert the Normal Mode label C.

  • Page 51: Appendix A: Battery Calculations

    Battery Calculations Battery Calculations Appendix A Use the Total Standby and Alarm Load Currents calculated in Table A-2 and Table A-3 for the following battery calculation. Battery Calculation TABLE A-1: Standby Load Required Standby Time in Hours Current (amps) (24 or 60 Hours) _______________ Alarm Load Required Alarm Time in Hours...

  • Page 52: A.1: Main Power Supply

    Battery Calculations A.1 Main Power Supply The MS-2410BC provides filtered power for operating the fire alarm control panel, operating external devices and operating the standby battery. The power for operating external devices is limited. Use Table A-2 (standby or non- alarm) and Table A-3 (alarm) to determine if external loading is within the capabilities of the power supply.
  • Page 53 Battery Calculations @24 VDC Filtered Load in Alarm TABLE A-3: # of Current Total Current Device Type Devices (amps) (amps) Main Circuit Board 0.245 0.245 RTB Remote Trouble Buzzer (1 max.) 0.050 LED-10IM (1 max.) 0.017 4XTMF Module (1 max.) 0.011 4-wire Smoke Detector 0.025...

  • Page 54: Appendix B: Wire Requirements

    Connecting external system accessories to the MS-2410BC main circuits must be carefully considered to ensure proper operation. It is important to use the correct type of wire, wire gauge and wire run length per each MS-2410BC circuit. Reference the chart below to specify wire requirements and limitations for each MS-2410BC.

  • Page 55: Appendix C: Slide-In Labels

    Appendix C The spare slide-in labels on the following pages are provided for the MS-2410BC keypad and display panel in the event that the original labels are lost or damaged. The labels may be cut from the manual or photo-copied and then carefully cut out and inserted into the proper location, as indicated in Figure C-1.
  • Page 56 Slide-in Labels Document #50801 Rev.B 8/17/98 P/N 50801:B...
  • Page 57 Slide-in Labels Normal Mode Slide-in Labels Type appropriate information on blank Label A prior to cutting from page. Typed entries must be centered and typed on the lines provided to ensure proper positioning in the membrane windows. Be certain to cut labels directly on dotted lines to ensure proper fit.
  • Page 58 Slide-in Labels Document #50801 Rev.B 8/17/98 P/N 50801:B...
  • Page 59 Slide-in Labels Program Mode Slide-in Labels Be certain to cut labels directly on dotted lines to ensure proper fit Label A - Program Mode Label C - Program Mode Auto Silence Silenceable NACs Walk Test Supervisory Alarm Alarm Verification AC Loss Delay Module Supervision Toggle Option 3 Annunc.
  • Page 60 Slide-in Labels Document #50801 Rev.B 8/17/98 P/N 50801:B...
  • Page 61 Notes Document #50801 Rev. B 8/17/98 P/N 50801:B...
  • Page 62 Notes Document #50801 Rev.B 8/17/98 P/N 50801:B...
  • Page 63 Notes Document #50801 Rev. B 8/17/98 P/N 50801:B...
  • Page 64 Fire-Lite Fire-Lite Fire-Lite Fire-Lite manufacturing date-stamp control, the warranty is ® ® ® ® ® eighteen (18) months from date of original purchase by Fire-Lite Fire-Lite Fire-Lite Fire-Lite Fire-Lite 's distributor unless the installation instructions or catalog sets forth a shorter period, in which case the shorter period shall apply.
