Capturing Images

CN4 Mobile Computer User's Manual
The Data Collection Resource Kit includes .NET classes you use in
your image capture applications. For more information, see
"Developing Applications for the CN4" on page 72.
The CN4 includes Image Capture, a utility application that
demonstrates this feature.

Using the Image Capture Application

1 Tap Start > Programs > Image Capture.

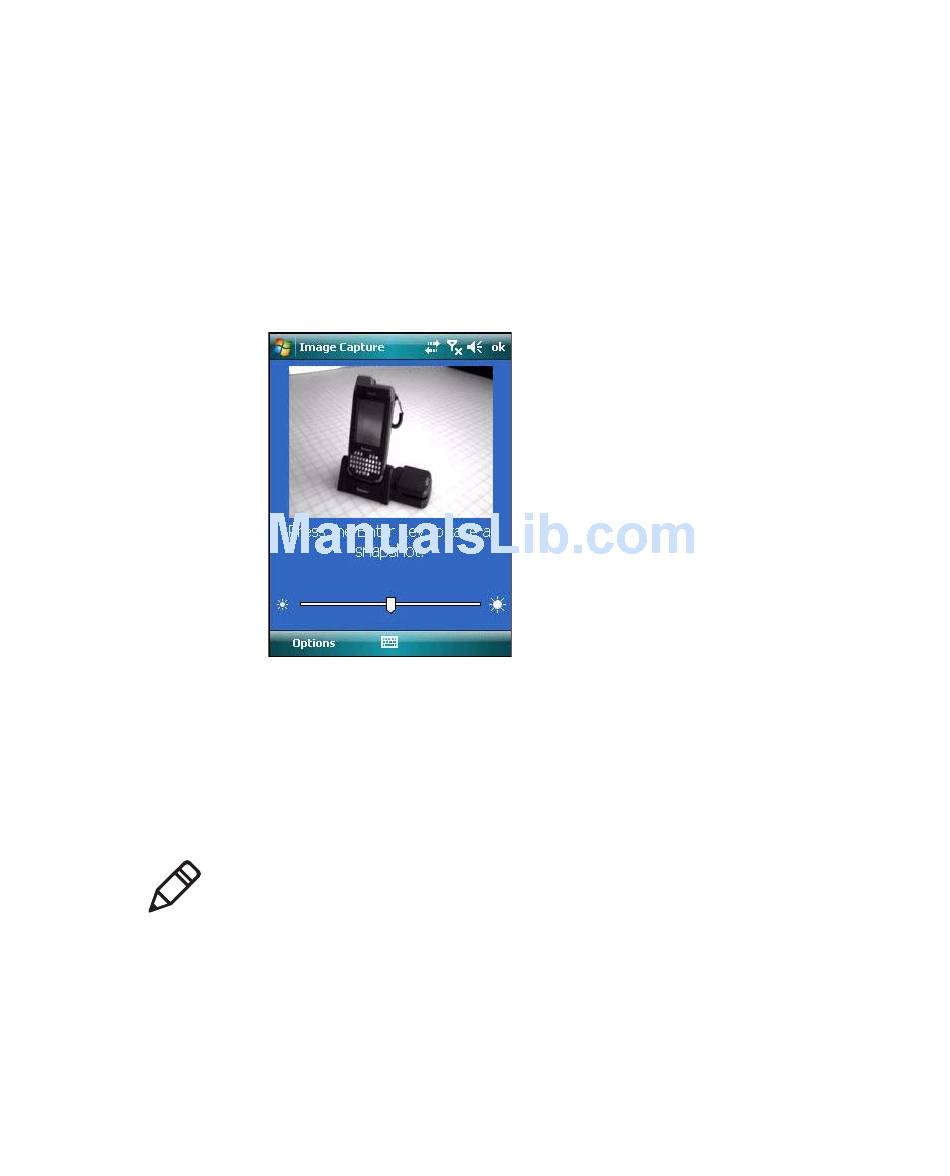

The Image Capture main screen shows streaming video from the
imager.
2 (Optional) Adjust the Contrast slider for the best image:
• For brightly lit environments, move the slider to the right.
• For dark areas, move the slider to the left.
Note: For best results, move the slider a little at a time until you
see a change in the onscreen image.
3 Point the CN4 at the subject for the image and press Enter. The
image appears.
