Intermec CN51 Frequently Asked Questions Manual

Note: Some features described
in this document are planned
for future support under
Android and may be not
available at first release.

Frequently Asked Questions

CN51 Mobile Computer
CN51

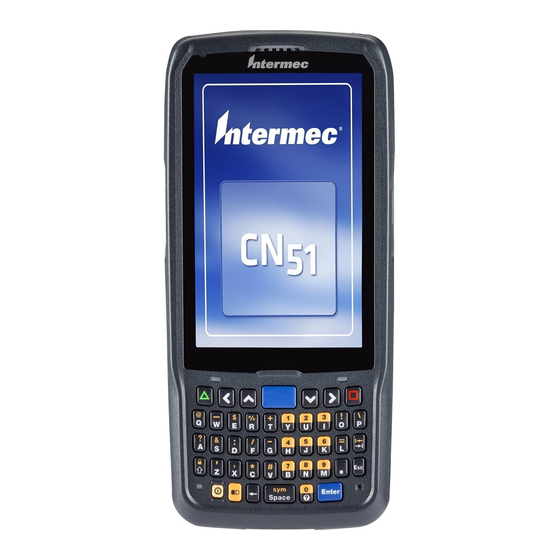

Q: What is the CN51?
A: The CN51 is Intermec's first rugged mobile computer product to offer the choice of Windows®
or Android™ operating systems on a single device. Designed for flexible application support, this
next-generation mobile computing solution offers unparalleled versatility with support for
Windows Embedded Handheld 6.5 and Android 4.1, and is primed for use in direct store delivery,
transportation and logistics and field service operations.
Q: What are the key dimensions of the CN51?
A: 16.4 x 7.4 x 2.8 cm (base of unit) 3.2 cm (top of unit) (6.45 x 2.93 x 1.09-1.26 in);
measurements are L x W x D. Weight with battery: 350 g (12.3 oz).
Q: Is there a WiFi-only option for the CN51?
A: Yes, CN51 includes a WiFi-only (WLAN-only) option. The WLAN radio is IEEE®802.11 a/b/g/n on
devices without a Wireless WAN radio, and IEEE®802.11 b/g/n on cellular devices. Support for this
feature under Android is planned for a future release.
Q: Is there an imager/scanner option for the CN51?
A: Yes, CN51 includes an integrated imager/scanner option. There are three options for imagers
with the CN51: the EA30 high performance motion-tolerant 2D imager with a laser Class 2 aimer
and framer, the EA31 high performance motion-tolerant 2D imager with a LED Class 1 aimer, and no
imager. Support for the no-imager option under Android is planned for a future release.
Q: Is there a camera option for the CN51?
A: Yes, CN51 includes an integrated camera option. It is a 5 megapixel, auto focus color camera with
LED flash, capable of both still photography and video capture.
Q: Does the CN51 have RFID capabilities?
A: No, the CN51 does not have integrated or external (such as a snap-on adapter) RFID capabilities
at this time.
Q: Will there be a non-incendive (NI) version of the CN51?
A: No, there are no plans at this time to offer a NI version of the CN51.
Environmental
Q: Can CN51s be used in harsh environments?
A: Yes they can. The CN51 represents Intermec's mid-tier rugged mobile computer space. They
are IP64 seal rated for rain and dust and can operate from -10C to +50C (+14F to +122F). Each
CN51 configuration boasts a drop spec of 26 drops from 1.5 m (5 ft) to concrete across the
operating temperature range per MIL-STD 810G, as well as withstanding 1000 tumbles at 0.5 meter
per IEC 60068-2-32.
Display / Touch Panel
Q: What's different about the CN51 display and touch panel?
A: The CN51 has a 10.16 cm (4.0 in) transmissive WVGA (480 x 800 pixels) display. It supports 24 bpp
color depth and has LED backlighting. It has an ambient light sensor that automatically adjusts
the backlight to accommodate lighting variables. The CN51 is also the first product the industry
to incorporate a muti-touch resistive touch panel. The resistive multi-touch technology (vs. the
capacitive touch panels on most smartphones) works in real job conditions such as when it gets
wet from being out in the rain, it works when the user is wearing gloves, it can capture more legible
signatures with a "common" stylus/pen, and you can zoom in and out with maps and documents
using your thumb and finger.
