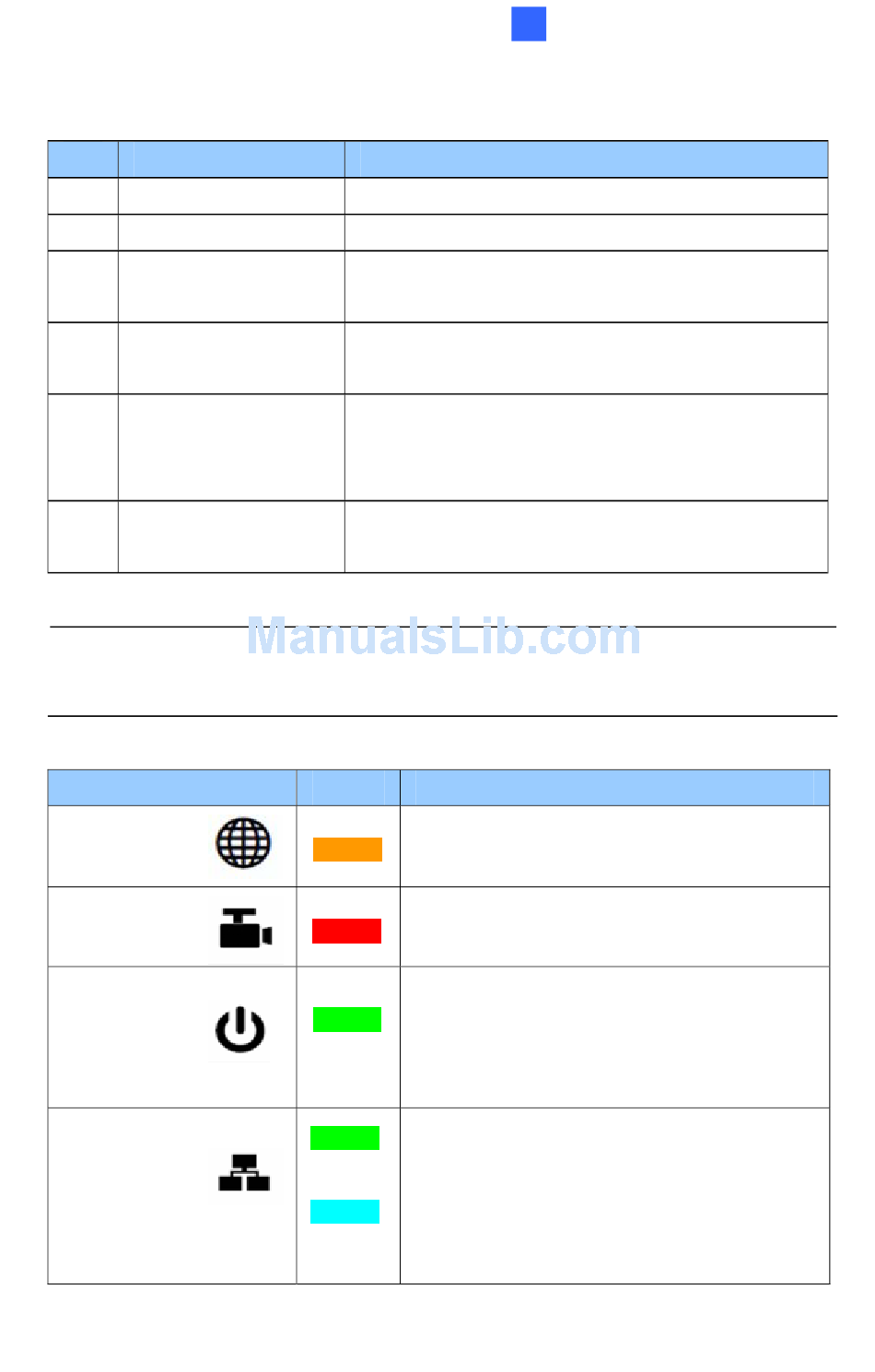

No. Name
8 Stand screw
9 Power port
10 Ready LED
11 LAN LED
12 Memory Card Slot
13 Default
IMPORTANT: The White Illumination LED can reach high temperatures.
Be sure not to touch the LED with bare hand.
LED
Live View
Monitoring
Ready
LAN
Description
Connects to the Supporting Rack.
Connects to the power adapter.
Reflects system status of the camera. See
the below table.
Reflects LAN status of the camera. See the
below table.
Inserts a micro SD card (SD/SDHC,
version 2.0 only, Class 10) to store
recording data.
Resets the camera to factory default. For
details, see 6.6 Loading Factory Default.
Status Description
•
Turns on orange light when you
see the live view.
•
Turns on red light when you start
monitoring.
•
Turns on green light when the
system is ready.
•
Flashes green light when you
load default value.
•
Turns on green light when you
connect the LAN Network.
•
Turns on blue light when you
connect the Wi-Fi Network (for GV-
CAW120 / 220 only).
Advanced Cube Camera
6
