1.3.2 GV-MFD1501 Series / 2401 Series / 2501 Series /
3401 Series / 5301 Series
1
No. Name
1 Microphone
2 Pan Screw
3 Lens
4 Tilt Screw
5 Default Button
6 DC 5V Power Port
7 LAN / PoE
8 Memory Card Slot
9 USB and Audio Out
Mini Fixed & Rugged Dome
1
2
3
4
6
5
7

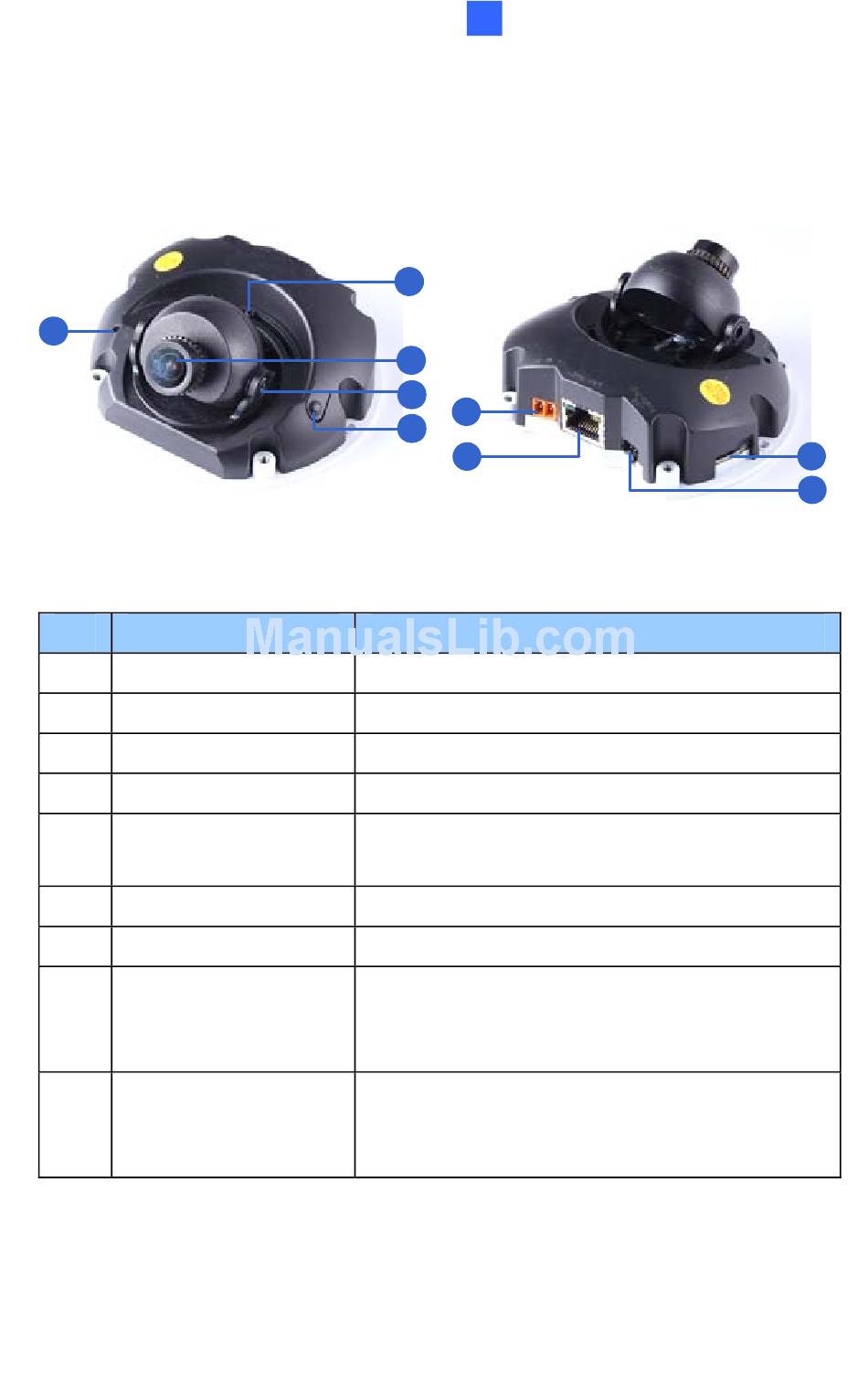

Figure 1-2
Description
Receives sound.
Loosens the screw to pan.
Receives image inputs.
Loosens the screw to adjust tilt angle.
Resets the camera to factory default. For
details, see 1.6 Loading Factory Default.
Connects to power.
Connects to a 10/100 Ethernet or PoE.
Inserts a micro SD card (SD/SDHC,
version 2.0 only, Class 10) to store
recording data.
Connects to a GV-WiFi Adapter/USB hard
drive and a speaker through the supplied Y
cable.
8
9
11
