14. Drill the marks and insert the screw anchors.

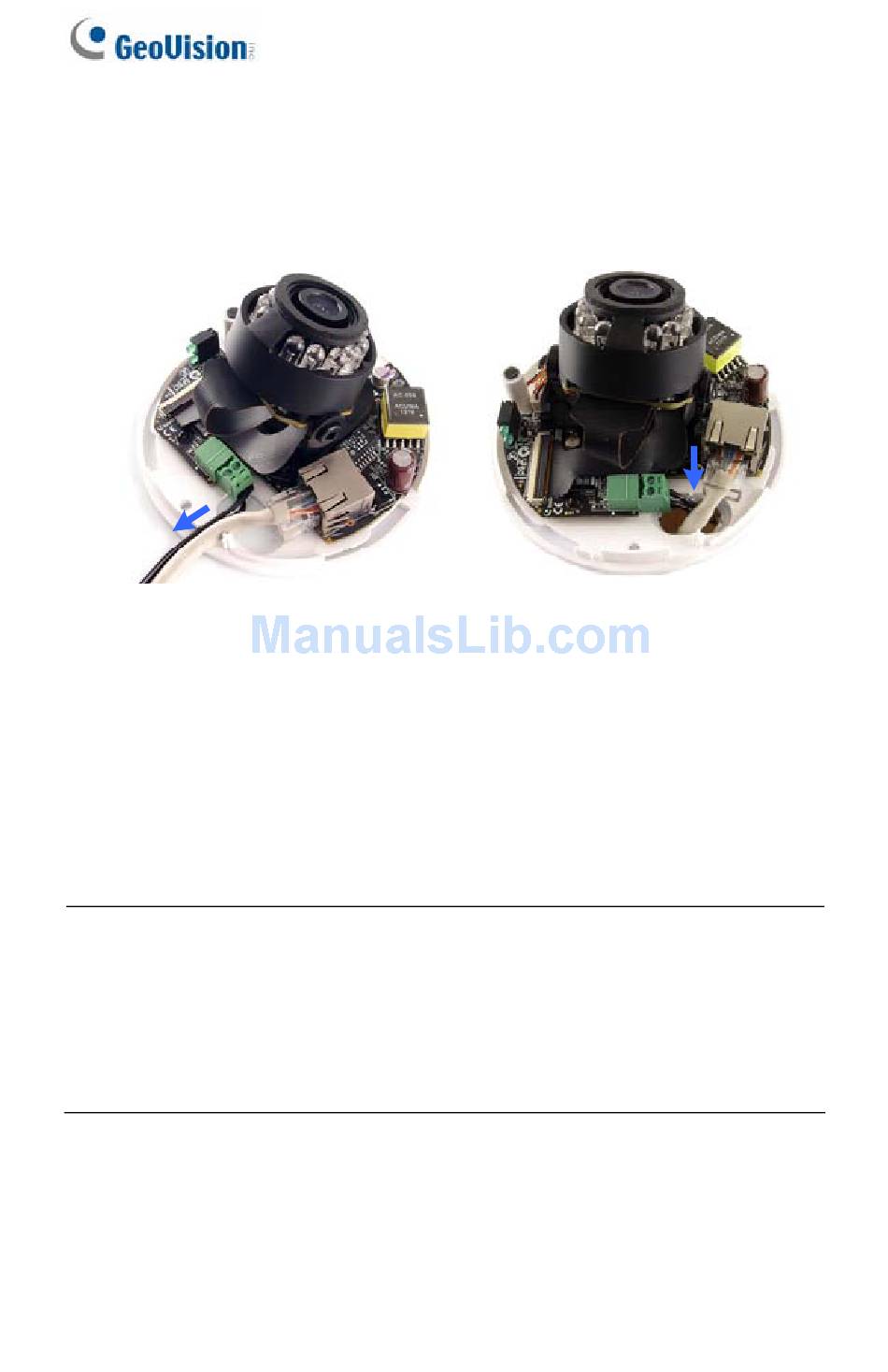

15. Thread the power and / or network cable(s) through the oval-shaped
hole or the cable opening on the side.
16. Connect the camera to network and power. For details, see 3.5
Connecting the Camera.
17. Secure the camera to the ceiling or the wall with the supplied screws.
18. Access the live view. For details, see 3.1 Accessing the Live View,
GV-IPCam Firmware Manual.
Note: The TV-out function can only be used during installation to adjust
the focus of the camera. To use the TV out function, connect the
supplied black BNC connector to a monitor and select your signal format
(NTSC or PAL) at the TV Out field on the Web interface. The default
signal format is NTSC. For details, see 4.1.1 Video Settings, GV-IPCam
Firmware Manual.
19. Adjust image clarity using the GV-IP Device Utility program. For
details, see 2.2 Adjusting Image Clarity, GV-IPCam Firmware Manual.
46
Figure 3-4
