GeoVision GV-IPCam Hardware Manual page 69

7. Remove the waterproof cap from the cable opening and thread the
power and / or network cable(s) through the opening.

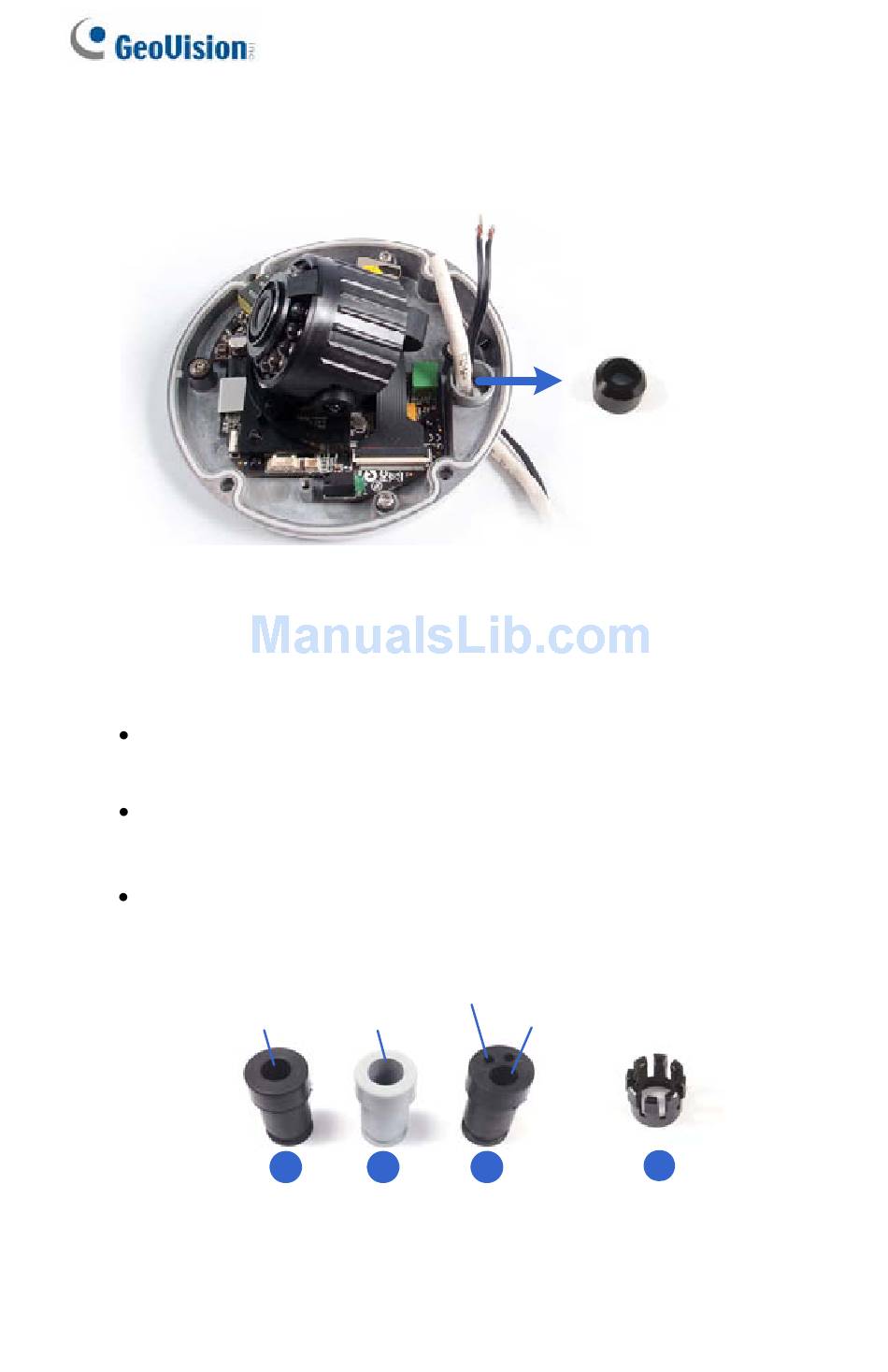

8. Install the supplied waterproof rubber set onto the cable(s). The
rubber set has two parts. According to the below situation, replace
Part 1 if necessary.
For users of PoE with a Cat.5 Ethernet cable, stay with Part 1a
on the camera body.
For users of PoE with a Cat.6 Ethernet cable, change Part 1a to
the supplied Waterproof rubber set (1b).
For users of DC 12V, change Part 1a to the supplied Waterproof
rubber set (1c).
For Cat.5 Ethernet
cable (PoE)
58
Figure 4-6
For Cat.6 Ethernet
cable (PoE)
1a 1b
Figure 4-7
For adapter wire
For Ethernet cable
1c
2
