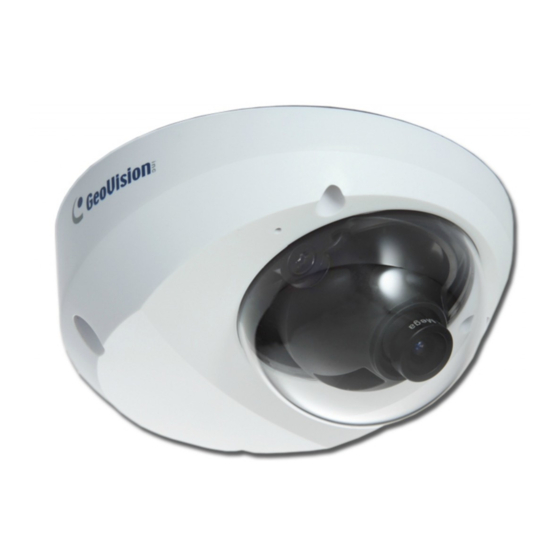

GeoVision GV-MFD1501 Specifications
1.3mp h.264 super low lux wdr mini fixed dome
Hide thumbs
Also See for GV-MFD1501:
- User manual (723 pages) ,
- Firmware user manual (275 pages) ,
- Firmware manual (257 pages)
Advertisement
Quick Links
Download this manual
See also:
User Manual
GV-MFD1501
Introduction
The GV‐MFD1501 Series offers an indoor, fixed, mini‐sized network camera with various lens options. The
camera is equipped with a Super Low Lux CMOS image sensor with which the camera is capable of providing a
color live view in near darkness. The camera's USB port which supports wireless connection through GV‐WiFi
Adapter (optional) or an external storage using a USB hard drive
Active Tampering Alarm
Tampered
Models
Models
MFD1501‐0F
MFD1501‐1F
MFD1501‐2F
MFD1501‐3F
MFD1501‐4F
GV-MFD1501 Series
1.3MP H.264 Super Low Lux WDR Mini Fixed Dome
Iris
Fixed
1.3 Megapixel Progressive Scan super low lux CMOS
Min. illumination at 0.01 lux
Dual streams from H.264 and MJPEG
Up to 30 fps at 1280 x 1024
Day and night function (electronic)
USB slot for GV‐WiFi Adapter or USB hard drive
Built‐in micro SD card slot (SD/SDHC) for local storage
Active Tampering alarm
Wide Dynamic Range (WDR)
3D DNR (Digital Noise Reduction)
Two‐way audio
Defog
Motion detection
Privacy mask
IP address filtering
iPhone, iPad, Android
DC 5V / PoE
Megapixel lens
Supports iPhone, iPad, Android & 3GPP
31 languages on Web interface
ONVIF (Profile S) conformant
* No Memory card slot & local storage function for Argentina.
.
Focus Change
Focal Length (mm)
Maximum Aperture
3 mm
4 mm
8 mm
12 mm
2.1 mm
- 1 -
Camera Shift
Image Format
F/2.0
F/1.5
1/3"
F/1.6
F/1.8
January 17, 2014
Advertisement
Related Manuals for GeoVision GV-MFD1501
Summary of Contents for GeoVision GV-MFD1501
- Page 1 Adapter (optional) or an external storage using a USB hard drive Active Tampering Alarm Tampered Focus Change Camera Shift Models Models Iris Focal Length (mm) Maximum Aperture Image Format MFD1501‐0F 3 mm F/2.0 MFD1501‐1F 4 mm F/1.5 MFD1501‐2F Fixed 8 mm 1/3” F/1.6 MFD1501‐3F 12 mm MFD1501‐4F 2.1 mm F/1.8 - 1 - GV-MFD1501 Series January 17, 2014...
-
Page 2: Specifications
* The frame rate and th e performance may vary depending on the number of connections and data bitrates (different scenes). Brightness, Contras t, Sharpness, Gamma, White Balance, Flicker‐less 50/60 Hz, Image Orientation, Shutter Image Setting Speed, Backlight Compensation , WDR , Defog, Super Low Lux Audio Compression G.711 Sensor Input No Alarm Output No deo Resolution 4:3 1280 x 960, 640 x 480, 320 x 240 Main Stream 16:9 1280 x 720, 640 x 360, 448 x 252 5:4 1280 x 1024, 640 x 512, 320 x 256 4:3 640 x 480, 320 x 240 Sub Stream 16:9 640 x 360, 448 x 252 5:4 640 x 512, 320 x 256 - 2 - GV-MFD1501 Series January 17, 2014... - Page 3 Language Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish Applications Network Storage GV‐NVR, GV‐System, GV‐Backup Center, GV‐Recording Server GV‐Eye for Android smartphone, tablet, iPhone, and iPod Touch Smart Device Access GV‐Eye HD for iPad Live Viewing IE, mobile phone CMS Server support GV‐Control Center, GV‐Center V2, GV‐VSM Note: 1. Mind the following limitations and requirements for the USB port: The USB hard drive must be of 2.5’’ or 3.5’’, version 2.0 or above The USB hard drive’s storage capacity must not exceed 2TB USB flash drives and USB hubs are not supported External power supply is required for the USB hard drive To connect the GV‐WiFi Adapter, make sure it is connected before the camera is powered on. 2. Specifications are subject to change without notice. - 3 - GV-MFD1501 Series January 17, 2014...
-
Page 4: Packing List
GV‐NVR Quick Start Guide Cable Stopper x 1 GV‐NVR Software DVD Short‐Body RJ‐45 Plug Accessories Model No./Name Details GV‐Mount900 Wall Mount Bracket Dimensions: 154 x 108 x 50 mm (6.1’’ x 4.3’’ x 2”) Weight: 240 g (0.53 lb) GV‐Mount909 Wall Mount Bracket Dimensions: 170 x 150 x 110 mm (6.7’’ x 5.9” x 4.3’’) Weight: 610 g (1.34 lb) GV‐Mount910 Power Box Mount Bracket Dimensions: 112 x 98 x 7.5 mm (4.4’’ x 3.9’’ x 0.3’’) Weight: 105 g (0.23 lb) GV‐Mount913 Power Box Mount Bracket Dimensions: Ø 146 x 7.5 mm (Ø 5.7’’ x 0.3’’) Weight: 180 g (0.4 lb) GV‐PA191 PoE Adapter Weight: 130 g (0.29 lb) Dimensions (H x W x D): 43 x 69 x 40 mm (1.69” x 2.72” x 1.57”) Power Adapter Power adapters are available in 4 regions: U.S.A., Australia, U.K and Europe. GV‐POE Switch The GV‐POE Switch is designed to provide power along with network connection for IP devices. The GV‐POE Switch is available in various models with different numbers and types of ports. - 4 - GV-MFD1501 Series January 17, 2014... - Page 5 Model No./Name Details Weight: 20 g (0.04 lb) GV‐WiFi Adaptor Dimensions: 15 x 15 x 155 mm (0.59’’ x 0.59’’ x 6.10’’) Supplied with mini USB to standard USB adapter. - 5 - GV-MFD1501 Series January 17, 2014...
