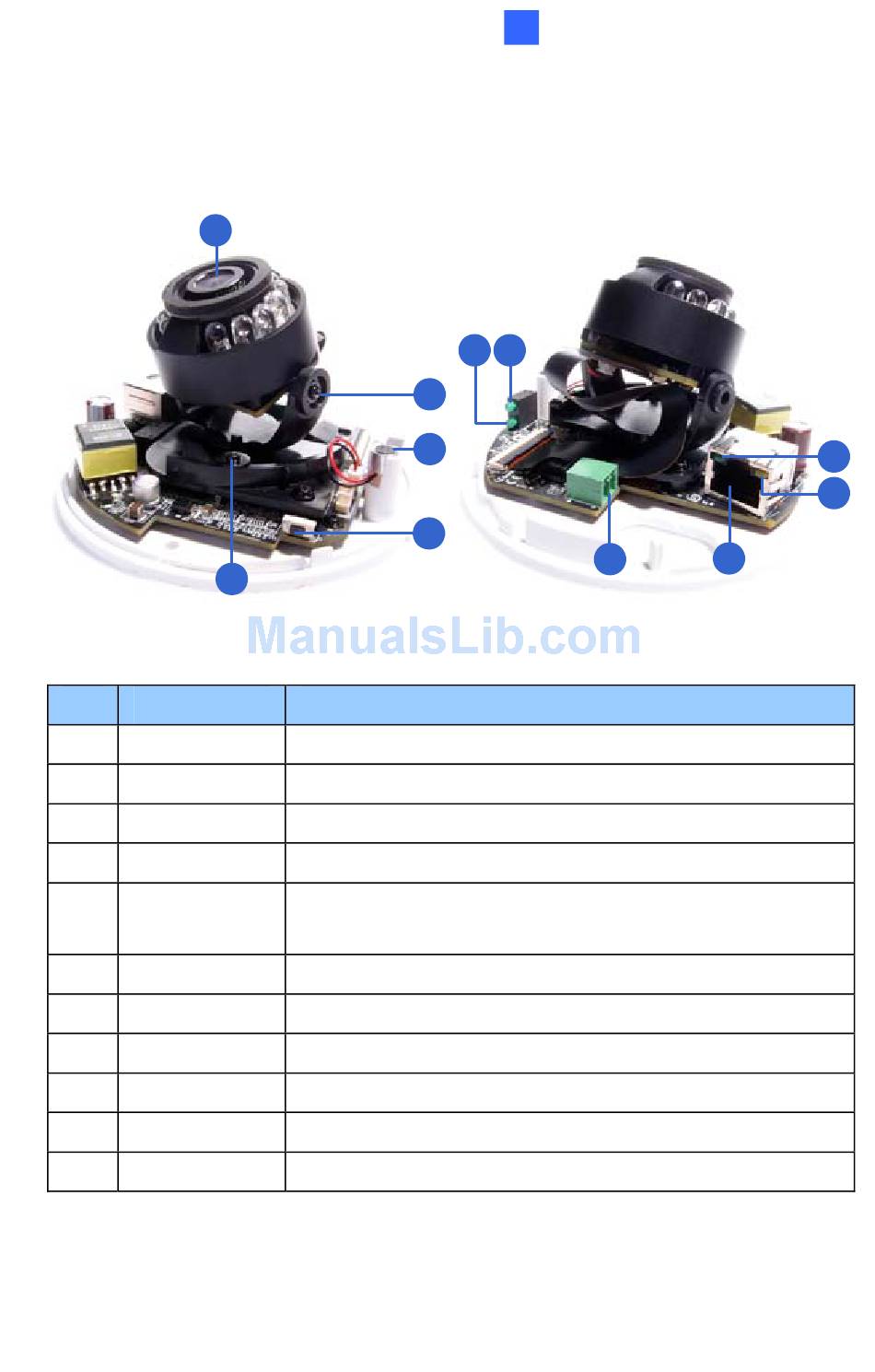

3.3 Overview

1
No. Name
1 Lens
2 Pan Screw
3 Tilt Screw
4 Microphone
Default
5
Button
6 DC 12V Port
7 LAN / PoE
a Status
b Power
c Link
d ACT
2
Figure 3-1
Description
Receives image inputs.
Loosens the screw to adjust pan angle.
Loosens the screw to adjust tilt angle.
Receives sound.
Resets the camera to factory default. For details,
see 3.6 Loading Factory Default.
Connects to power.
Connects to a 10/100 Ethernet or PoE.
Turns on (green) when the system is ready.
Turns on (green) when power is on.
Turns on (green) when the network is connected.
Turns on (orange) when data are being transmitted.
Target Mini Fixed Dome
