GeoVision GV-IPCam Hardware Manual page 70

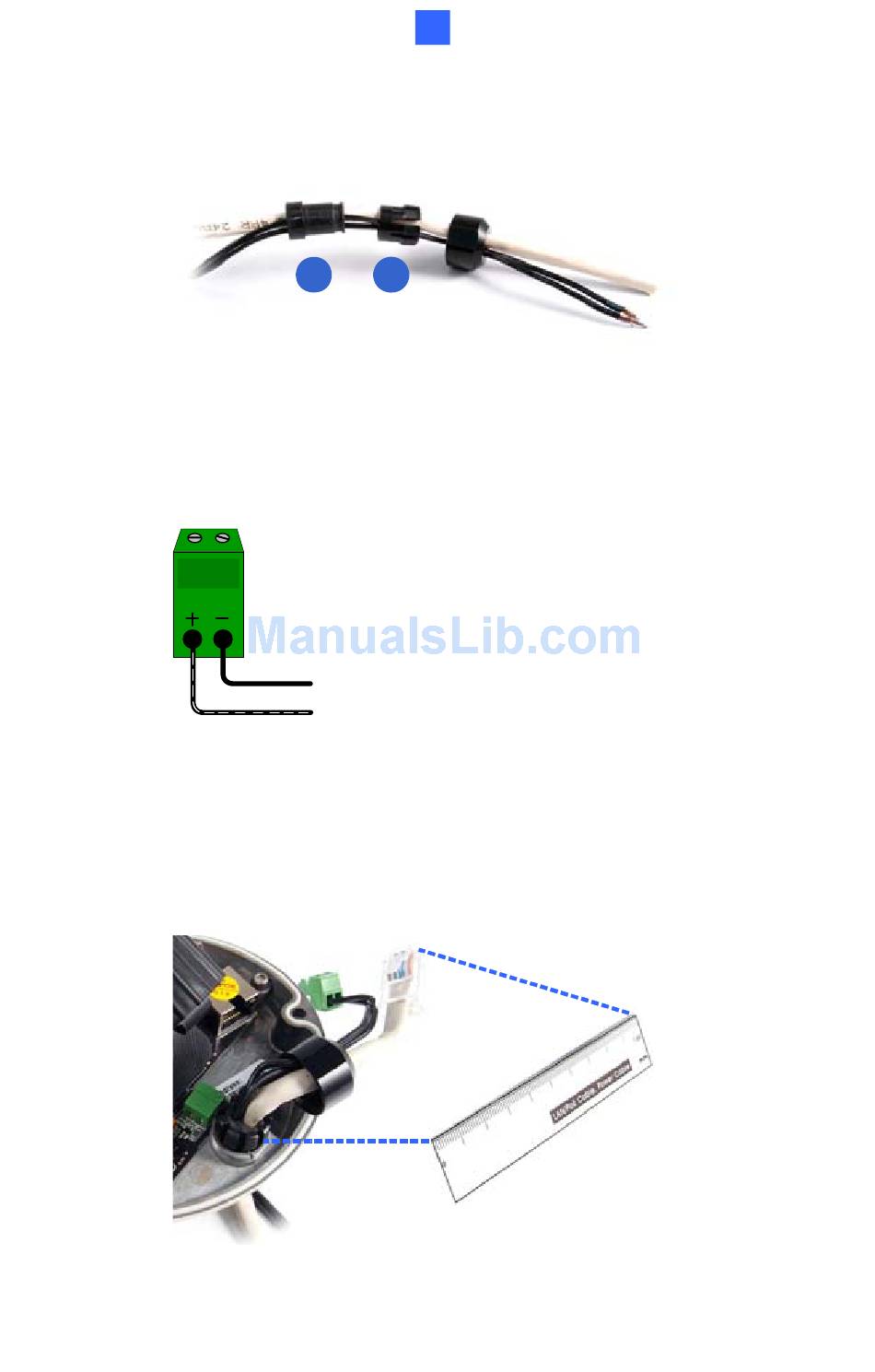

A. Slide the waterproof rubber set, and the waterproof cap you
previously removed through the cable(s) as shown below.
B. Connect the supplied RJ-45 connector to the Ethernet cable.
C. If you are using a power adapter, insert the striped wire to the
left pin (+) and the other wire to the right pin (-).
Figure 4-9
D. Fit item 1 to item 2, and insert them in the cable opening. Use
the supplied ruler to make sure the length of the cable(s) from
the bottom of the opening to the end of the cable is under
10 cm.
Target Mini Fixed Rugged Dome
4
1 2
Figure 4-8
Figure 4-10
