Front panel LEDs

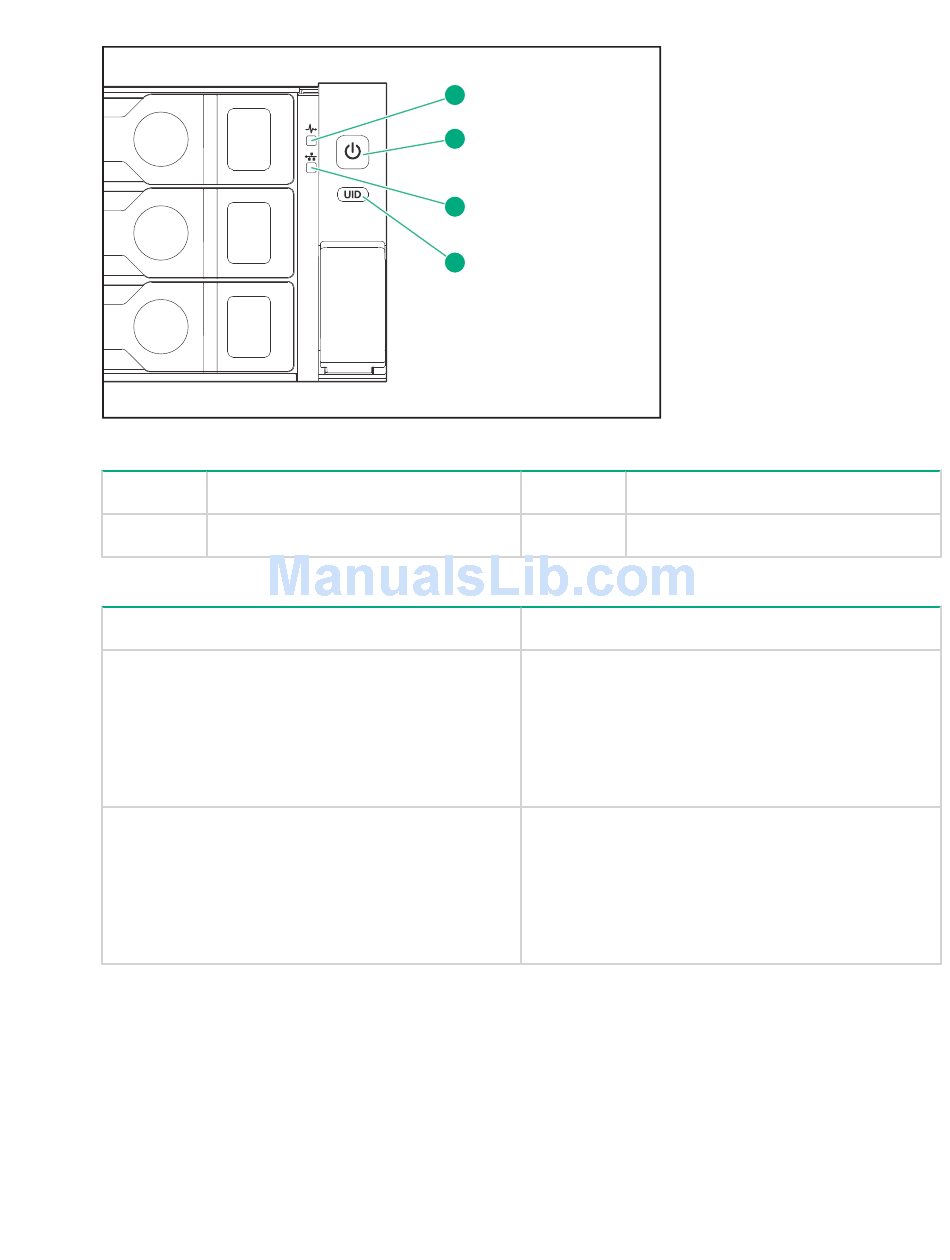

Figure 7: Front panel LEDs for HPE StoreOnce 3500 Series and HPE StoreOnce 5100 System
1
System health LED
3
NIC status LED
Front panel LEDs and buttons behavior
Description
Health LED*
Power-on/Standby button and system power LED*
1
2
3
4
2
4
Status
Solid green = Normal
Flashing green (1 Hz/cycle per sec) = iLO is
rebooting
Flashing amber = System degraded
Flashing red (1 Hz/cycle per sec) = System critical**
Solid green = System on
Flashing green (1 Hz/cycle per sec) = Performing
power-on sequence
Solid amber = System in standby
Off = No power present†
Power LED and on/off button
UID LED
Front panel LEDs
Table Continued
