RAID controller component overview

All HPE StoreOnce Systems described within this guide use the p1224 RAID controller fitted with a RAID
cache module and SuperCapacitor. Each model has a single RAID controller.
The RAID cache module is seated on the RAID card and has one port to connect to the SuperCapacitor
(which is located in the center of the unit, clipped to the floor of the chassis behind the disk cage).
HPE StoreOnce 3500 Series and HPE StoreOnce 5100 System also have a SAS Expander card.
NOTE:
The locations of RAID cards and the internal SAS cabling configuration are also shown on the
StoreOnce hood label inside the server.

Part numbers

Replacement spares part numbers for the p1224 card, SuperCapacitor module, and SAS expander card are
as follows:
• HP p1224 RAID controller with 1GB cache module: 842475-001 (minimum firmware revision = 2.50)
• SuperCapacitor: 660093-001
• SAS expander card (not used with HPE StoreOnce 3100 System): 761879-001
For information about the part numbers for replacement internal SAS cables, see Internal SAS cabling on
page 51.

Internal SAS cabling

HPE StoreOnce 3100 System internal SAS cabling

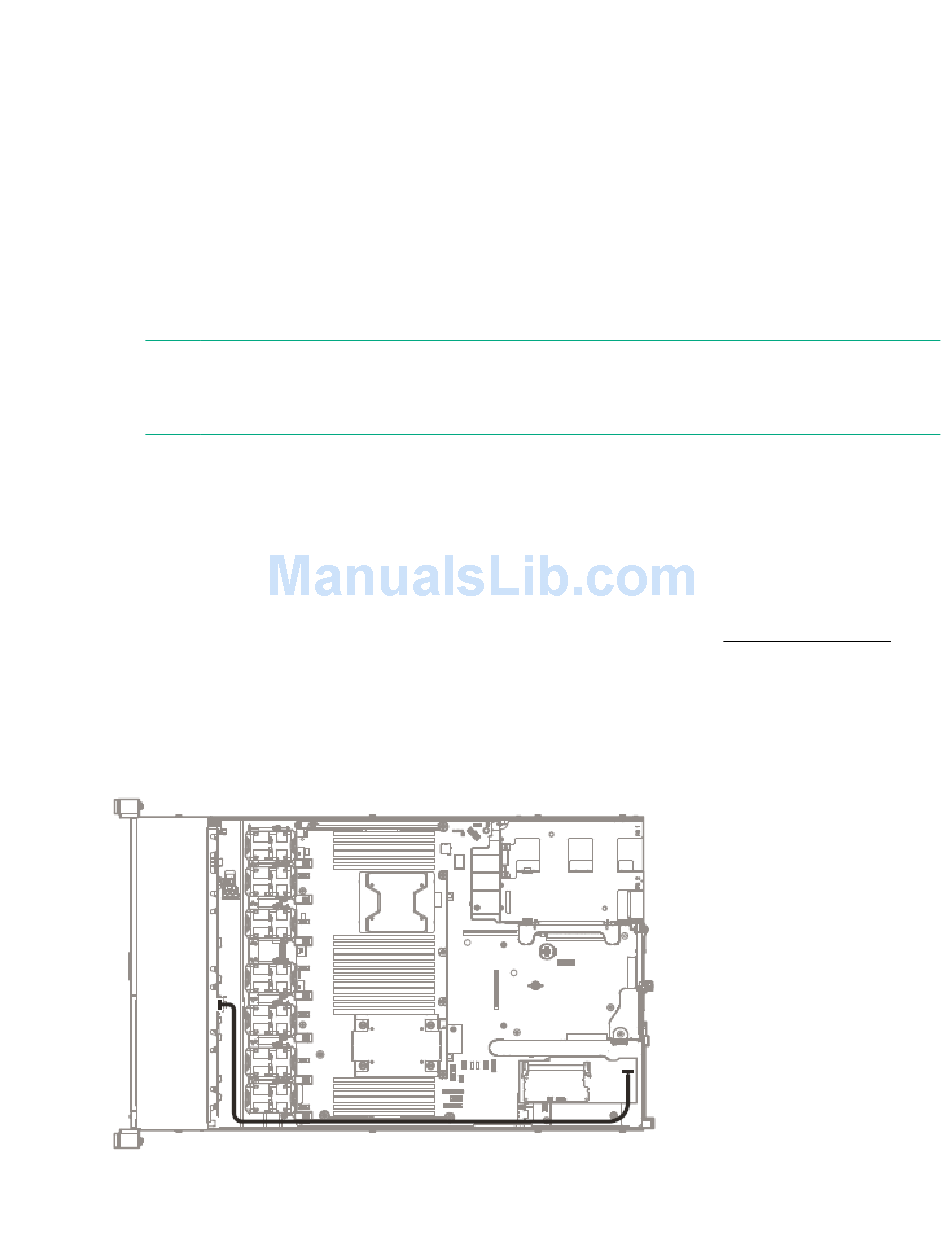

Figure 18: Internal SAS cabling for HPE StoreOnce 3100 System
