HPE StoreOnce 3100 mechanical and system components

1
2

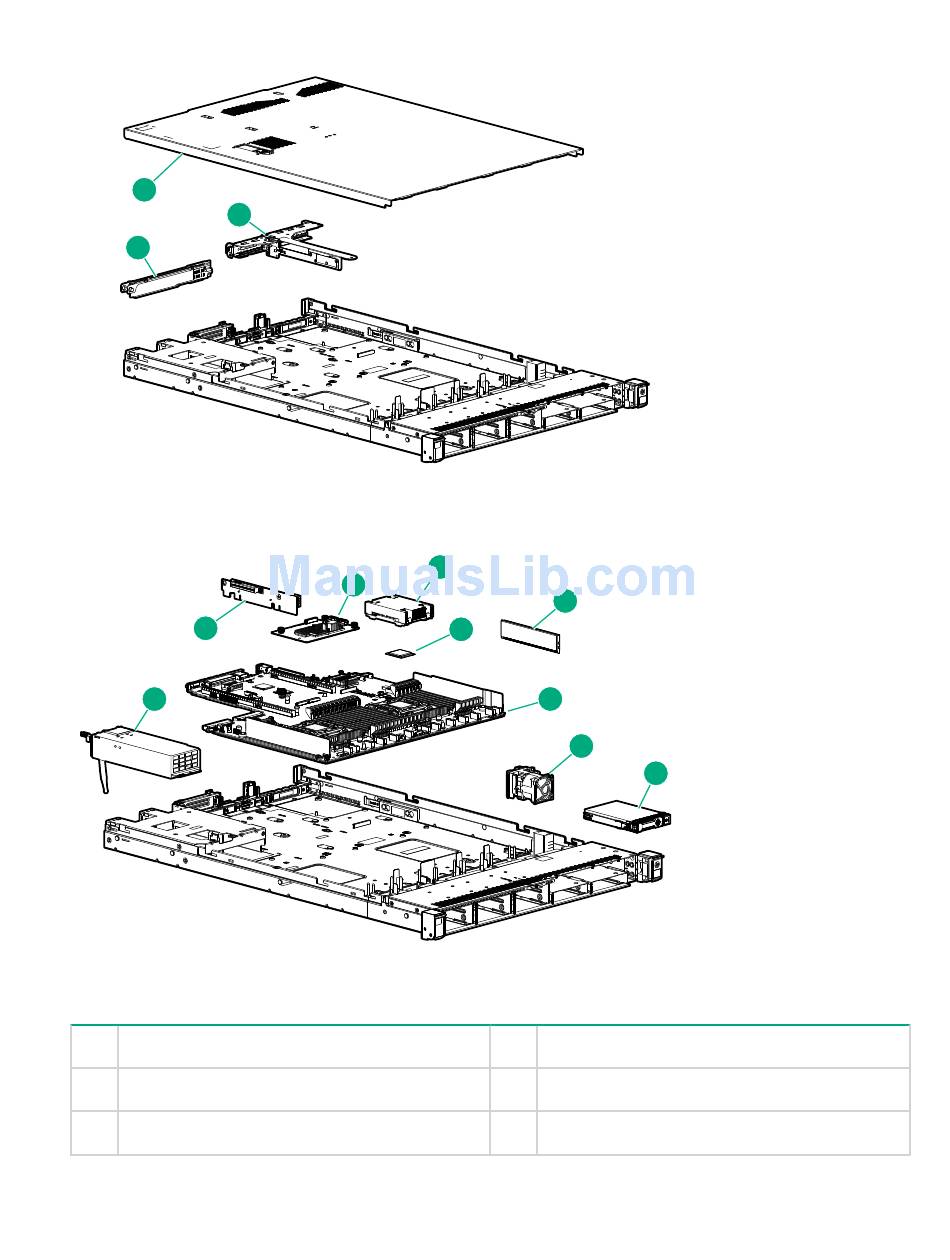

Figure 1: HPE StoreOnce 3100 mechanical components
4
Figure 2: HPE StoreOnce 3100 system components
1 Access panel
3 PCI riser cage
5 PCIe riser boards
8 HPE StoreOnce 3100 mechanical and system components
3
6
5
7
9
8
10
11
2 PCI riser blank
4 Hot plug power supply
6 Controller options
12
Table Continued
