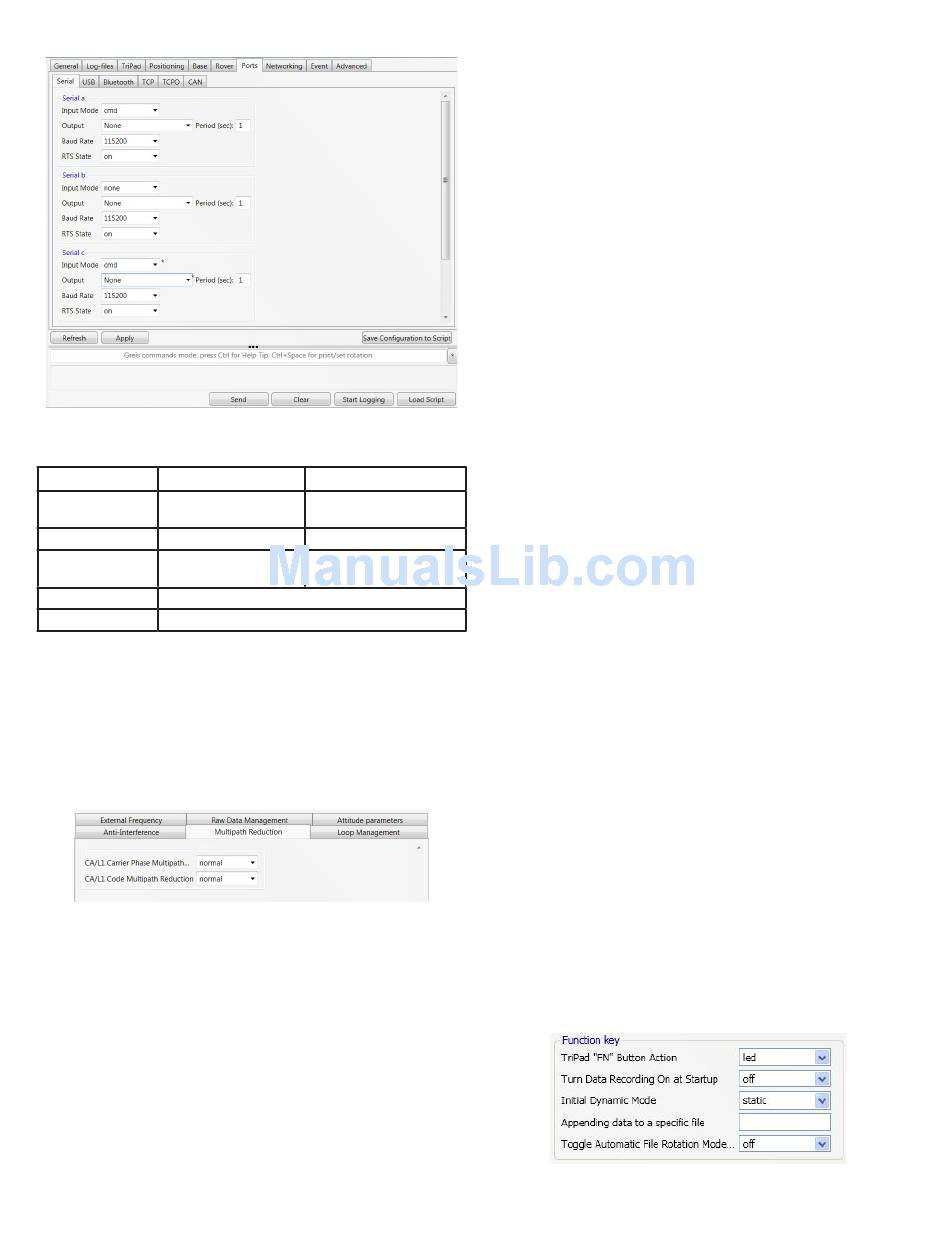

Figure 13. Ports tab
Parameter
Input -
Output Select the correction type. -
Period (sec) Set the
correction output
Baud rate Baud rate for the corresponding receiver port
RTS/CTS Enable
10. Open Advanced tab, and then Multipath Reduction
subtab. Activate Code multipath reduction (mpnew) on
base and rover for DGPS mode.
For RTK mode activate Carrier multipath reduction
(mpnew) as well (mpnew).
Figure 14. Multipath Reduction
11. Click Apply, to save the made changes and set-
tings into receiver's memory and close the dialog win-
dow. The receiver configuration will be kept in the re-
ceiver till you will change them or will clear NVRAM.
Note: For detailed description of settings and parameters see
NetView Software Manual..

TriPad Configuration

The DELTA-3N's simple user interface (TriPad) con-
12
Base Rover
The same correction type as
Base has
period of -
sists of two keys (Power and Record) and two LEDs
that control and display the receiver's operation.
Note: Use NetView to configure TriPad settings. Refer to the
NetView Software Manual for all possible MinPad configurations.
Connect the receiver and PC as described above.
Start NetView. Establish connection with the receiver.
Open TriPad tab. Set the following parameters and
click Apply:
• "File a, File b"
• "Function Key"
• "Automatic File Rotation Mode (AFRM)"
File a, File b
In the fields File a, File b can be specified current
log-file name, message output period, etc.
• Current log-file edit box allows the user to specify
the prefix of the log file, which will be saved into
receiver memory during survey.
• In the Output Epochs Counter box the number of
outputted epochs is shown.
• In the Implicit Message Output Period edit box the
output period for the implicit messages can be spec-
ified. This parameter specifies the interval of output-
ting messages into the log-file when data logging is
activated with the TriPad or through the AFRM.
• Elevation Mask for Measurements Output (the
minimum elevation angle for the satellites whose
data will be put in the receiver files logged when
pressing FN).
• Satellites Number Mask for Position computation
- Satellites with elevations lower than this mask will
be excluded from position computation.
• File Name Prefix - this setting specifies what prefix
will be added to the names of the receiver files creat-
ed via MinPad, (i.e., by pressing FN). The prefix can
be up to 20 characters long. Default is log.
• Enable Implicit Management of Specific - enables/
disables the management of Implicit Message Out-
put Period.

Function Key

Figure 15. Funktion Key
