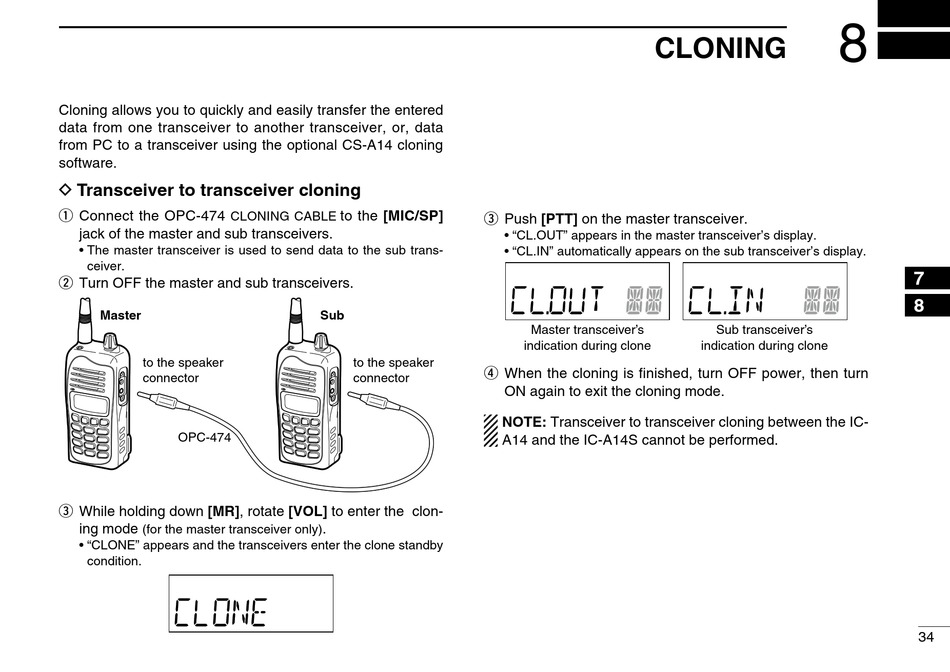

Cloning - Icom IC-A14 Instruction Manual

Cloning allows you to quickly and easily transfer the entered
data from one transceiver to another transceiver, or, data
from PC to a transceiver using the optional CS-A14 cloning
software.
D Transceiver to transceiver cloning
q Connect the OPC-474
CLONING CABLE
jack of the master and sub transceivers.
• The master transceiver is used to send data to the sub trans-
ceiver.
w Turn OFF the master and sub transceivers.
Master
to the speaker
connector
OPC-474
e While holding down [MR], rotate [VOL] to enter the clon-
ing mode
(for the master transceiver only)
• "CLONE" appears and the transceivers enter the clone standby
condition.
to the [MIC/SP]
e Push [PTT] on the master transceiver.
Sub
to the speaker
r When the cloning is finished, turn OFF power, then turn
connector
.

CLONING

• "CL.OUT" appears in the master transceiver's display.
• "CL.IN" automatically appears on the sub transceiver's display.
Master transceiver's
indication during clone
ON again to exit the cloning mode.
NOTE: Transceiver to transceiver cloning between the IC-
A14 and the IC-A14S cannot be performed.
8
Sub transceiver's
indication during clone
