eUSB SSD features include:
2 wire small form factor Universal Serial Bus 2.0 (Hi-Speed USB) interface to host
•
Read Speed up to 35 MB/s and write Speed up to 24 MB/s.
•
Capacity range from 256 MB to 32 GB.
•
Support USB Mass Storage Class requirements for Boot capability.
•

5.10 Serial Ports

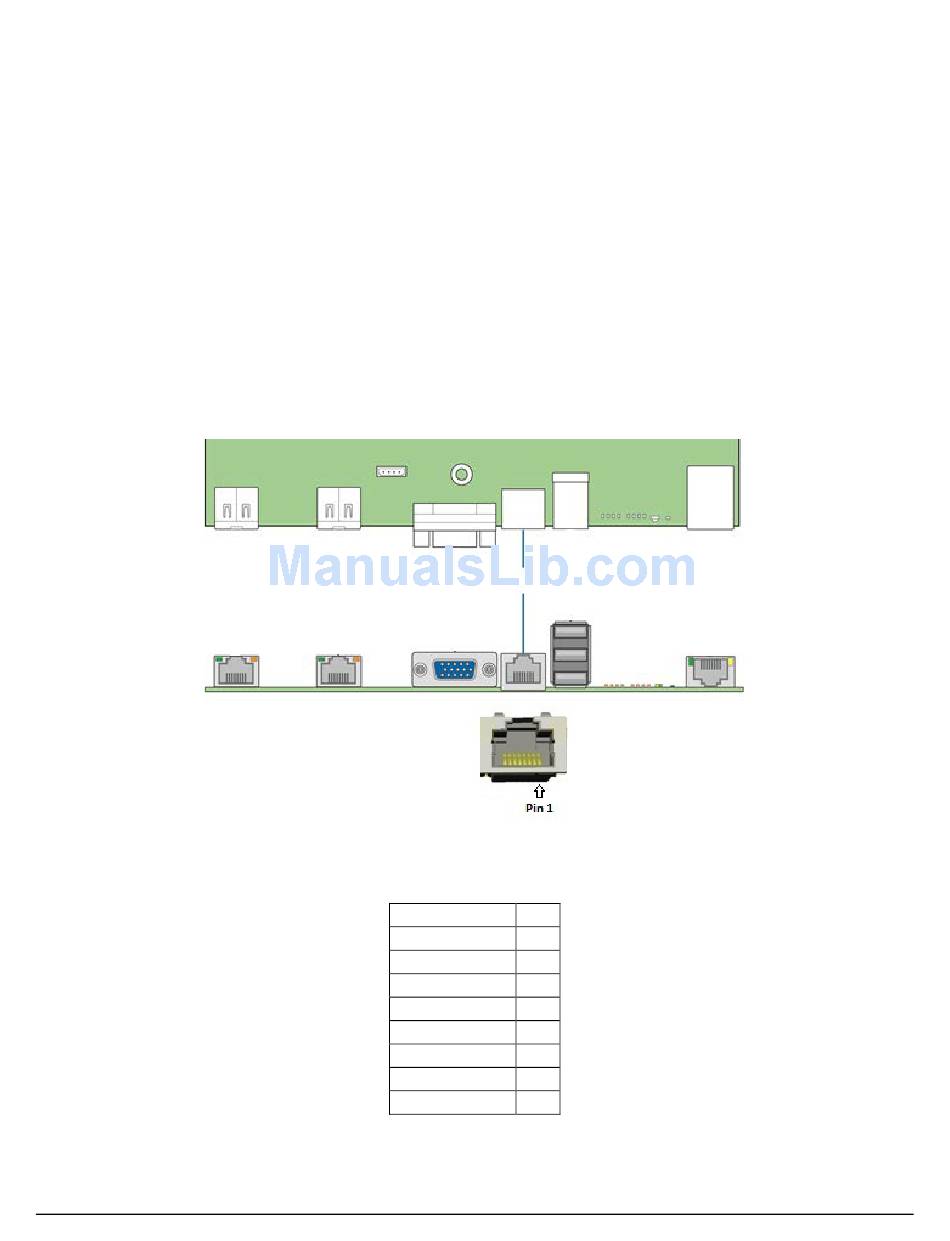

The server board has support for two serial ports, Serial A and Serial B. Serial-A is an external RJ45 type
connector located on the back edge of the server board.
The Serial A connector has the following pin-out configuration.
51
Relion 1900e/2900e Manual
Serial A

Table 16. Serial A Connector Pin-out

Signal Description
RTS
DTR
SOUT
GROUND
RI
SIN
DCD or DSR
CTS
Pin#
1
2
3
4
5
6
7**
8
