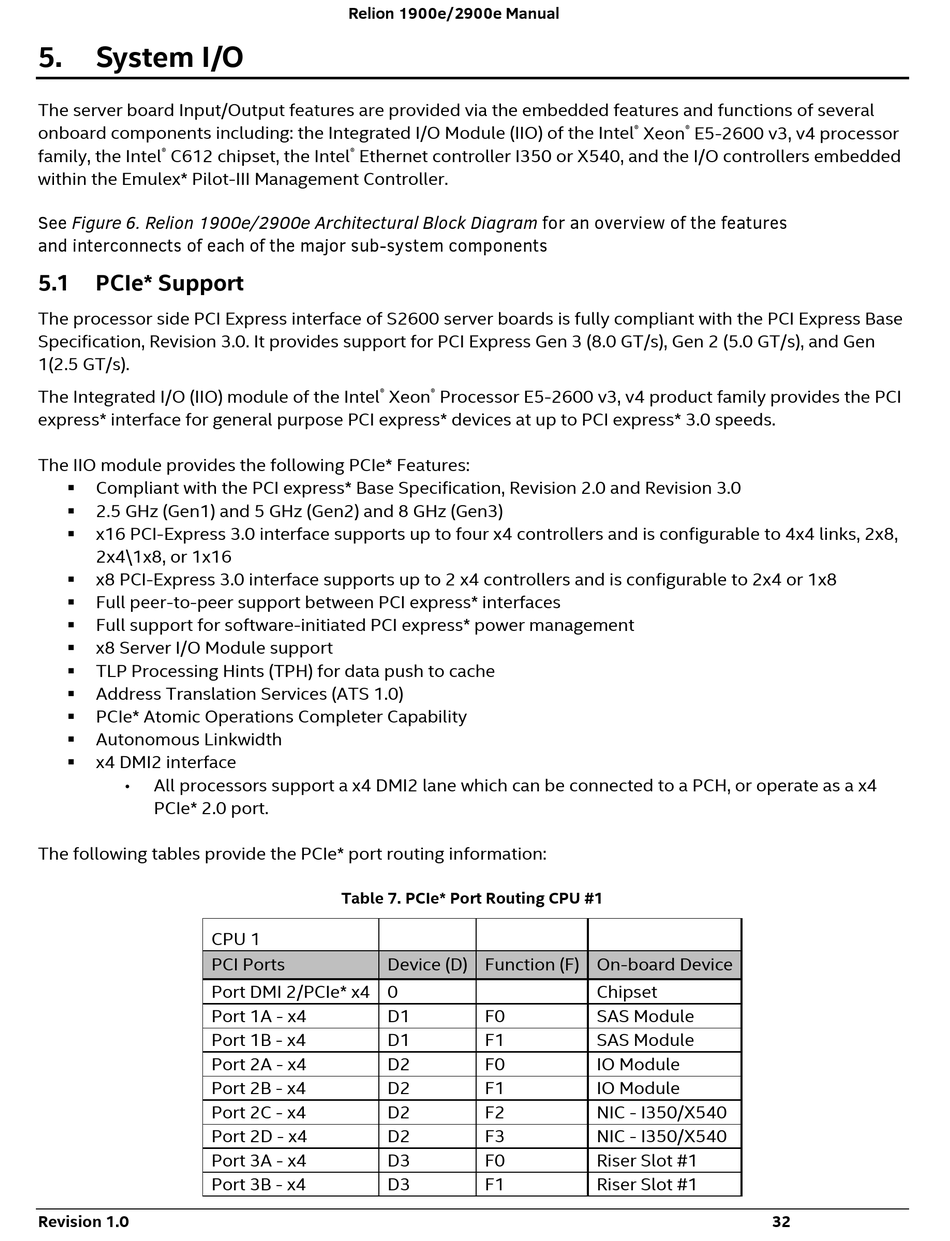

5.

System I/O

The server board Input/Output features are provided via the embedded features and functions of several
onboard components including: the Integrated I/O Module (IIO) of the Intel
family, the Intel ® C612 chipset, the Intel
within the Emulex* Pilot-III Management Controller.
See Figure 6. Relion 1900e/2900e Architectural Block Diagram for an overview of the features
and interconnects of each of the major sub-system components
5.1

PCIe* Support

The processor side PCI Express interface of S2600 server boards is fully compliant with the PCI Express Base
Specification, Revision 3.0. It provides support for PCI Express Gen 3 (8.0 GT/s), Gen 2 (5.0 GT/s), and Gen
1(2.5 GT/s).
The Integrated I/O (IIO) module of the Intel
express* interface for general purpose PCI express* devices at up to PCI express* 3.0 speeds.
The IIO module provides the following PCIe* Features:
Compliant with the PCI express* Base Specification, Revision 2.0 and Revision 3.0

2.5 GHz (Gen1) and 5 GHz (Gen2) and 8 GHz (Gen3)

x16 PCI-Express 3.0 interface supports up to four x4 controllers and is configurable to 4x4 links, 2x8,

2x4\1x8, or 1x16
x8 PCI-Express 3.0 interface supports up to 2 x4 controllers and is configurable to 2x4 or 1x8

Full peer-to-peer support between PCI express* interfaces

Full support for software-initiated PCI express* power management

x8 Server I/O Module support

TLP Processing Hints (TPH) for data push to cache

Address Translation Services (ATS 1.0)

PCIe* Atomic Operations Completer Capability

Autonomous Linkwidth

x4 DMI2 interface

All processors support a x4 DMI2 lane which can be connected to a PCH, or operate as a x4
•
PCIe* 2.0 port.
The following tables provide the PCIe* port routing information:
CPU 1
PCI Ports
Port DMI 2/PCIe* x4 0
Port 1A - x4
Port 1B - x4
Port 2A - x4
Port 2B - x4
Port 2C - x4
Port 2D - x4
Port 3A - x4
Port 3B - x4
Revision 1.0
Relion 1900e/2900e Manual
® Ethernet controller I350 or X540, and the I/O controllers embedded
® Xeon ® Processor E5-2600 v3, v4 product family provides the PCI

Table 7. PCIe* Port Routing CPU #1

Device (D) Function (F) On-board Device
D1 F0
D1 F1
D2 F0
D2 F1
D2 F2
D2 F3
D3 F0
D3 F1
® Xeon ® E5-2600 v3, v4 processor
Chipset
SAS Module
SAS Module
IO Module
IO Module
NIC - I350/X540
NIC - I350/X540
Riser Slot #1
Riser Slot #1
