5.9

USB Support

The server board provides support for both USB 2.0 (up to 480 Mb/sec) and USB 3.0 (up to 5 Gb/sec).
Internal Mount
LP eUSB SSD
(Option)
USB 2.0 (8)
* Note: Due to signal strength limits associated with USB 3.0 ports cabled to a front panel, some marginally
compliant USB 3.0 devices may not be supported from these ports. In addition, server systems based
on the S2600WT cannot be USB 3.0 certified with USB 3.0 ports cabled to a front panel.
5.9.1

Low Profile eUSB SSD Support

The server board provides support for a low profile eUSB SSD storage device. A 2mm 2x5-pin connector
labeled "eUSB SSD" near the rear I/O section of the server board is used to connect this small flash storage
device to the system.
LP eUSB SSD
connector
Revision 1.0
Relion 1900e/2900e Manual
Intel
Chipset
USB 2.0 & USB 3.0 I/O
Dual Port Front
Internal
Panel Header
Mount
Type-A
USB 2.0 (5,6)
USB 2.0 (3)

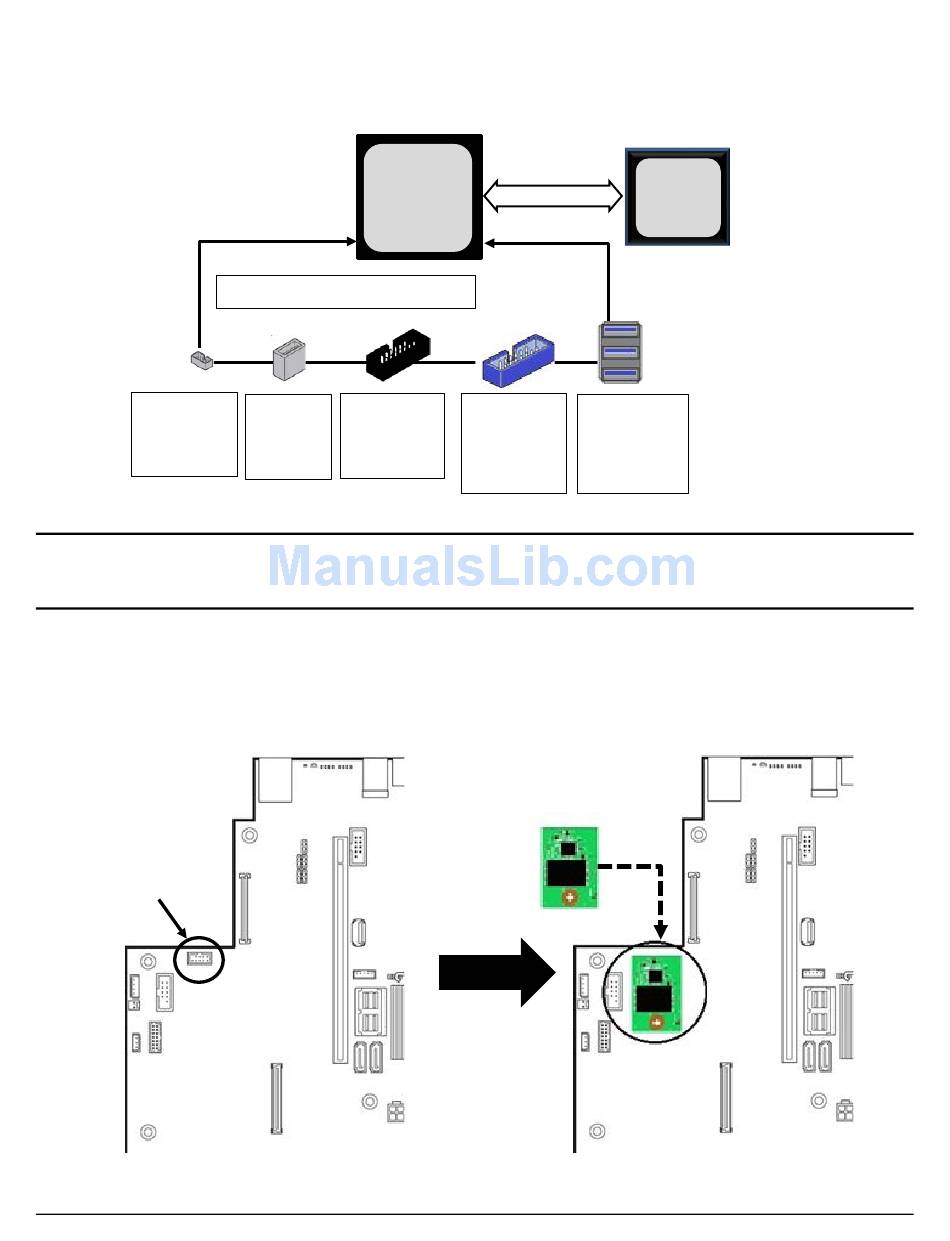

Figure 24. Onboard USB Port Support

Figure 25. Low Profile eUSB SSD Support

®
C612
USB 2.0 (4,12)
* Dual Port
Stacked Triple
Front Panel
Port Back Panel
Header
USB 3.0 (1,4)
USB 3.0 (2,3,5)
USB 2.0 (10,13)
USB 2.0 (0,1,2)
Integrated
BMC
(USB Port #s)
