Setting Video Configuration Options Using The Bios Setup Utility; Figure 23. Bios Setup Utility - Video Configuration Options - Penguin Computing Relion 1900e Technical Manual

Legacy VGA Socket = CPU Socket 1
Add-in Video Adapter = Disabled
Case 8: Add-in video on Socket 1 active display, onboard video and Add-in video on Socket 2 don't
actively display.
Onboard Video = Disabled
Legacy VGA Socket = CPU Socket 1
Add-in Video Adapter = Enabled
Case 9: Both onboard video active and CPU Socket 1 add-in video active display. But only onboard
could actively display during BIOS POST.
Onboard Video = Enabled
Legacy VGA Socket = CPU Socket 1
Add-in Video Adapter = Enabled
Case 10: Only CPU Socket 2 add-in video active display, neither onboard video nor CPU Socket 1
add-in video display.
Onboard Video = Disabled (grayout, can't change)
Legacy VGA Socket = CPU Socket 2
Add-in Video Adapte = Enabled (grayout, can't change)
5.8.2

Setting Video Configuration Options using the BIOS Setup Utility

PCI Configuration
Memory Mapped I/O above 4 GB
Memory Mapped I/O Size
Add-in Video Adapter
Onboard Video
Legacy VGA Socket
 NIC Configuration
 PCIe* Port Oprom Control
 Processor PCIe* Link Speed
1. Add-in Video Adapter
Option Values: Enabled
Disabled
Help Text:
If enabled, the Add-in video adapter works as primary video device during POST if installed. If disabled, the
on-board video controller becomes the primary video device.
Comments: This option must be enabled to use an add-in card as a primary POST Legacy Video device.
Revision 1.0
Relion 1900e/2900e Manual
Enabled / Disabled
Auto/1G/2G/4G/8G/16G/32G/64G/128G/256G/
512G/ 1024G
Enabled / Disabled
Enabled / Disabled
CPU Socket 1 / CPU Socket 2

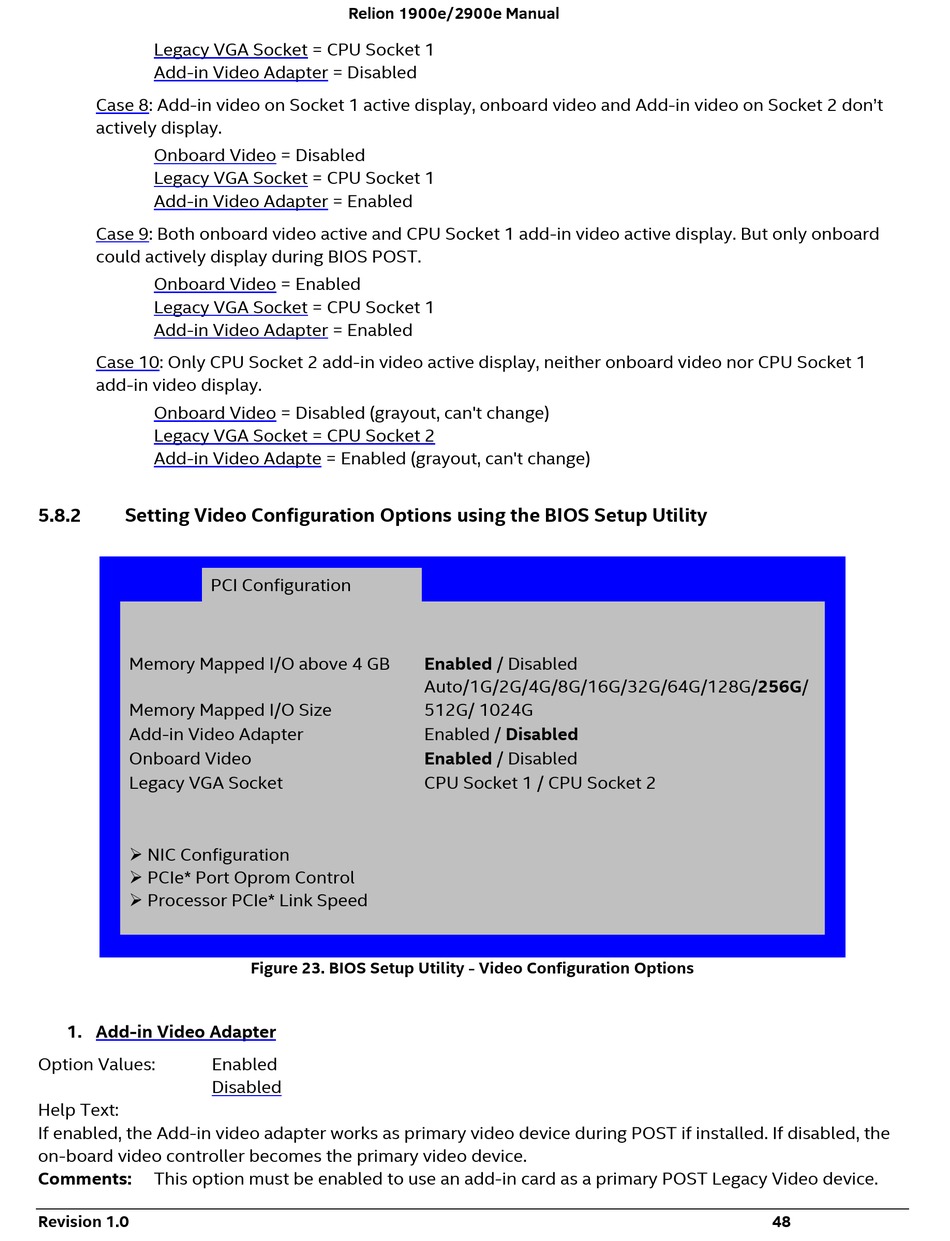

Figure 23. BIOS Setup Utility - Video Configuration Options
