On the server board the Intel
Intel ® RMM4
Lite Key
9.1

Dedicated Management Port

The server board includes a dedicated 1GbE RJ45 Management Port. The management port is active with or
without the RMM4 Lite key installed.
9.2

Embedded Web Server

BMC Base manageability provides an embedded web server and an OEM-customizable web GUI which
exposes the manageability features of the BMC base feature set. It is supported over all on-board NICs that
have management connectivity to the BMC as well as an optional dedicated add-in management NIC. At least
two concurrent web sessions from up to two different users is supported. The embedded web user interface
shall support the following client web browsers:
Microsoft Internet Explorer 9.0*
•
• Microsoft Internet Explorer 10.0*
Mozilla Firefox 24*
•
• Mozilla Firefox 25*
The embedded web user interface supports strong security (authentication, encryption, and firewall support)
since it enables remote server configuration and control. The user interface presented by the embedded web
user interface shall authenticate the user before allowing a web session to be initiated. Encryption using 128-
bit SSL is supported. User authentication is based on user id and password.
85
Relion 1900e/2900e Manual
® RMM4 Lite key is installed at the following location.
RJ45 – Dedicated
Management Port

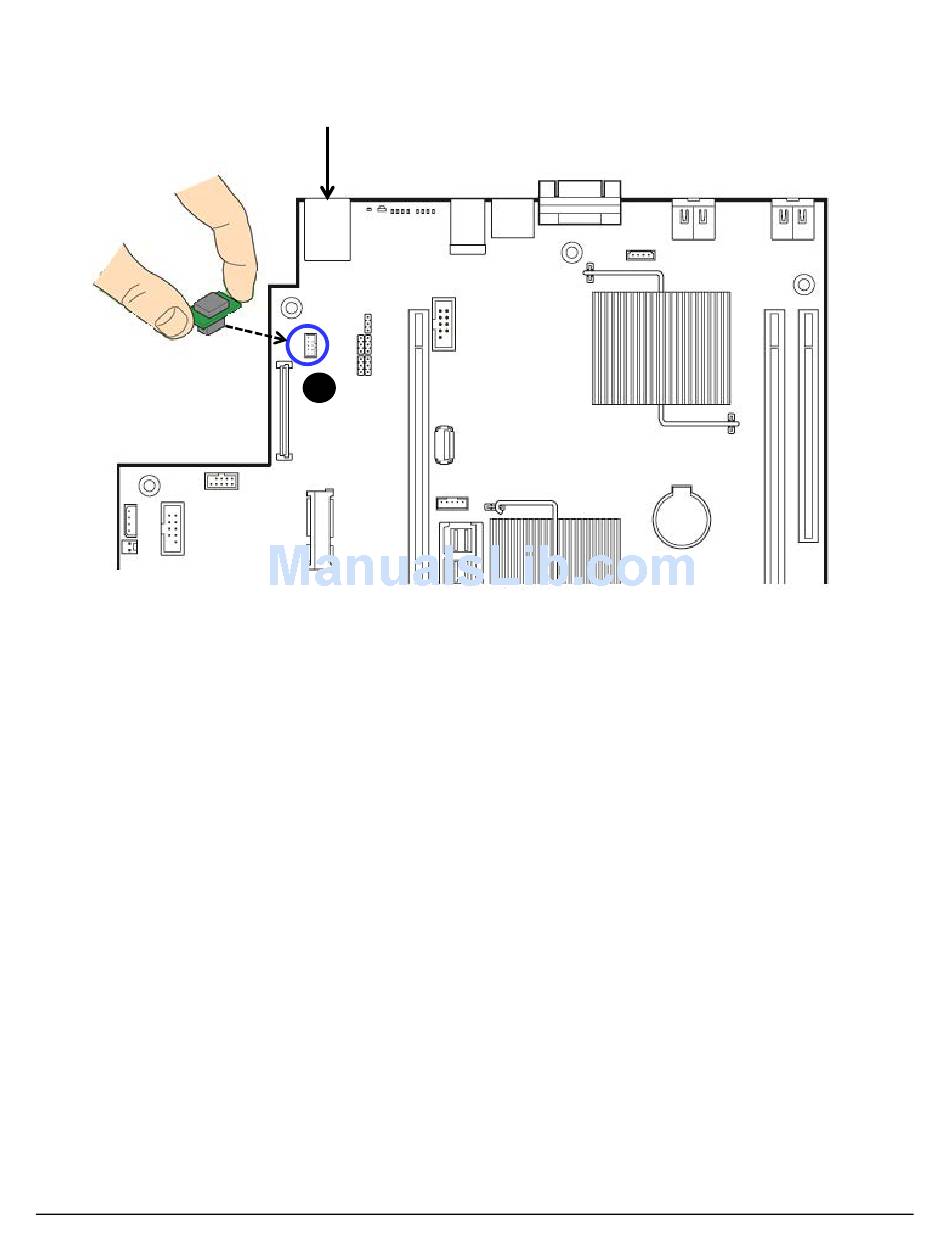

Figure 27. Intel RMM4 Lite Activation Key Installation
®
