10.3 On-Board Storage Option Connectors

The server board provides connectors to support several storage device options. This section provides a
functional overview and pin-out of each connector.
10.3.1

Single Port SATA Only Connectors

The server board includes two white single port SATA only connectors capable of transfer rates of up to
6Gb/s. On the server board these connectors are labeled as "SATA 4" and "SATA 5". The following table
provides the pin-out for both connectors.

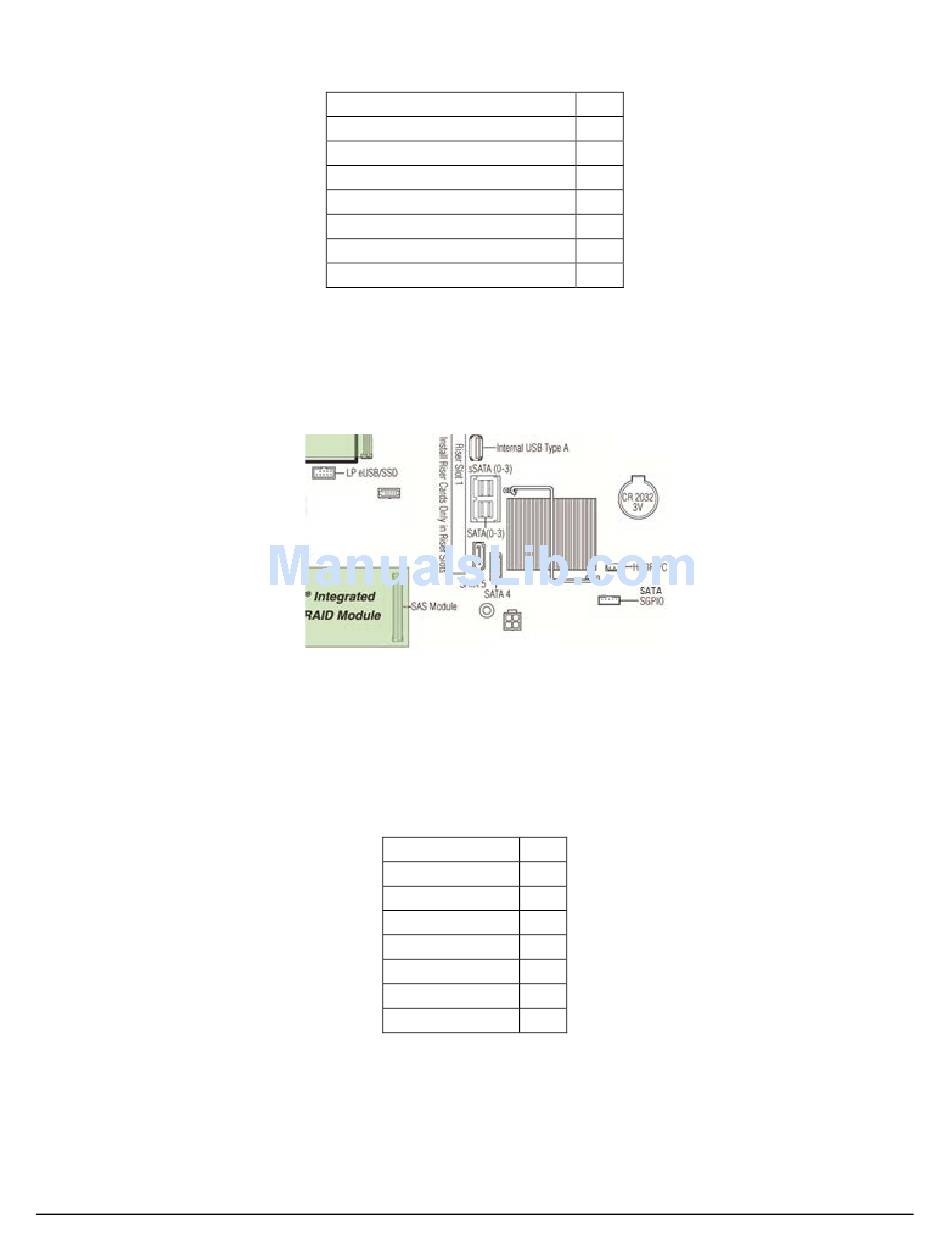

Table 39. Single Port SATA Connector Pin-out ("SATA 4" & "SATA 5")
10.3.1.1 SATA SGPIO Connector
The server board includes a 5-pin SATA SGPIO connector. When cabled to a hot-swap backplane, this
connector provides drive fault LED support for the single onboard SATA ports (SATA_4 and SATA_5). The
connector has the following pin-out:
Revision 1.0
Relion 1900e/2900e Manual

Table 38. Intel Local Control Panel Connector Pin-out ("LCP")

Signal Description
SMB_SENSOR_3V3STBY_DATA_R0
GROUND
SMB_SENSOR_3V3STBY_CLK
P3V3_AUX
FM_LCP_ENTER_N_R
FM_LCP_LEFT_N_R
FM_LCP_RIGHT_N_R
Signal Description
GROUND
SATA_TXP
SATA_TXN
GROUND
SATA_RXN
SATA_RXP
GROUND
Pin#
1
2
3
4
5
6
7
Pin#
1
2
3
4
5
6
7
