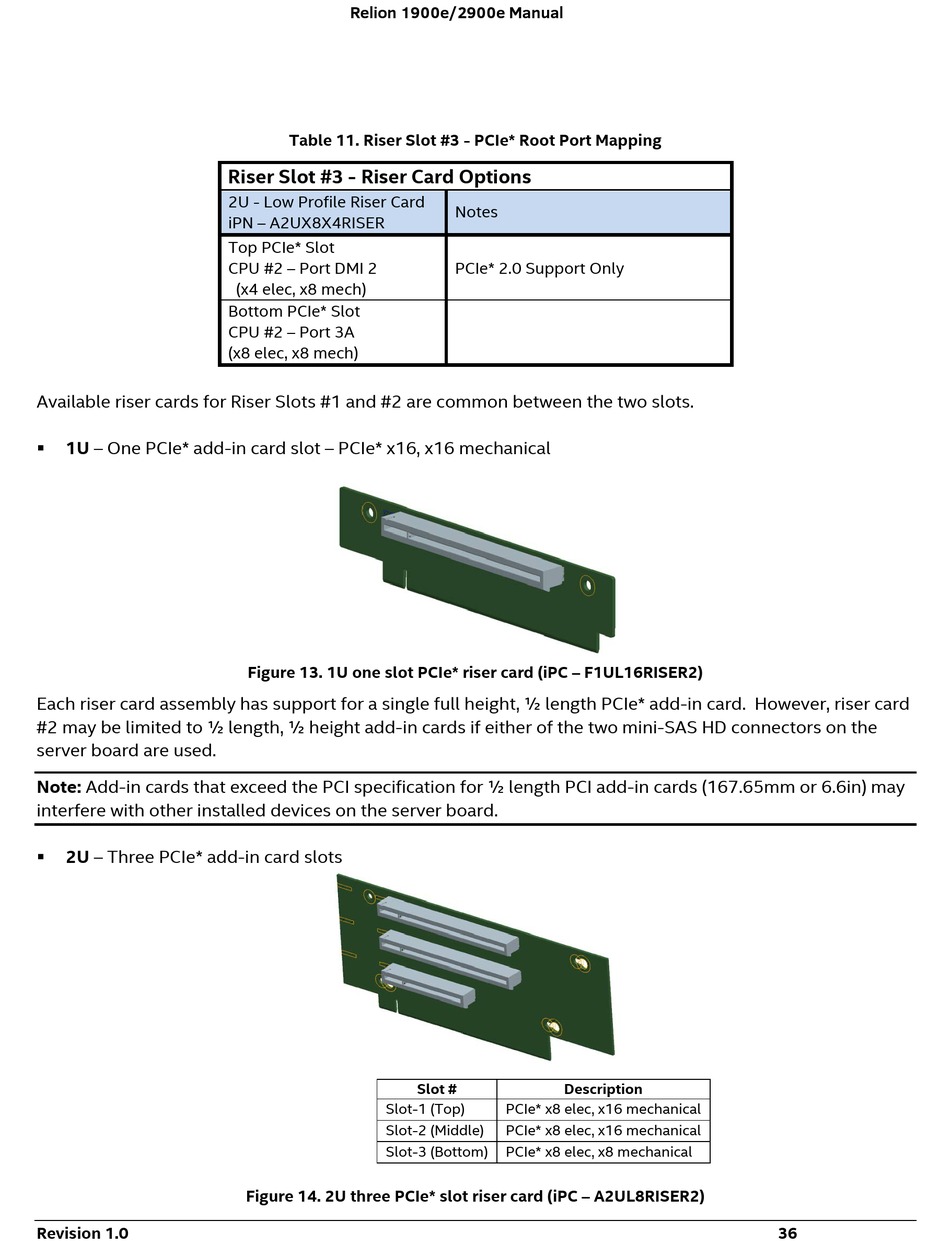

Figure 13. 1U One Slot Pcie* Riser Card (Ipc - F1Ul16Riser2); Figure 14. 2U Three Pcie* Slot Riser Card (Ipc - A2Ul8Riser2); Table 11. Riser Slot #3 - Pcie* Root Port Mapping - Penguin Computing Relion 1900e Technical Manual

Available riser cards for Riser Slots #1 and #2 are common between the two slots.
1U – One PCIe* add-in card slot – PCIe* x16, x16 mechanical

Each riser card assembly has support for a single full height, ½ length PCIe* add-in card. However, riser card
#2 may be limited to ½ length, ½ height add-in cards if either of the two mini-SAS HD connectors on the
server board are used.
Note: Add-in cards that exceed the PCI specification for ½ length PCI add-in cards (167.65mm or 6.6in) may
interfere with other installed devices on the server board.
2U – Three PCIe* add-in card slots

Revision 1.0
Relion 1900e/2900e Manual

Table 11. Riser Slot #3 - PCIe* Root Port Mapping

Riser Slot #3 - Riser Card Options
2U - Low Profile Riser Card
iPN – A2UX8X4RISER
Top PCIe* Slot
CPU #2 – Port DMI 2
(x4 elec, x8 mech)
Bottom PCIe* Slot
CPU #2 – Port 3A
(x8 elec, x8 mech)
Figure 13. 1U one slot PCIe* riser card (iPC – F1UL16RISER2)
Slot-1 (Top)
Slot-2 (Middle)
Slot-3 (Bottom)
Figure 14. 2U three PCIe* slot riser card (iPC – A2UL8RISER2)
Notes
PCIe* 2.0 Support Only
Slot # Description
PCIe* x8 elec, x16 mechanical
PCIe* x8 elec, x16 mechanical
PCIe* x8 elec, x8 mechanical
