Network Interface; Figure 20. Sata Raid 5 Upgrade Key; Figure 21. Network Interface Connectors - Penguin Computing Relion 1900e Technical Manual

Maximum drive support = 6 (Maximum on-board SATA port support)

Open Source Compliance = Binary Driver (includes Partial Source files) or Open Source using MDRAID

layer in Linux*.
Note: RAID configurations cannot span across the two embedded AHCI SATA controllers.
5.7

Network Interface

On the back edge of the server board are three RJ45 networking ports; "NIC #1", "NIC #2", and a Dedicated
Management Port.
Each ethernet port drives two LEDs located on each network interface connector. The LED at the left of the
connector is the link/activity LED and indicates network connection when on, and transmit/receive activity
when blinking.
The LED at the right of the connector indicates link speed as defined in the following table.
Revision 1.0
Relion 1900e/2900e Manual

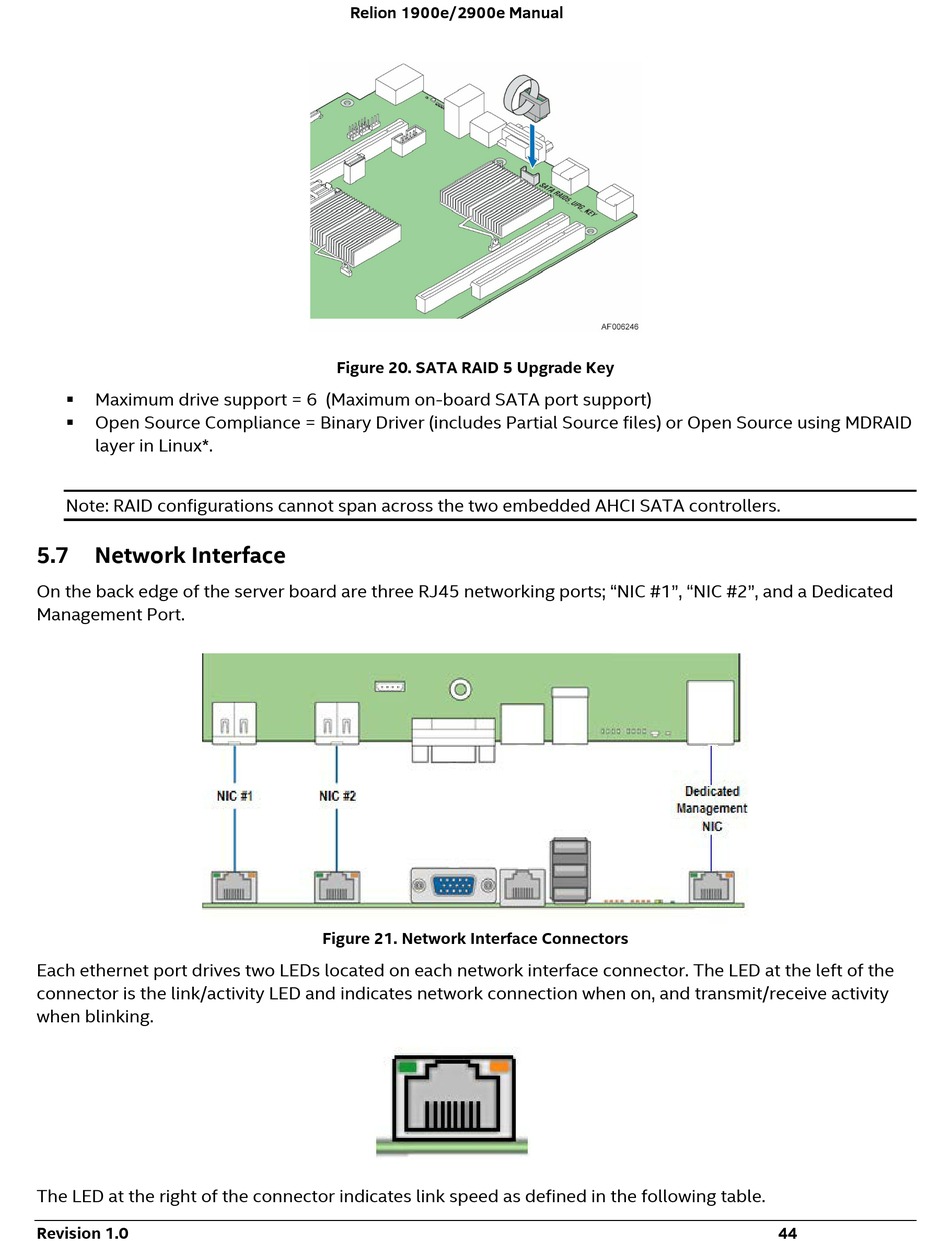

Figure 20. SATA RAID 5 Upgrade Key

Figure 21. Network Interface Connectors
