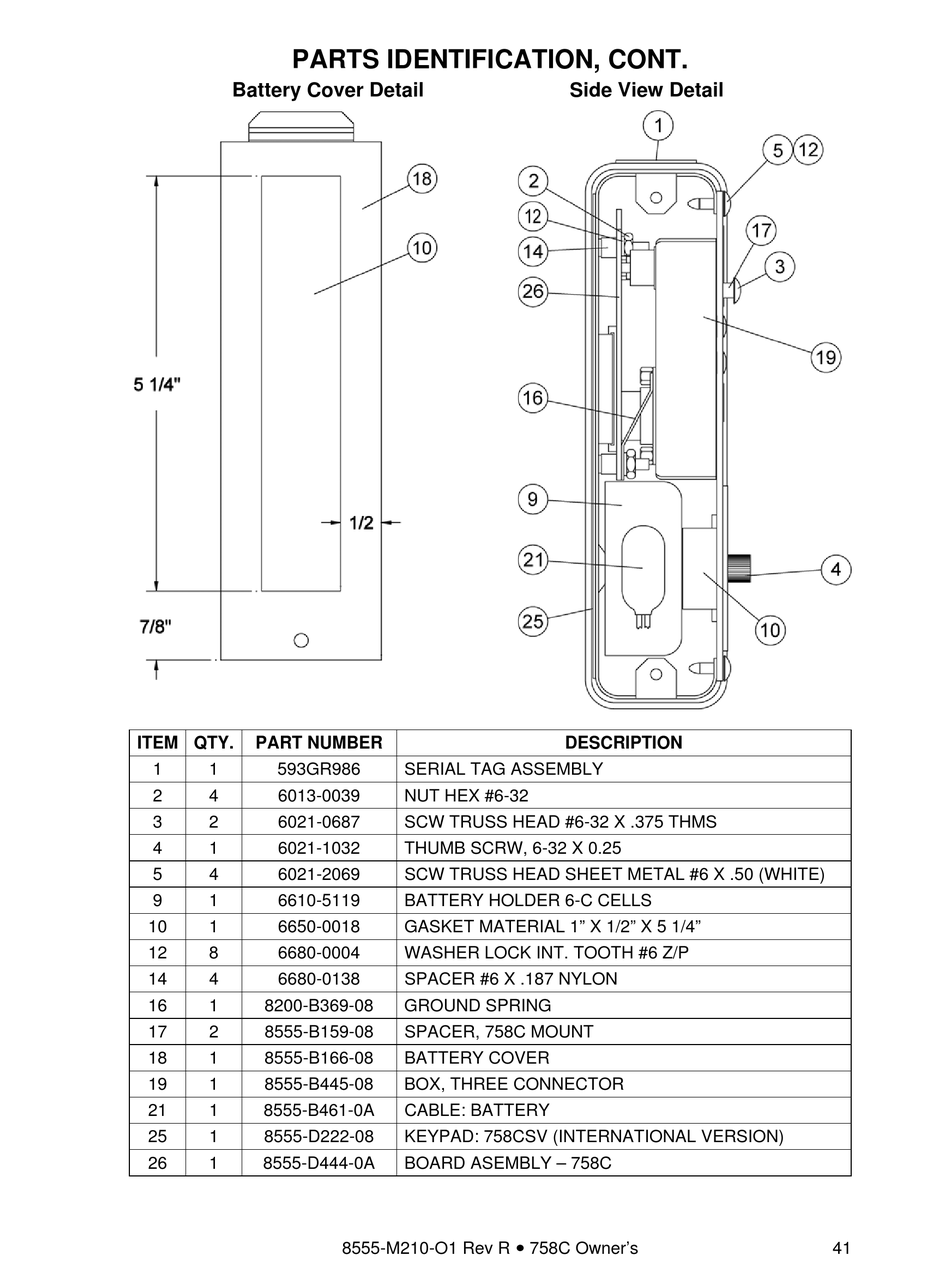

PARTS IDENTIFICATION, CONT.
Battery Cover Detail
ITEM QTY. PART NUMBER
1 1 593GR986
2 4 6013-0039
3 2 6021-0687
4 1 6021-1032
5 4 6021-2069
9 1 6610-5119
10 1 6650-0018
12 8 6680-0004
14 4 6680-0138
16 1 8200-B369-08
17 2 8555-B159-08
18 1 8555-B166-08
19 1 8555-B445-08
21 1 8555-B461-0A
25 1 8555-D222-08
26 1 8555-D444-0A
SERIAL TAG ASSEMBLY
NUT HEX #6-32
SCW TRUSS HEAD #6-32 X .375 THMS
THUMB SCRW, 6-32 X 0.25
SCW TRUSS HEAD SHEET METAL #6 X .50 (WHITE)
BATTERY HOLDER 6-C CELLS
GASKET MATERIAL 1" X 1/2" X 5 1/4"
WASHER LOCK INT. TOOTH #6 Z/P
SPACER #6 X .187 NYLON
GROUND SPRING
SPACER, 758C MOUNT
BATTERY COVER
BOX, THREE CONNECTOR
CABLE: BATTERY
KEYPAD: 758CSV (INTERNATIONAL VERSION)
BOARD ASEMBLY – 758C
8555-M210-O1 Rev R  758C Owner's
Side View Detail
DESCRIPTION
