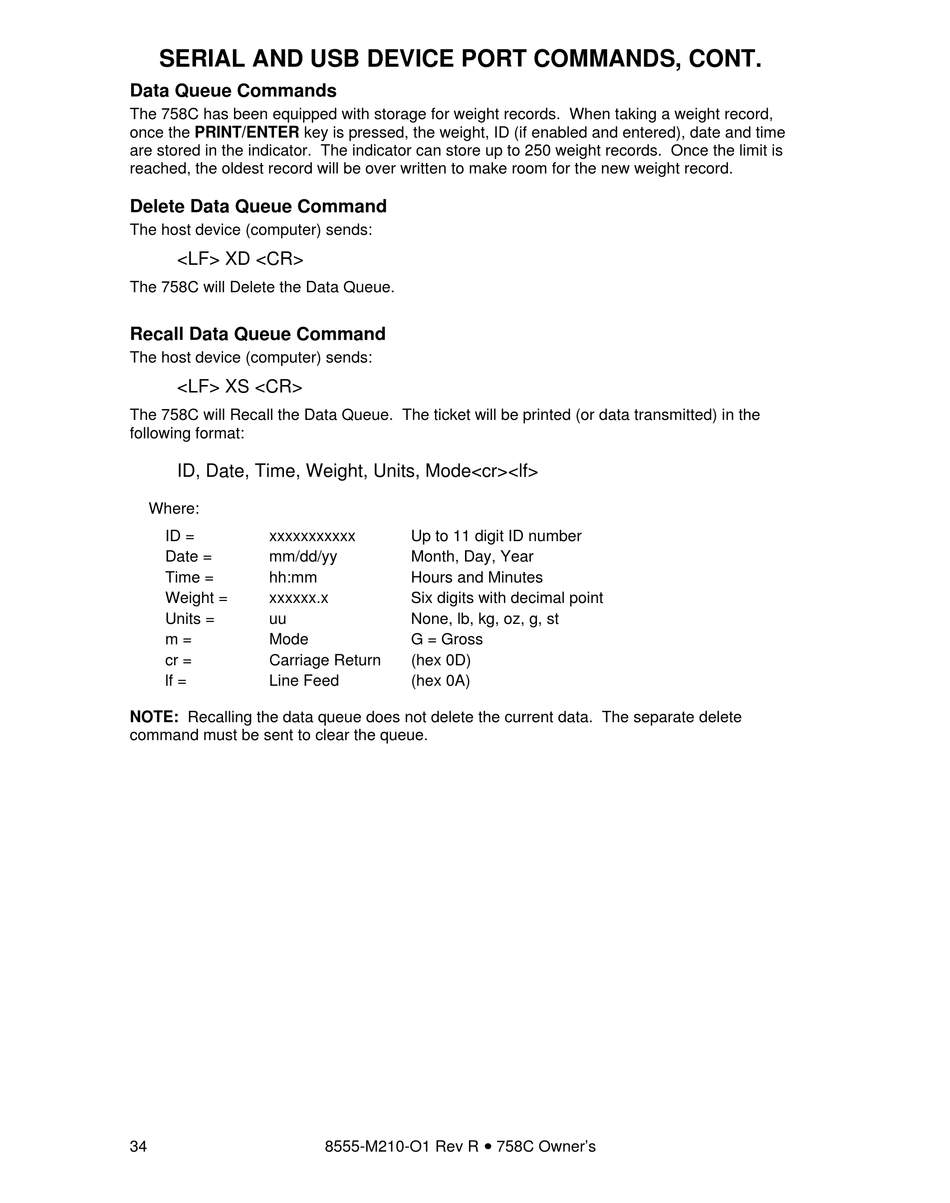

SERIAL AND USB DEVICE PORT COMMANDS, CONT.
Data Queue Commands
The 758C has been equipped with storage for weight records. When taking a weight record,
once the PRINT/ENTER key is pressed, the weight, ID (if enabled and entered), date and time
are stored in the indicator. The indicator can store up to 250 weight records. Once the limit is
reached, the oldest record will be over written to make room for the new weight record.
Delete Data Queue Command
The host device (computer) sends:
<LF> XD <CR>
The 758C will Delete the Data Queue.
Recall Data Queue Command
The host device (computer) sends:
<LF> XS <CR>
The 758C will Recall the Data Queue. The ticket will be printed (or data transmitted) in the
following format:
ID, Date, Time, Weight, Units, Mode<cr><lf>
Where:
ID = xxxxxxxxxxx
Date = mm/dd/yy
Time = hh:mm
Weight = xxxxxx.x
Units = uu
m = Mode
cr = Carriage Return
lf = Line Feed
NOTE: Recalling the data queue does not delete the current data. The separate delete
command must be sent to clear the queue.
34
Up to 11 digit ID number
Month, Day, Year
Hours and Minutes
Six digits with decimal point
None, lb, kg, oz, g, st
G = Gross
(hex 0D)
(hex 0A)
