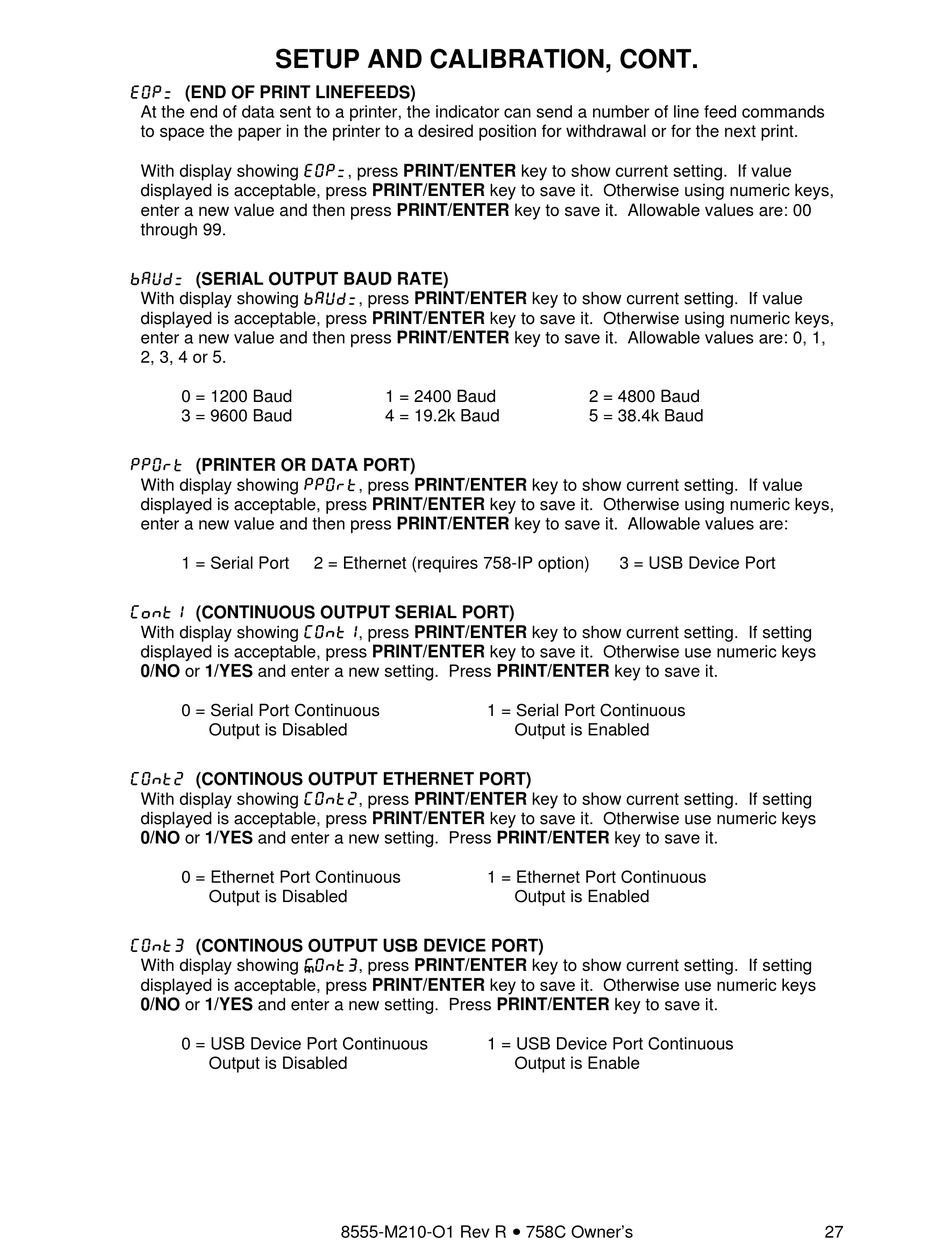

Cardinal Detecto 758C Owner's Manual page 31

SETUP AND CALIBRATION, CONT.
EOP= (END OF PRINT LINEFEEDS)
At the end of data sent to a printer, the indicator can send a number of line feed commands
to space the paper in the printer to a desired position for withdrawal or for the next print.
With display showing EOP=, press PRINT/ENTER key to show current setting. If value
displayed is acceptable, press PRINT/ENTER key to save it. Otherwise using numeric keys,
enter a new value and then press PRINT/ENTER key to save it. Allowable values are: 00
through 99.
BAUD= (SERIAL OUTPUT BAUD RATE)
With display showing baUd=, press PRINT/ENTER key to show current setting. If value
displayed is acceptable, press PRINT/ENTER key to save it. Otherwise using numeric keys,
enter a new value and then press PRINT/ENTER key to save it. Allowable values are: 0, 1,
2, 3, 4 or 5.
0 = 1200 Baud
3 = 9600 Baud
PPORT (PRINTER OR DATA PORT)
With display showing PPORT, press PRINT/ENTER key to show current setting. If value
displayed is acceptable, press PRINT/ENTER key to save it. Otherwise using numeric keys,
enter a new value and then press PRINT/ENTER key to save it. Allowable values are:
1 = Serial Port
Cont1 (CONTINUOUS OUTPUT SERIAL PORT)
With display showing COnt1, press PRINT/ENTER key to show current setting. If setting
displayed is acceptable, press PRINT/ENTER key to save it. Otherwise use numeric keys
0/NO or 1/YES and enter a new setting. Press PRINT/ENTER key to save it.
0 = Serial Port Continuous
Output is Disabled
COnt2 (CONTINOUS OUTPUT ETHERNET PORT)
With display showing COnt2, press PRINT/ENTER key to show current setting. If setting
displayed is acceptable, press PRINT/ENTER key to save it. Otherwise use numeric keys
0/NO or 1/YES and enter a new setting. Press PRINT/ENTER key to save it.
0 = Ethernet Port Continuous
Output is Disabled
COnt3 (CONTINOUS OUTPUT USB DEVICE PORT)
With display showing C Ont3, press PRINT/ENTER key to show current setting. If setting
m
displayed is acceptable, press PRINT/ENTER key to save it. Otherwise use numeric keys
0/NO or 1/YES and enter a new setting. Press PRINT/ENTER key to save it.
0 = USB Device Port Continuous
Output is Disabled
1 = 2400 Baud
4 = 19.2k Baud
2 = Ethernet (requires 758-IP option)
1 = Serial Port Continuous
1 = Ethernet Port Continuous
1 = USB Device Port Continuous
8555-M210-O1 Rev R  758C Owner's
2 = 4800 Baud
5 = 38.4k Baud
3 = USB Device Port
Output is Enabled
Output is Enabled
Output is Enable
27
