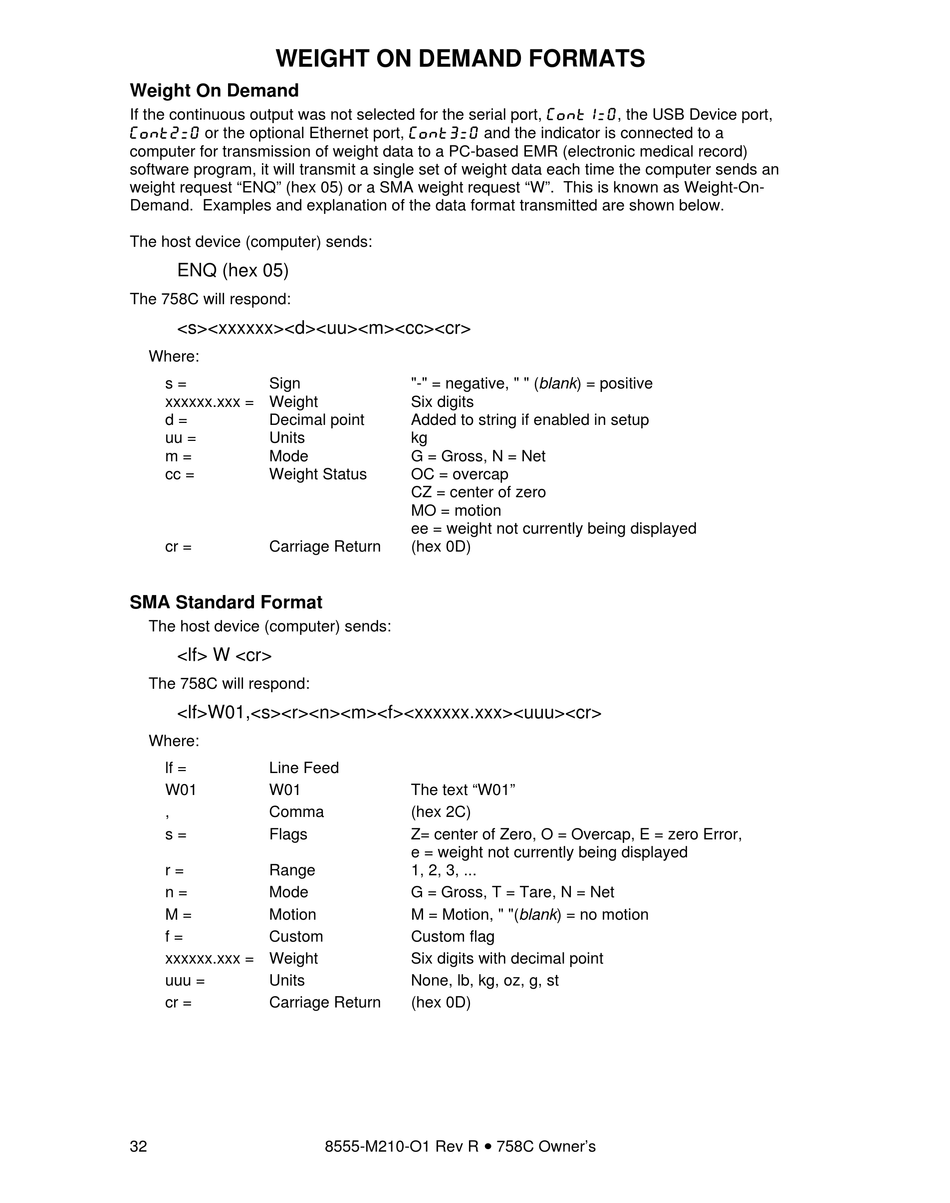

WEIGHT ON DEMAND FORMATS

Weight On Demand
If the continuous output was not selected for the serial port, Cont1=0, the USB Device port,
Cont2=0 or the optional Ethernet port, Cont3=0 and the indicator is connected to a
computer for transmission of weight data to a PC-based EMR (electronic medical record)
software program, it will transmit a single set of weight data each time the computer sends an
weight request "ENQ" (hex 05) or a SMA weight request "W". This is known as Weight-On-
Demand. Examples and explanation of the data format transmitted are shown below.
The host device (computer) sends:
ENQ (hex 05)
The 758C will respond:
<s><xxxxxx><d><uu><m><cc><cr>
Where:
s = Sign
xxxxxx.xxx = Weight
d = Decimal point
uu = Units
m = Mode
cc = Weight Status
cr = Carriage Return
SMA Standard Format
The host device (computer) sends:
<lf> W <cr>
The 758C will respond:
<lf>W01,<s><r><n><m><f><xxxxxx.xxx><uuu><cr>
Where:
lf = Line Feed
W01 W01
, Comma
s = Flags
r = Range
n = Mode
M = Motion
f = Custom
xxxxxx.xxx = Weight
uuu = Units
cr = Carriage Return
32
"-" = negative, " " (blank) = positive
Six digits
Added to string if enabled in setup
kg
G = Gross, N = Net
OC = overcap
CZ = center of zero
MO = motion
ee = weight not currently being displayed
(hex 0D)
The text "W01"
(hex 2C)
Z= center of Zero, O = Overcap, E = zero Error,
e = weight not currently being displayed
1, 2, 3, ...
G = Gross, T = Tare, N = Net
M = Motion, " "(blank) = no motion
Custom flag
Six digits with decimal point
None, lb, kg, oz, g, st
(hex 0D)
