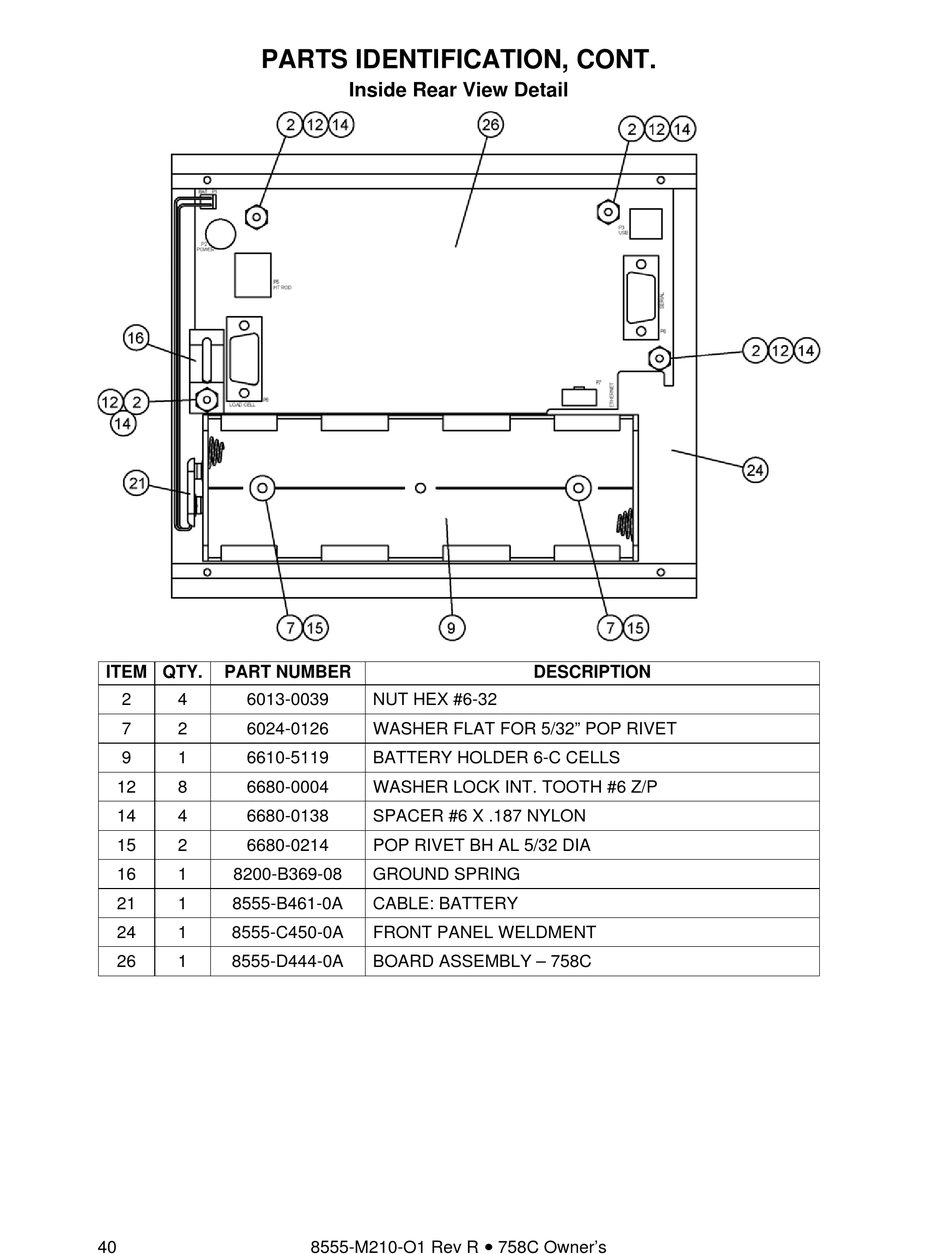

PARTS IDENTIFICATION, CONT.
ITEM QTY. PART NUMBER
2 4 6013-0039
7 2 6024-0126
9 1 6610-5119
12 8 6680-0004
14 4 6680-0138
15 2 6680-0214
16 1 8200-B369-08
21 1 8555-B461-0A
24 1 8555-C450-0A
26 1 8555-D444-0A
40
Inside Rear View Detail
NUT HEX #6-32
WASHER FLAT FOR 5/32" POP RIVET
BATTERY HOLDER 6-C CELLS
WASHER LOCK INT. TOOTH #6 Z/P
SPACER #6 X .187 NYLON
POP RIVET BH AL 5/32 DIA
GROUND SPRING
CABLE: BATTERY
FRONT PANEL WELDMENT
BOARD ASSEMBLY – 758C
8555-M210-O1 Rev R  758C Owner's
DESCRIPTION
