Important notes
Connector assignment
of control unit
10.15

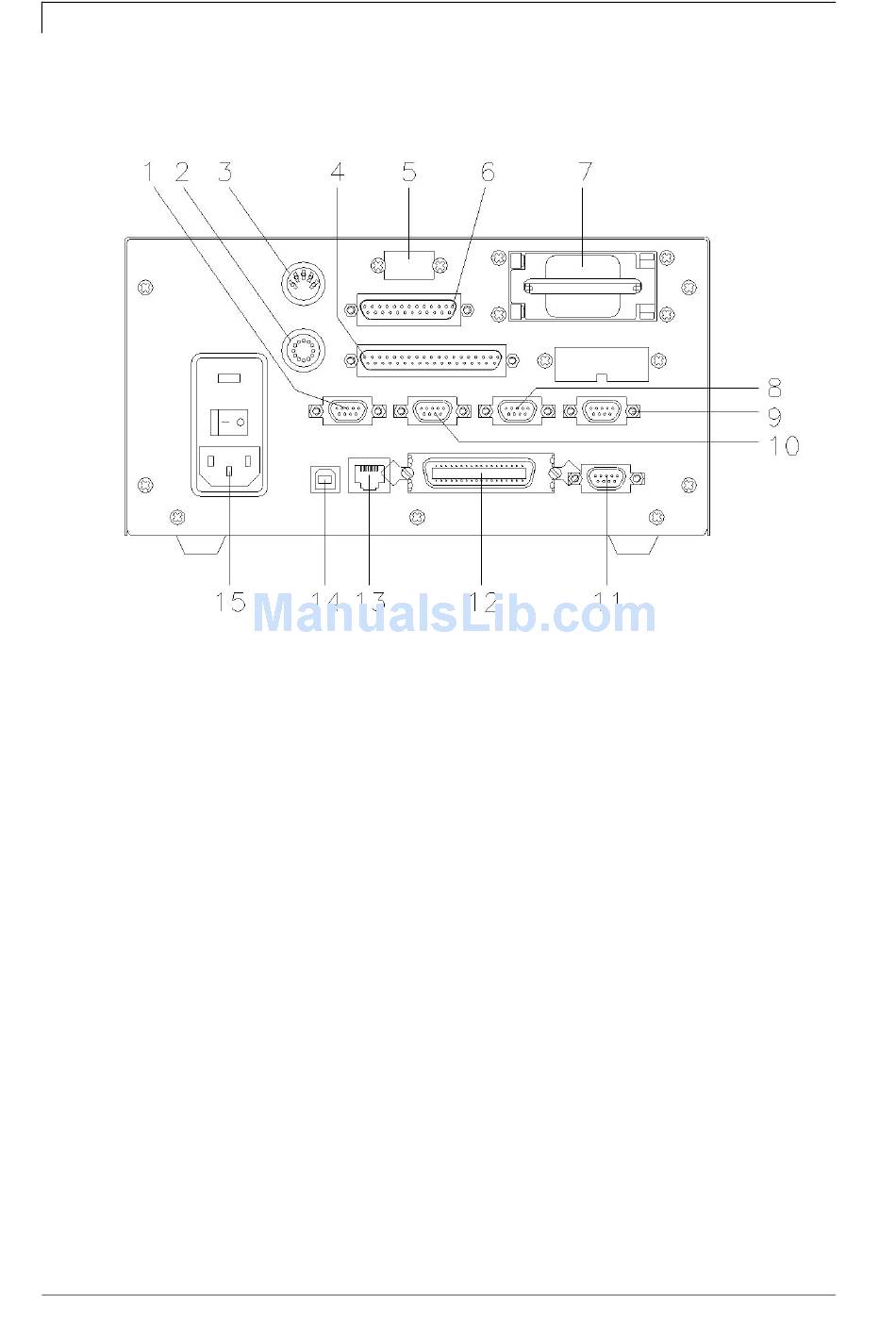

Figure 2
1 = External output 1-4 (Output I)
2 = Touch panel connection
3 = Encoder connection
4 = Connecting cable SPI (printhead + sensor)
5 = Placeholder for second serial interface (option)
6 = Connecting cable 'power'
7 = Compact Flash card slot
8 = External output 5-8 (Output II)
9 = Standard
SUB-D plug 9-pin
External input 5-8
see chapter 3.1
10 = Extrnal input 1-4 (Input I)
11 = RS 232 interface
12 = Centronics interface
13 = Ethernet interface
14 = USB interface
15 = Power supply with switch
Operating manual
Dynacode series
Option
SUB-D plug 15-pin
External bushing I/O-24
see chapter 3.1
