Carl Valentin DYNACODE Operating Manual page 24

Technical data
Example
Output II
Figure 13, C
Figure 16
24

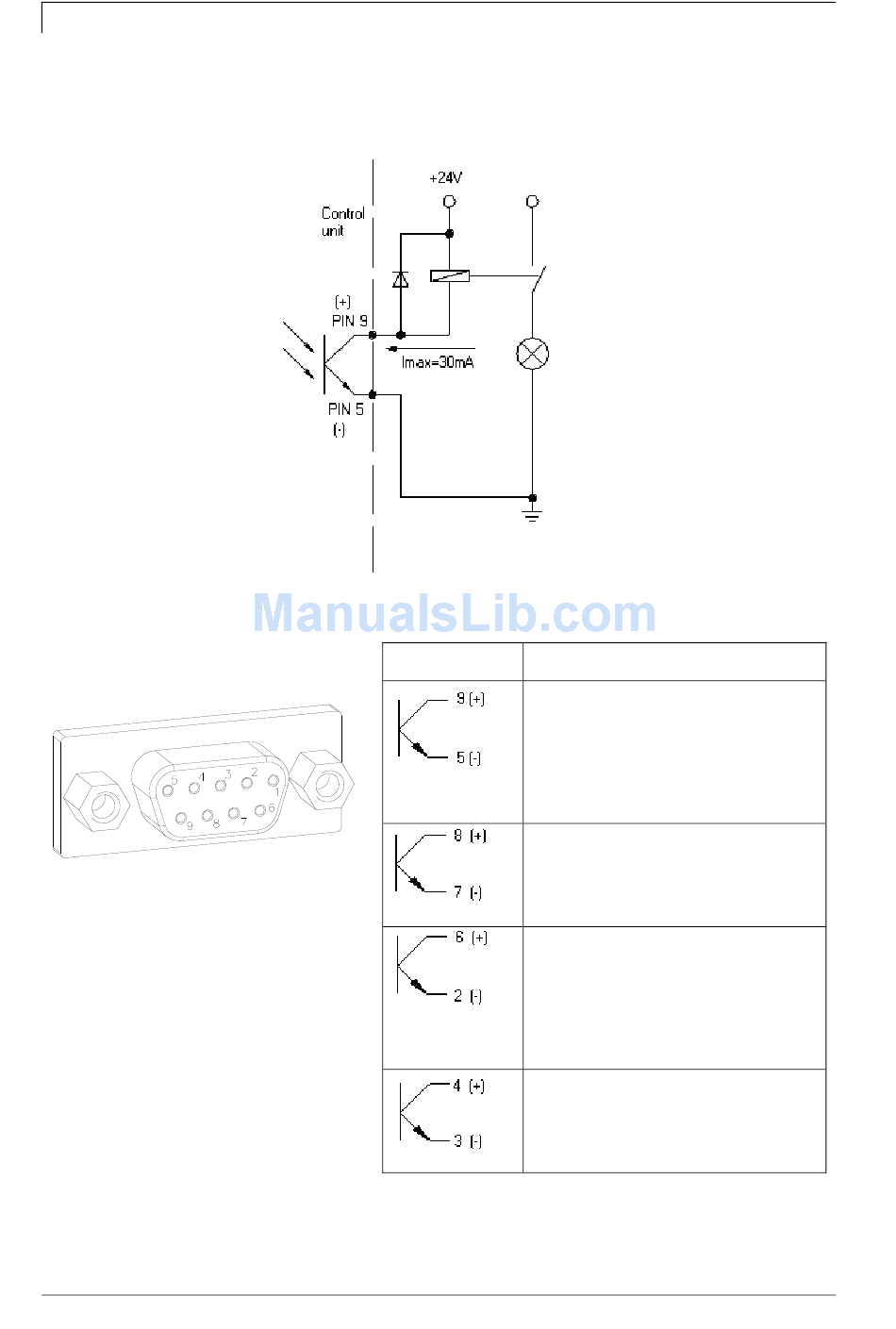

Connection of a lamp to a 24V relay by Out 1:
Figure 15
PIN (bushing)
Operating manual
Dynacode series
Output II
Out 5: Print-Ready signal
It is indicated if the print module is
ready to process a start impulse. In
contrary to the print order signal, the
generating time is taken into
consideration.
Out 6: Printhead up
The printhead has reached the upper
rest position (e.g. return to zero
point).
Out 7: Return to start
After termination of print procedure
the flexible part of the print module is
moved back to the start position.
After the start position was reached a
new start can be released.
Out 8: Prior warning of transfer
ribbon end
10.15
