Opticon OPI 2201 Specification Manual

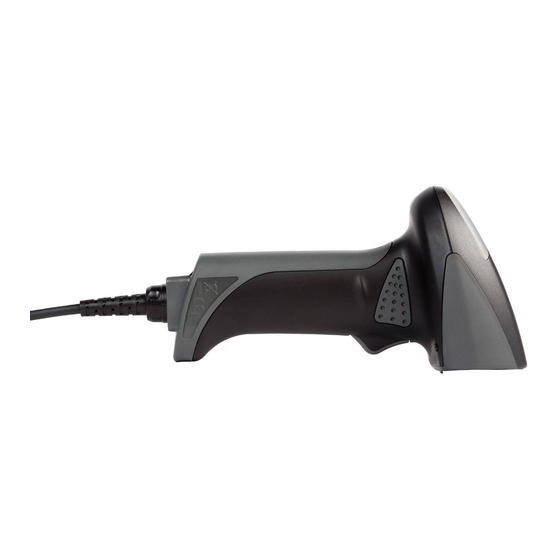

Imager scanner opi 2201
Hide thumbs
Table of Contents

Advertisement

Quick Links

Imager Scanner
OPI 2201
The OPI 2201 scanner enables smooth scanning of
linear (1D) and 2D symbologies with an autofocus
Specifications Manual
function.

Advertisement

Table of Contents
loading

Related Manuals for Opticon OPI 2201

Summary of Contents for Opticon OPI 2201

  • Page 1 Imager Scanner OPI 2201 The OPI 2201 scanner enables smooth scanning of linear (1D) and 2D symbologies with an autofocus Specifications Manual function.

  • Page 2: Document History

    Opticon assumes no liability for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages.

  • Page 3: Table Of Contents

    Opticon OPI 2201 Specifications Manual Contents 1. Abstract ............................8 2. Overview............................8 3. Physical Features ........................10 3.1. Dimensions ........................10 3.2. Weight ..........................10 4. Environmental Specifications ....................10 4.1. Operating Temperature and Humidity ................10 4.2. Storage Temperature and Humidity .................. 10 4.3.
  • Page 4 Opticon OPI 2201 Specifications Manual 8.6.1. Horizontal motion tolerance .....................22 9. Interface Specifications ......................22 9.1. RS-232C Interface Spec ....................22 9.1.1. Settings and Communication ....................22 9.1.2. Signal Level..........................23 9.1.3. Interface Circuit........................23 9.1.4. Character Format........................23 9.1.5. Communication Format......................24 9.1.6. Handshaking ..........................24 9.2.
  • Page 5 Opticon OPI 2201 Specifications Manual 13. Packaging Specifications ......................42 13.1. Individual Packaging Specification..................42 13.2. Accessory Specifications ....................42 13.3. Collective Packaging Specification ................... 43 14. Durability ........................... 44 14.1. Electrical Noise ......................... 44 14.2. Static Electricity......................... 44 14.3. Shock ..........................44 14.3.1.
  • Page 6 Opticon OPI 2201 Specifications Manual 18.2. EMC ..........................56 18.3. RoHS..........................56 19. Safety............................57 19.1. Shock ..........................57 19.2. Temperature Conditions....................57 19.3. Foreign Materials ......................57 19.4. Other ..........................57 20. Mechanical Drawing ......................... 57 21. Detailed View of the AC Adapter ..................... 57 Table of Figures Figure 1: Ambient light immunity ....................11...
  • Page 7 Opticon OPI 2201 Specifications Manual Figure 32: Auto trigger detection area ..................48 Figure 33: Auto trigger specifications ..................48 Figure 34: Mechanical drawing....................57 Figure 35: AC adapter (for input side) ..................57 Figure 36: AC adapter (for output side: DC jack)................ 57...

  • Page 8: Abstract

    The main features of the OPI 2201 are: Effective use of liquid lens: With an embedded liquid lens in the scanner, the OPI 2201 is able to read both high resolution and barcodes at large distances. Skillful laser aiming: The laser pointer makes the scanner easy to aim and consequently enhances reading performance.

  • Page 9: Supported Symbologies

    Opticon OPI 2201 Specifications Manual Supported symbologies: Linear (1D) Postal JAN/UPC/EAN, incl. add-on Chinese Post Aztec Code Korean Postal Aztec Runes Authority Code Codabar/NW-7 Codablock F Code 11 Composite Codes: GS1- 128 (incl. CC-A/B/C) Code 39 Data Matrix (ECC 0-140,...

  • Page 10: Physical Features

    Opticon OPI 2201 Specifications Manual 3. Physical Features 3.1. Dimensions W 72.0 x D 95.0 x H 175.0 mm 3.2. Weight 175 g (max.), excluding the interface cable 4. Environmental Specifications 4.1. Operating Temperature and Humidity Temperature: -20 to 50° C Humidity: 5 to 85% (no condensing, no frost) 4.2.

  • Page 11: Figure 1: Ambient Light Immunity

    Opticon OPI 2201 Specifications Manual 75° SYMBOLOGY Figure 1: Ambient light immunity Conditions Barcode Sample: OPTOELECTRONICS Test Sample. Lighting LEDs were kept on during the test. PCS: Resolution: 0.339 mm Symbology: QR code Quiet zone: 90 mm N/W ratio: 1:2.5...

  • Page 12: Controls

    6. Electrical Specifications 6.1. Configuration The OPI 2201 consists of a focus control section which emits the laser; a liquid lens drive section; a CMOS sensor; a camera section in the lens; a decode and communication section that decodes 1D and 2D symbologies data from the scanned image; an interface section, which outputs the main power supply (3.3v) conversion and the result of...

  • Page 13: Absolute Maximum Ratings

    Opticon OPI 2201 Specifications Manual 6.2. Absolute Maximum Ratings Parameter Symbol Value Unit Power supply voltage (V to GND) -0.5 to 6.5 Input voltage -0.5 to V +0.5 Power ripple 0.1Ｖp-p (10–100 kHz) 6.3. Recommended Operating Conditions Item Symbol Unit...

  • Page 14: Output Specifications

    Opticon OPI 2201 Specifications Manual Output Specifications 6.5.2. Parameter Value Output voltage 6.0 V ±5% Maximum current 2.0 A Power ripple 0.1 Vp-p max. (10-100 kHz) 7. Optical Specifications The auto-focus function is enabled after aiming the center of the barcode by the laser light. The aiming operation is activated when pressing the trigger key.

  • Page 15: Imager Output

    Opticon OPI 2201 Specifications Manual 7.2. Imager Output Item Specification Note Image data format Windows Bitmap, JPEG, TIFF Black spot may appear on the images, however, it does not affect the scanning specifications. Shades of gray 256, 16, 2 Range of output image Select in horizontal and vertical scale.
  • Page 16 Opticon OPI 2201 Specifications Manual Test Samples: 1D Symbologies Code 39 Resolution Symbology Size (mm) Digits 0.1 mm 10 x 9 0.127 11 x 10 Code 39 0.254 mm 14 x 10 1.0 mm 56 x 30 Resolution Symbology Size (mm) Digits 0.260 mm...

  • Page 17: Print Contrast Signal (Pcs)

    Opticon OPI 2201 Specifications Manual 8.1. Print Contrast Signal (PCS) 0.45 or higher (over 70% of reflectivity of space and quiet zone). Reflectance of white bar－Reflectance of black bar PCS= Reflectance of white bar Scanning performance may decline if dirt or scratches mar the optical window. Keep the optical window clean.

  • Page 18: Scan Area And Resolution

    Opticon OPI 2201 Specifications Manual 8.3. Scan Area and Resolution Depth of Field 8.3.1. The depth of field is measured from the edge of the scanner. The scanning range is within the circular arc centered on the scan origin. Figure 3: Depth of field...
  • Page 19 Opticon OPI 2201 Specifications Manual Symbology Resolution (mm) Decode Depth (mm) Code 39 15-100 0.127 15-155 0.254 15-365 90-1450 PDF417 0.127 15-160 0.254 30-375 QR Code 0.127 15-40 0.339 15-280 Data Matrix 0.169 15-120 0.339 35-275 Micro QR Code 0.212...

  • Page 20: Pitch, Skew, And Tilt

    Opticon OPI 2201 Specifications Manual 8.4. Pitch, Skew, and Tilt Pitch Angle 8.4.1. α = ±45° Skew Angle and Dead Zone 8.4.2. Skew angle: β = ±65° Tilt Angle 8.4.3. γ = 360° Figure 4: Pitch, skew, and tilt Conditions...

  • Page 21: Curvature

    Opticon OPI 2201 Specifications Manual 8.5. Curvature With 8-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥15 mm. With 13-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥20 mm. Figure 5: Curvature Conditions Barcode Sample: OPTOELECTRONICS Test Sample Distance: 120 mm from the edge of the scanner Label: PCS = 0.9, Resolution = 0.26 mm, Quiet Zone = 10 mm...

  • Page 22: Horizontal Motion Tolerance

    Max. 10cm/s Figure 6: Horizontal motion 9. Interface Specifications The OPI 2201 supports RS-232C, USB, and Wedge interfaces. RS-232C interface: Power is supplied to the scanner using an AC adapter via power supply jack. Keyboard Wedge interface: Power is supplied to the scanner using an AC adapter via power supply jack.

  • Page 23: Signal Level

    Opticon OPI 2201 Specifications Manual Signal Level 9.1.2. Signal Name RS-232C Level (V) Mark/OFF Space/ON -5 to -15 +5 to +15 -3 to -15 +3 to +15 -5 to -15 +5 to +15 -3 to -15 +3 to +15 Interface Circuit 9.1.3.

  • Page 24: Communication Format

    Opticon OPI 2201 Specifications Manual Communication Format 9.1.5. Figure 9: Communication format Handshaking 9.1.6. Select handshaking options using the menu or command listed below. Handshaking Menu/Command No handshake BUSY/READY MODEM ACK/NAK ACK/NAK NO RESPONSE a) No Handshaking The scanner attempts the communication regardless of the state of the host computer.

  • Page 25: Figure 12: Cannot Receive Command

    Opticon OPI 2201 Specifications Manual The scanner stays ON (is able to receive data) except during certain parts of the process, such as receiving data (buzzer command execution), transmitting data, and menu processing. The scanner checks the CTS line before transmitting data.

  • Page 26: Figure 14: Modem Transmit Data

    Opticon OPI 2201 Specifications Manual c) MODEM The scanner turns RTS line ON before transmitting data. Other processes are the same as BUSY/READY. Figure 14: Modem transmit data...

  • Page 27: Figure 15: Ack/Nak

    Opticon OPI 2201 Specifications Manual d) ACK/NAK After data has been transmitted, the scanner expects to receive one of the following responses from the host: ACK response—Action: The scanner completes transmission with the good- read buzzer and returns to the initial state.

  • Page 28: Figure 16: Ack/Nak-No Response

    Opticon OPI 2201 Specifications Manual e) ACK/NAK NO RESPONSE When no response from the host is received within the setting time, the scanner assumes an ACK response, and returns to the initial state without the error buzzer. The other actions are the same as ACK/NAK. The ACK/NAK timeout is 100 ms.

  • Page 29: Usb-Hid And Usb-Vcp Interface Specifications

    Opticon OPI 2201 Specifications Manual 9.2. USB-HID and USB-VCP Interface Specifications The USB interface models have two specifications: HID (Human Interface Device Class) and COM (Communication Device Class). With the USB-VCP model, a VCP (Virtual Communication Port) allows virtual serial communication and commands can be transmitted from the host computer.

  • Page 30: Cable And Connector

    Opticon OPI 2201 Specifications Manual 10. Cable and Connector 10.1. RS-232C Cable (Standard specification) Type: Straight Diameter: Φ4.8 ±0.5 mm Length: 1500 ±50 mm Weight: Approximately 90 g Figure 18: RS-232C cable Connectors 10.1.1. a) DB9 connector Figure 19: DB 9 connector...

  • Page 31: Pin Assignment

    Opticon OPI 2201 Specifications Manual Pin Assignment 10.1.2. a) DB9 Pin Assignment Signal Remarks Shield Open (not connected) Open (not connected) Open (not connected)

  • Page 32: Usb Cable

    Opticon OPI 2201 Specifications Manual 10.2. USB Cable (Standard specification) Type: Straight Diameter: Φ4.8 ±0.5 mm Length: 1500 ±50 mm Weight: Approximately 70 g Figure 20: USB cable Connector 10.2.1. a) USB "A" Connector Figure 21: USB "A" connector Pin Assignment 10.2.2.

  • Page 33: Wedge Cable

    Opticon OPI 2201 Specifications Manual 10.3. Wedge Cable (Standard specification) Type: Straight Diameter: Φ4.8 ±0.5 mm Length: 1400 ±50 mm Weight: Approximately 75 g Figure 22: Wedge interface cable Type: Branch Length: 100 ±10 mm Weight: Approximately 25 g Figure 23: Wedge branch cable...

  • Page 34: Connectors

    Opticon OPI 2201 Specifications Manual Connectors 10.3.1. a) Type of Connector Figure 24: Wedge connector Pin Assignment 10.3.2. Signal CPU DATA KEY DATA CPU CLOCK KEY CLOCK a) DOS/V HOST Side Figure 25: Front view Contact Number Signal Name CPU_DATA...

  • Page 35: Default Settings

    Opticon OPI 2201 Specifications Manual b) DOS/V KEYBOARD Side Figure 26: Front view Contact Number Signal Name KEY_DATA KEY_CLK Do not use the keyboard of host during data transmission from the scanner to host. It may cause problems with the data transmission.
  • Page 36 Opticon OPI 2201 Specifications Manual USB-HID Functions Menu labels Menu codes _ZZ_ USB-HID _SU_ _ZZ_ USB-VCP Functions Menu labels Menu codes _ZZ_ USB-VCP _C0_ _ZZ_ Wedge (with external keyboard) Functions Menu labels Menu codes _ZZ_ AT-Wedge _UB_ Keyboard layout: _KM_...

  • Page 37: Default Settings 1: Readable Codes

    Opticon OPI 2201 Specifications Manual 11.2. Default Settings 1: Readable Codes Symbology Transmit Transmit Calculate Other Code Prefix Suffix Length UPC-A — UPC-A Add-on — UPC-E — UPC-E Add-on — EAN-13 — EAN-13 Add-on — EAN-8 — EAN-8 Add-on —...
  • Page 38 Opticon OPI 2201 Specifications Manual Symbology Transmit Transmit Calculate Other Code Prefix Suffix Length Omnidirectional/ Truncated/ Stacked/Limited/ Expanded IATA — Industrial2of5 — Interleaved2of5 — Korean Postal — Code (Code 3of5) Matrix2of5 — MicroPDF417 — — PDF417 — — MSI/Plessey —...

  • Page 39: Default Settings 2: Read Options, Trigger, Buzzer

    Opticon OPI 2201 Specifications Manual 11.3. Default Settings 2: Read Options, Trigger, Buzzer Item Default Setting Setting the number of characters Fixed length OFF all codes Read mode Single read Multiple label read (1D barcode only) Disable NW-7 intercharacter gap check...

  • Page 40: Default Settings 4: Keyboard Communication Settings-Wedge

    Opticon OPI 2201 Specifications Manual 11.5. Default Settings 4: Keyboard Communication Settings—Wedge Parameter “SU” and “UB” Default Setting Transmit Enter key output as a suffix Enable Transmit Tab key output as a suffix Disable Transmit Arrow right key output as a suffix...

  • Page 41: Serial Number And Labeling

    Opticon OPI 2201 Specifications Manual 12. Serial Number and Labeling The serial number shown below is affixed to the scanner. Additional labels on both sides of the scanner show compliance with the standards of Japan, Europe, and America. Figure 27: Serial number diagram...

  • Page 42: Packaging Specifications

    13.2. Accessory Specifications The following table shows a list of accessories for each model. Model AC Adaptor Wedge Branch (SFP0602000P-PSE) Cable OPI 2201-LD RS-232C OPI 2201-LD USB OPI 2201-LD Wedge Four types of conversion plugs are included with the AC adapter.

  • Page 43: Collective Packaging Specification

    OPI 2201 Specifications Manual 13.3. Collective Packaging Specification The following figure shows an example of collective packaging for the OPI 2201 RS-232C model. Figure 29: Collective packaging Note: The “RO” mark labeled on the package tray or package box guarantees that the...

  • Page 44: Durability

    Opticon OPI 2201 Specifications Manual 14. Durability 14.1. Electrical Noise No malfunction occurred when sinusoidal electrical noise (50 Hz–100 kHz, < 0.1 Vp-p) was added to the power supply line. Withstand voltage: AC 1500 V/ per 60 seconds, 10mA or less Insulation resistance: DC 500 V, 2 MΩ...

  • Page 45: Drop Test (With Individual Packaging)

    Opticon OPI 2201 Specifications Manual Drop Test (with individual packaging) 14.3.2. No malfunction occurred after the following drop test. Drop Test: Drop an individually packaged scanner from a height of 150 cm onto a concrete floor once on its 1 corner, 3 edges, and 6 sides (10 total drop tests).

  • Page 46: Reliability

    Opticon OPI 2201 Specifications Manual Figure 31: Cable strength 15. Reliability MTBF (Mean Time Between Failures) of this product except for the laser diode, the CMOS sensor, and the liquid lens, is 40,000 hours. Life cycle of the laser diode, the CMOS sensor, and the liquid lens 10,000 hours (each).

  • Page 47: Trigger And Read Options

    Opticon OPI 2201 Specifications Manual 16. Trigger and Read Options The OPI 2201has read and trigger settings as follows: 16.1. Trigger Modes Disabled: When this option is selected, the reader will stay on all the time. Enabled: After receiving a trigger signal, the barcode reader will turn on and the read cycle starts.

  • Page 48: Auto Trigger Options

    Opticon OPI 2201 Specifications Manual 16.3. Auto Trigger Options Auto Trigger Overview 16.3.1. To capture a barcode, the scanner uses ambient light to detect differences in contrast between the light and dark areas of a barcode. If the scanner is in auto trigger mode and it detects differences in movement, it begins scanning.

  • Page 49: Image Capture Options

    Opticon OPI 2201 Specifications Manual 16.4. Image Capture Options Image capture mode is used to obtain a clear image from the scanned barcode by adjusting the brightness. The brightness is adjusted by changing the gamma configuration. When the camera is set to image capture mode, it adjusts the focus automatically when capturing images.

  • Page 50: Trigger And Read Settings

    Opticon OPI 2201 Specifications Manual 17. Trigger and Read Settings 17.1. Read Time Settings Read Time 17.1.1. This option allow you to configure the time period that the reader is ON after the trigger switch is pressed or after auto trigger mode is enabled.

  • Page 51: Multiple Read Reset Time

    Opticon OPI 2201 Specifications Manual Multiple Read Reset Time 17.1.2. This option allows you to configure the number of frames during which the scanner must be pointed away from the label before it can decode the same label again. To configure the multiple read reset time, scan “ZZ”, “Ax”, and “ZZ”.

  • Page 52: Auto Trigger Settings

    Opticon OPI 2201 Specifications Manual 17.2. Auto Trigger Settings Enable/Disable Settings 17.2.1. Use the following settings to enable or disable the auto trigger. (Auto trigger is disabled by default). To enable auto trigger scan “ZZ”, “+I” and “ZZ” in that order or use the 2D code setting.

  • Page 53: Auto Trigger Sensitivity Settings

    Opticon OPI 2201 Specifications Manual Auto Trigger Sensitivity Settings 17.2.2. This option allows you to configure the threshold level of the scanner to detect the dark pixels and light pixels. Note: Please confirm the background and the operating environments (ambient light, etc) of the barcode when carrying out the following configuration.

  • Page 54: Setting Image Capture Mode

    Opticon OPI 2201 Specifications Manual 17.3. Setting Image Capture Mode Use the following settings to change the image capture mode. (Code reader mode is enabled by default). To set the scanner to image capture mode, scan “ZZ”, ”D7I”, ”D7M”, and ”ZZ” in that order or use the 2D code setting.

  • Page 55: Configuring Gamma Values

    Opticon OPI 2201 Specifications Manual Configuring Gamma Values 17.3.1. Gamma (γ) adjusted values can be set from 1.0 (OFF) to 1.9. The higher the value, the brighter the captured image. In the imager capture mode, γ = 1.3 is the default gamma setting.

  • Page 56: Regulatory Compliance

    Opticon OPI 2201 Specifications Manual 18. Regulatory Compliance 18.1. Laser / LED Safety The OPI 2201 is considered as a class 2M laser/LED product. Laser / LED Safety 18.1.1. The scanner emits laser beams. JIS C6802: 2005: Laser class 2 IEC 825-1/EN 60825-1: Laser class 2 FDA CDRH Laser class II.

  • Page 57: Safety

    The scanner may not perform properly in environments when placed near a flickering light, such as a computer monitor, television, etc. Opticon shall not be held responsible for any damages caused by using an AC adapter not provided by Opticon.

  • Page 58: Mechanical Drawing

    Opticon OPI 2201 Specifications Manual 20. Mechanical Drawing Figure 34: Mechanical drawing...

  • Page 59: Detailed View Of The Ac Adapter

    Opticon OPI 2201 Specifications Manual 21. Detailed View of the AC Adapter SFP0602000P-PSE Figure 35: AC adapter (for input side) Figure 36: AC adapter (for output side: DC jack) Note: The polarity of the center of DC jack is plus (+).
