Imager Scanner
OPI 2002
The OPI 2002 is a handheld 2D scanner with CMOS
Specifications Manual
imager.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPI 2002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Opticon OPI 2002

Summary of Contents for Opticon OPI 2002

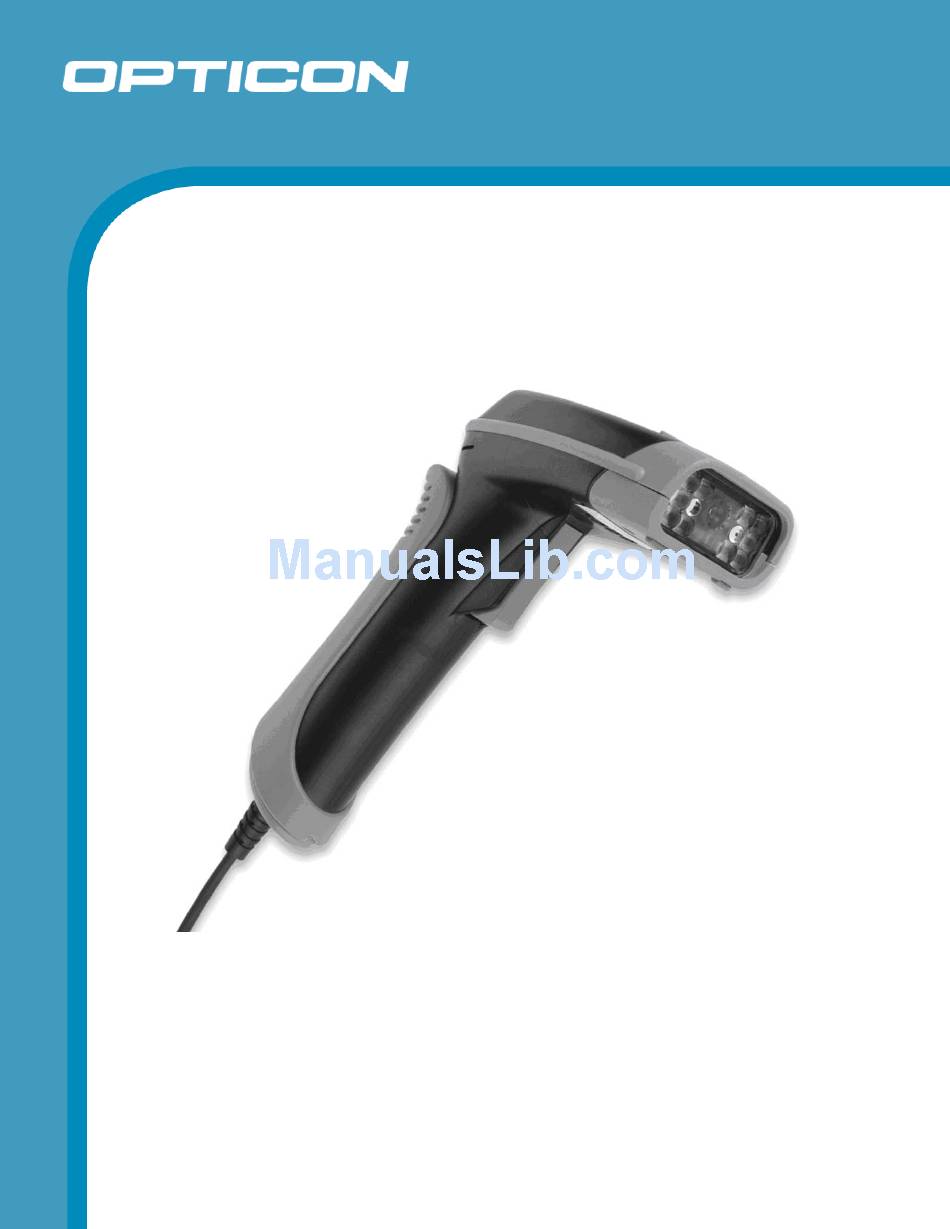

  • Page 1 Imager Scanner OPI 2002 The OPI 2002 is a handheld 2D scanner with CMOS Specifications Manual imager.

  • Page 2: Document History

    Opticon assumes no liability for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages.

  • Page 3: Table Of Contents

    Opticon OPI 2002 Specifications Manual Contents 1. Abstract ............................7 2. Overview............................7 3. Physical Features ........................8 3.1. Dimensions ......................... 8 3.2. Weight ..........................8 4. Environmental Specifications ....................8 4.1. Operating Temperature and Humidity ................. 8 4.2. Storage Temperature and Humidity ..................8 4.3.
  • Page 4 Opticon OPI 2002 Specifications Manual 9.1. RS-232C Interface Spec ....................19 9.1.1. Settings and Communication ....................19 9.1.2. Signal Level..........................20 9.1.3. Interface Circuit........................20 9.1.4. Character Format........................21 9.1.5. Communication Format......................21 9.1.6. Handshaking ..........................21 9.2. USB Interface Specifications..................... 27 9.2.1. Settings ............................27 9.2.2.
  • Page 5 Opticon OPI 2002 Specifications Manual 14.2. Static Electricity......................... 38 14.3. Shock ..........................38 14.3.1. Drop Test (without packaging) ....................38 14.3.2. Drop Test (with individual packaging)..................39 14.4. Vibration Strength ......................39 14.5. Dust and Drip Proof......................39 14.6. Cable Strength ........................39 14.7.
  • Page 6 19.2. AC Adapter........................54 Table of Figures Figure 1: Ambient light immunity ....................9 Figure 2: OPI 2002 configuration....................10 Figure 3: Scan area ........................16 Figure 4: Depth of field ....................... 17 Figure 5: Pitch, skew, and tilt...................... 18 Figure 6: Curvature........................

  • Page 7: Abstract

    1. Abstract This manual provides specifications for the OPI 2002 handheld imager scanner. 2. Overview The OPI 2002 scanner enables smooth scanning of linear (1D) and 2D barcode symbologies. The main features of the OPI 2002 are: • High-speed, ultra-sensitive megapixel CMOS image sensor. The customized CMOS image sensor allows the scanner to achieve a frame rate of 30 fps.

  • Page 8: Physical Features

    Opticon OPI 2002 Specifications Manual Supported symbologies: Linear (1D) Postal Code JAN/UPC/EAN, incl. add-on Chinese Post Aztec Code Codabar/NW-7 Korean Postal Authority Code Aztec Runes Code 39 Composite Codes Code 93 Data Matrix (ECC 0-140, ECC200) Code 128 Maxi Code...

  • Page 9: Ambient Light Immunity

    Power supply voltage 6.0 V Tested the OPI 2002 with Code 39 and PDF417 test samples (resolution = 0.254 mm). Scanning may fail in certain area as a result of specular reflection. Note: α, β and γ respectively represent pitch, skew and tilt. Please see section 7 for how these values are defined.

  • Page 10: Controls

    • A power supply section The USB models of the OPI 2002 operate on bus power and those models do not require adaptors for the power supply. RS-232C and Wedge models of the OPI 2002 operate on the power supply (DC 6.0 V) supplied through a dedicated adaptor.

  • Page 11: Electrical Characteristics

    Main power supply ON: 5 mA max. Note: It is possible to use the keyboard even when the main power supply is turned OFF. However, if the main power supply is off, the OPI 2002 cannot be used. 6.5. AC Adaptor Specifications (RS-232C and Wedge Models) Input Specifications 6.5.1.

  • Page 12: Output Specifications

    Opticon OPI 2002 Specifications Manual Output Specifications 6.5.2. Parameter Value Output voltage 6.0 V ±5% / output current: 0 to 0.75A Power ripple 120 m Vp-p max. (rated load) Short-circuit protection Available 7. Optical Specifications 7.1. Imager Scanning Parameter Specification(s)

  • Page 13: Technical Specifications

    Opticon OPI 2002 Specifications Manual 8. Technical Specifications The conditions for technical specifications are as follows, unless otherwise specified in each section. Conditions Ambient temperature Room temperature (5 to 35º C) and humidity: Room humidity (45% to 85% RH) Ambient light:...

  • Page 14: Test Samples: 2D Symbologies

    Opticon OPI 2002 Specifications Manual 8.2. Test Samples: 2D Symbologies PDF417 Resolution Error Correction Size (mm) Characters 0.339 mm Level-4 35 x 22 0.254 mm Level-4 26 x 16.5 0.127 mm Level-4 13 x 8 QR Code: Model 2 Resolution...

  • Page 15: Print Contrast Signal (Pcs)

    Opticon OPI 2002 Specifications Manual Composite barcode: RSS Stacked CCB Resolution Error Correction Size (mm) Characters 0.254 mm Standard 14 x 11 16+18 8.3. Print Contrast Signal (PCS) 0.45 or higher (over 70% of reflectivity of space and quiet zone).

  • Page 16: Scan Area And Resolution

    Opticon OPI 2002 Specifications Manual 8.5. Scan Area and Resolution Scan Area 8.5.1. The scannable area depends on the barcode type (PCS, resolution, length, etc.) and the direction of the barcode surface. However, the barcode should be set within the following area.

  • Page 17: Depth Of Field

    Opticon OPI 2002 Specifications Manual Depth of Field 8.5.2. The depth of field is measured from the edge of the scanner. The scanning range is within the circular arc centered on the scan origin. Figure 4: Depth of field Symbology...

  • Page 18: Pitch, Skew, And Tilt

    Opticon OPI 2002 Specifications Manual 8.6. Pitch, Skew, and Tilt Pitch angle α = ±60° Skew angle β = ±65° Tilt angle γ = 360° Note: There are some areas in which decoding fails due to specular reflection. Figure 5: Pitch, skew, and tilt...

  • Page 19: Curvature

    Distance 100 mm from the edge of the scanner Angle Skew β = +15° 9. Interface Specifications The OPI 2002 supports RS-232C, USB, and Wedge interfaces. 9.1. RS-232C Interface Spec 9600 bps to 115.2 kbps Settings and Communication 9.1.1. Reading the menu barcodes in section 11.1 can set the RS-232C interface default.

  • Page 20: Signal Level

    Opticon OPI 2002 Specifications Manual Parameter [U2] setting Baud rate 9600 bps Start/stop bits 1 bit Data bits 8 bits Parity bits No parity Handshaking No handshake Flow control time out Indefinitely Communication settings can be configured by scanning corresponding menu barcodes.

  • Page 21: Character Format

    Opticon OPI 2002 Specifications Manual Character Format 9.1.4. Use the same format for sending and receiving data. Figure 8:Character format Communication Format 9.1.5. Figure 9: Communication format Handshaking 9.1.6. Select handshaking options using the menu or command listed below. Handshaking...

  • Page 22: Figure 11: Busy/Ready Communication

    Opticon OPI 2002 Specifications Manual b) BUSY/READY The scanner and the host computer notify each other of their state and whether they can receive data with BUSY/READY through an RTS line. They can communicate state to each other through a CTS line when connected as in the following figure.

  • Page 23: Figure 12: Cannot Receive Command

    Opticon OPI 2002 Specifications Manual Figure 12: Cannot receive command CTS, TXD signal timing When the CTS line (RTS signal of the host) is turned OFF while sending a TXD signal, the scanner transmits one or two characters and waits. When the CTS signal is turned ON while transmitting a character, those characters will be transmitted.

  • Page 24: Figure 14: Modem Control

    Opticon OPI 2002 Specifications Manual c) MODEM The scanner turns RTS line ON before transmitting data. Other processes are the same as BUSY/READY. Figure 14: Modem control...

  • Page 25: Figure 15: Ack/Nak

    Opticon OPI 2002 Specifications Manual d) ACK/NAK After data has been transmitted, the scanner expects to receive one of the following responses from the host: • ACK response—Action: The scanner completes transmission with the good-read buzzer and returns to the initial state.

  • Page 26: Figure 16: Ack/Nak-No Response

    Opticon OPI 2002 Specifications Manual e) ACK/NAK NO RESPONSE When no response from the host is received within the setting time, the scanner assumes an ACK response, and returns to the initial state without the error buzzer. The other actions are the same as ACK/NAK.

  • Page 27: Usb Interface Specifications

    Opticon OPI 2002 Specifications Manual 9.2. USB Interface Specifications Device class: High-powered, bus-powered function. This interface does not require an AC adaptor. Speed: Full-speed USB (12 Mbps) Interface: USB-HID (Human Interface Device) and USB-VCP (Virtual Communication Port) • Japanese Kanji data or images cannot be transmitted via this USB-HID interface.

  • Page 28: Cable And Connector

    Opticon OPI 2002 Specifications Manual 10. Cable and Connector 10.1. RS-232C Cable (Standard specification) Figure 18: RS-232C cable Pin Assignment 10.1.1. a) DB9 Pin Assignment Default: check if values commit; if not, adapt to new information. Pin No. Signals Remarks...

  • Page 29: Usb Cable

    Opticon OPI 2002 Specifications Manual 10.2. USB Cable (Standard specification) Figure 19: USB cable USB Pin Assignment 10.2.1. Figure 20: USB pin assignment 10.3. Wedge Cable (Standard specification) Figure 21: Wedge standard cable...

  • Page 30: Wedge Pin Assignment

    Opticon OPI 2002 Specifications Manual Wedge Pin Assignment 10.3.1. Figure 22: Wedge pin assignment 11. Default Settings 11.1. Set Default Interface Scan the following menu barcodes to return to the default settings. RS-232C Functions Menu labels Menu codes _ZZ_ _U2_...

  • Page 31: Default Settings 1: Readable Codes

    Opticon OPI 2002 Specifications Manual USB-VCP Functions Menu labels Menu codes _ZZ_ USB-VCP _ZZ_ Wedge (with external keyboard) Functions Menu labels Menu codes _ZZ_ AT-Wedge _UB_ _ZZ_ 11.2. Default Settings 1: Readable Codes Symbology Read Transmit Transmit Calculate Other Code...
  • Page 32 Opticon OPI 2002 Specifications Manual Symbology Read Transmit Transmit Calculate Other Code Prefix Suffix Length (ECC0-140) Data Matrix — — (ECC200) GS1-128 — (EAN/UCC-128) GS1 DataBar — (RSS) Limited GS1 DataBar — (RSS) (all, incl. CC-A/B); Omnidirectional/ Truncated/ Stacked/Limited/ Expanded IATA —...

  • Page 33: Default Settings 2: Read Options, Trigger, Buzzer

    Opticon OPI 2002 Specifications Manual 11.3. Default Settings 2: Read Options, Trigger, Buzzer Item Default Setting Setting the number of characters Fixed length OFF all codes Read mode Single read Multiple column read Disable NW-7 intercharacter gap check Enable intercharacter gap check...

  • Page 34: Default Settings 4B: Keyboard Communication Settings-Usb-Hid

    Opticon OPI 2002 Specifications Manual 11.7. Default Settings 4B: Keyboard Communication Settings—USB-HID Parameter “SU” Default Setting Scan code 11.8. Default Settings 4C: Keyboard Communication Settings—Wedge Parameter “UB” Default Setting Scan code AT wedge 12. Serial Number The serial number shown below is affixed to the scanner.

  • Page 35: Packaging Specifications

    Opticon OPI 2002 Specifications Manual 13. Packaging Specifications 13.1. Individual Packaging Specification Put the scanner in a protective foam bag and place it in an individual packing box. Figure 24: Individual packaging...

  • Page 36: Accessory Specifications

    13.2. Accessory Specifications The following table shows a list of accessories for each model. Model AC adaptor Cable (GP-ACGN13x-K4-2) (B04061-300) OPI 2002-LD RS-232C OPI 2002-LD USB OPI 2002-LD Wedge AC adaptor model names: • AC adaptor for EU region: GP-ACGN13T-K4-2 •...

  • Page 37: Collective Packaging Specification

    Opticon OPI 2002 Specifications Manual 13.3. Collective Packaging Specification Figure 25: Collective packaging Note: The “RO” mark labeled on the package tray or package box guarantees that the applicable product has passed our test of RoHS restrictions compliance (the restriction of the use of certain hazardous substances in electrical and electronic equipment, 2002/95 EC).

  • Page 38: Durability

    Opticon OPI 2002 Specifications Manual 14. Durability 14.1. Electrical and Power Line Noise Withstand voltage AC 1500 V/60 s, 10 mA or less Insulation resistance 2 MΩ or higher (DC 500 V) Current leakage 250 μA or less / AC 250 V 60 Hz Power line noise immunity ±1 kV and higher...

  • Page 39: Drop Test (With Individual Packaging)

    Opticon OPI 2002 Specifications Manual Drop Test (with individual packaging) 14.3.2. No malfunction occurred after the following drop test. Drop Test: Drop an individually packaged scanner from a height of 150 cm onto a concrete floor once on its 1 corner, 3 edges, and 6 sides (10 total drop tests).

  • Page 40: Cable Bending Test

    Opticon OPI 2002 Specifications Manual 14.7. Cable Bending Test No malfunction occurred after the following cable bending test. Add a load of 4.9 N (500 g) to a cable then bend it at an angle of 60 degrees to both right and left.

  • Page 41: Trigger And Read Options

    OPI 2002 Specifications Manual 16. Trigger and Read Options The OPI 2002 has optional read and trigger settings as follows: 16.1. Trigger Modes Disabled: When this option is selected, the reader will stay on all the time. Enabled: After receiving a trigger signal, the barcode reader will turn on and the read cycle starts.

  • Page 42: Auto Trigger Overview

    Opticon OPI 2002 Specifications Manual 16.4. Auto Trigger Overview In auto trigger mode, the scanner captures a barcode image using the ambient light. The scanner detects the dark pixels and light pixels in the detection area. The scanning operation stops within the designated duration.

  • Page 43: Auto Trigger Specifications

    Opticon OPI 2002 Specifications Manual 16.5. Auto Trigger Specifications Auto trigger is enabled when inserting a gray-colored paper on a black backing paper. Trigger is also enabled when inserting a black-colored paper on a gray backing paper. Conditions Paper used for the test...

  • Page 44: Read Time Options

    Opticon OPI 2002 Specifications Manual Read Time Options 16.6.1. This option allow you to configure the time period that the reader is ON after the trigger switch is pressed or after auto trigger mode is enabled. To configure the read time, scan “ZZ”, “Yn”, and “ZZ”.

  • Page 45: Multiple Read Reset Time Options

    Opticon OPI 2002 Specifications Manual Multiple Read Reset Time Options 16.6.2. This option allows you to configure the number of frames during which the scanner must be pointed away from the label before it can decode the same label again.

  • Page 46: Auto Trigger Sensitivity Options

    Opticon OPI 2002 Specifications Manual Auto Trigger Sensitivity Options 16.6.3. This option allows you to configure the threshold level of the scanner to detect the dark pixels and light pixels. To configure auto trigger sensitivity options, scan “ZZ”, “Mx”, and “ZZ”.

  • Page 47: Auto Trigger Stand Detection Options

    Opticon OPI 2002 Specifications Manual Auto Trigger Stand Detection Options 16.6.5. This option enables auto trigger automatically when the scanner is inserted into the designated stand. If the scanner is removed from the stand, auto trigger is disabled and the scanner must be triggered manually.

  • Page 48: Auto Trigger Delay After Stand Detection Options

    Opticon OPI 2002 Specifications Manual Auto Trigger Delay After Stand Detection Options 16.6.6. To configure the delay in the initiation of auto trigger operation after the scanner has been inserted into the stand, scan “ZZ”, “*6”, “Qn”, and “ZZ” where Qn is the delay time which can be configured from 1 to 15 seconds (n=1 to 15).
  • Page 49 Opticon OPI 2002 Specifications Manual Functions Delay Menu labels Direct Input Menu codes Numeric labels _Q1_ 13 seconds Q1 + Q3 _Q3_ 14 seconds _Q1_ Q1 + Q4 _Q4_ _Q1_ 15 seconds Q1 + Q5 _Q5_ _ZZ_ b) Stand Removal Delay To configure the delay for when the scanner returns to manual trigger operation after the scanner is removed from the stand, scan “ZZ”, “*7”, “Qn”,...

  • Page 50: Figure 30: Auto Trigger Flow

    Opticon OPI 2002 Specifications Manual Figure 30: Auto trigger flow...

  • Page 51: Regulatory Compliance

    Opticon OPI 2002 Specifications Manual 17. Regulatory Compliance 17.1. LED Safety All LED-based products are LED class 1 and are safe under reasonably foreseeable operating conditions. Do not stare into the beam. • JIS C6802: 2005: Class 1 • IEC 60825-1+A2: 2001 Class 1 17.2.

  • Page 52: Safety

    Opticon OPI 2002 Specifications Manual 18. Safety Handle this product carefully. Do not deliberately subject it to any of the following. 18.1. Shock Do not throw or drop the scanner. Do not drop or put heavy items on this product or its cable.

  • Page 53: Mechanical Drawing

    Opticon OPI 2002 Specifications Manual 19. Mechanical Drawing 19.1. Imager Scanner Dimensions: W 55.33 x D 128.23 x H 149.18 mm Figure 31: Mechanical drawing of imager scanner...

  • Page 54: Ac Adapter

    Opticon OPI 2002 Specifications Manual 19.2. AC Adapter Figure 32: Mechanical drawing of AC adapter...
