Removal; Figure 2-14 Nvsimm (Battery Side) - Sun Microsystems SPARCserver 1000 Manual

2
Type A
1
34 68
35
1 34 35 68

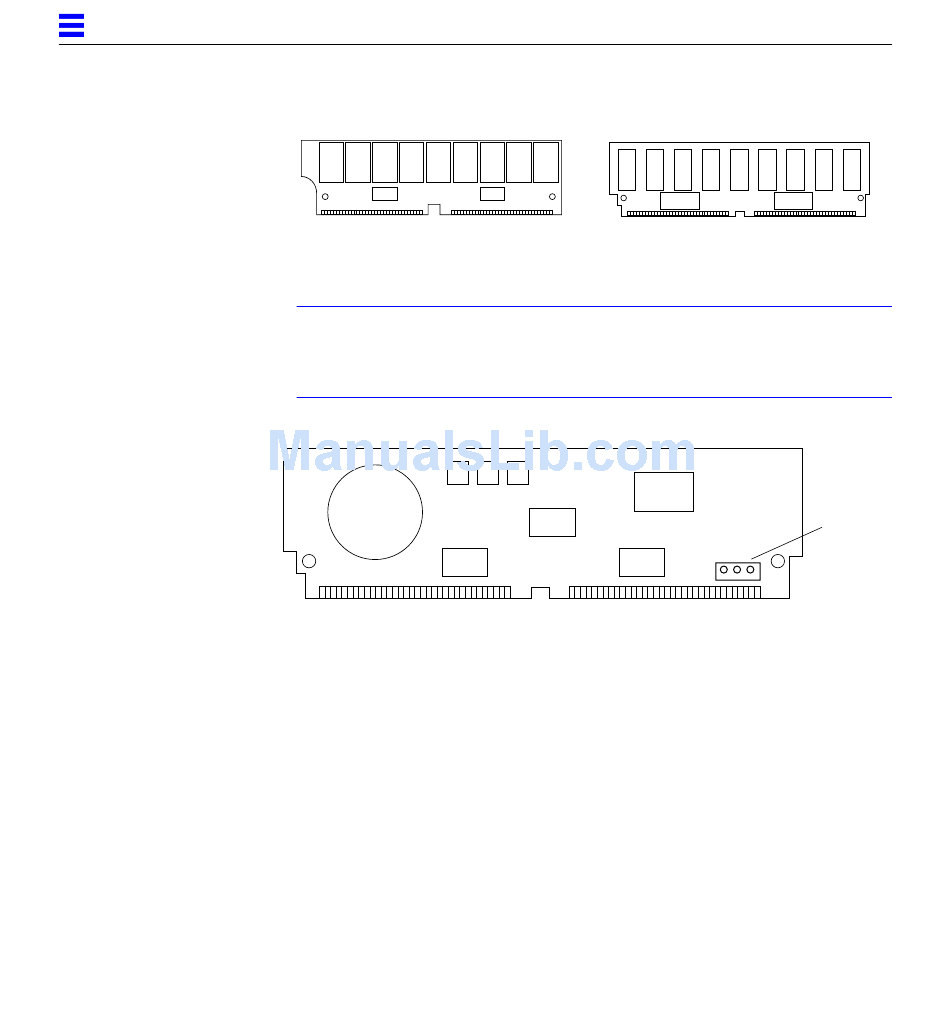

Figure 2-13 SIMMs
Note – The two SIMMs shown in Figure 2-13 differ in appearance only because
they are made by different manufacturers, and not because of different
memory capacities. Each SIMM can hold either 8 or 32 Mbytes (depending on
whether 1 Mbit or 4 Mbit DRAMs are used.)
Battery
Type C Jumper
1 34 35 68

Figure 2-14 NVSIMM (Battery Side)

2.6.1 Removal

To remove a SIMM from a system board:
1. Locate the faulty SIMM by matching the location number displayed by
POST with the J-number shown in Figure 2-15.
2-18 SPARCserver 1000 System Board Manual—October 1994
